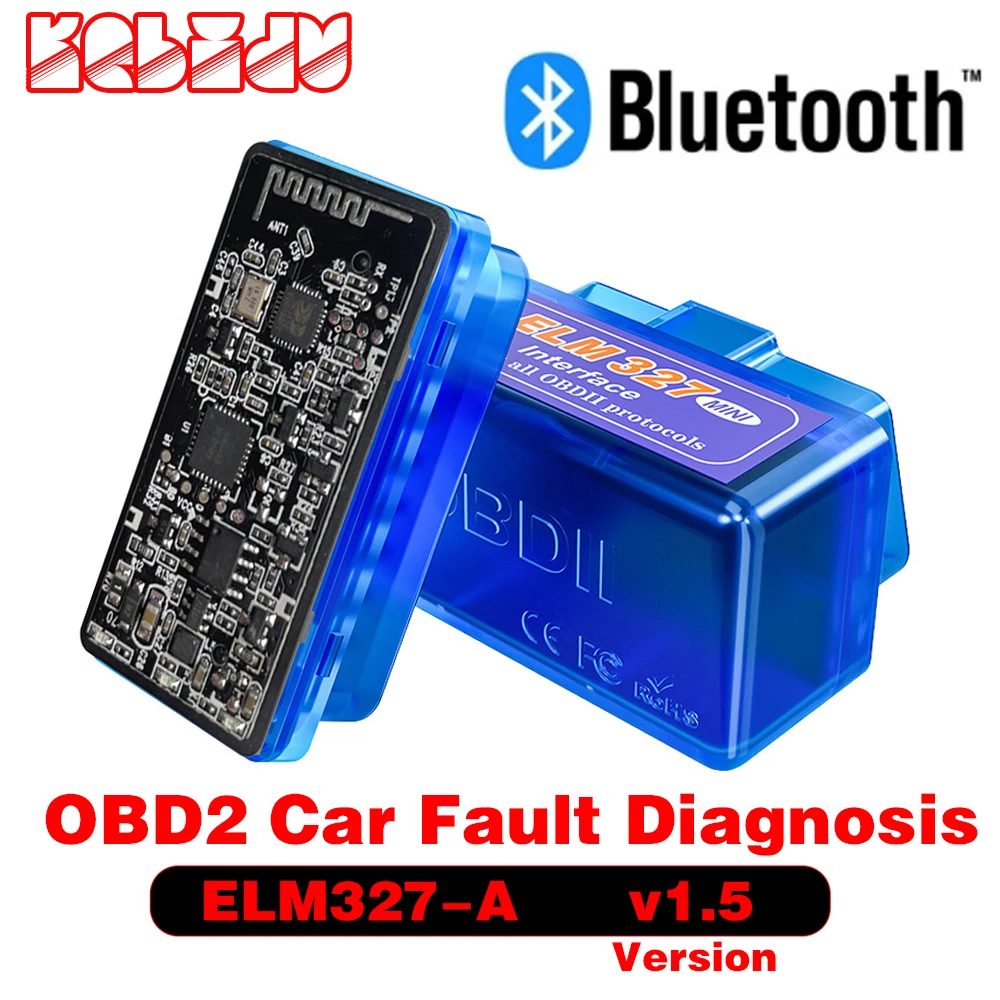

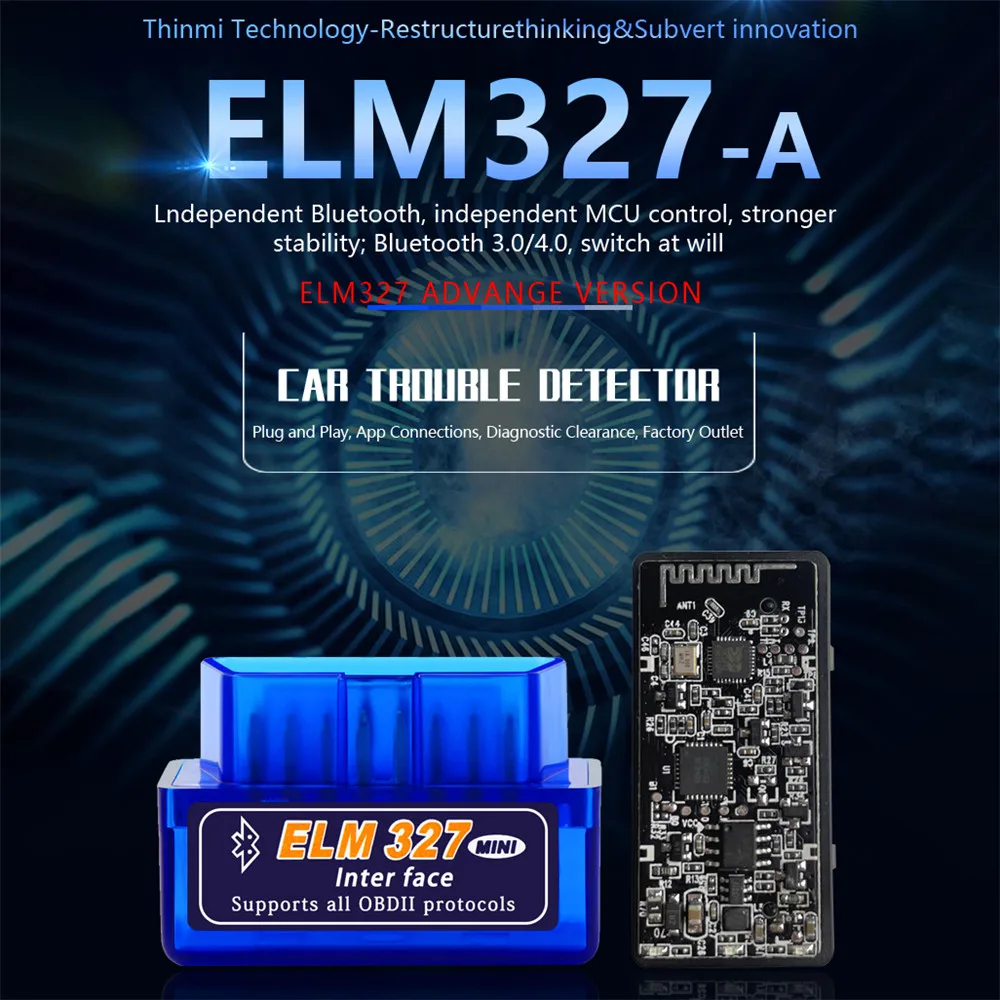

New OBD V2.1 V1.5 mini ELM327 OBD2 Bluetooth Auto Scanner OBDII 2 Car ELM 327 Tester Diagnostic Tool for Android Windows Symbian

Warm Tips:Please confirm1 boardor 2 board before purchasing!

If any questions, please feel free to contact with the seller, please never open a dispute before contact with the seller. Let's keep good business relationship. Thanks!!

Features:
The newly developed high-quality wireless scan tool, support all OBD2 protocols.
Work with all OBD2 compliant vehicles.
Enable to read diagnostic trouble codes.
Small bluetooth interface with a 16 pin socket.
Support different kinds of devices to use this scan tool:
Android system phones(hardware V4.1-4.3), Symbian system phones,
Windows XP and WIN7 32bite computers.
With a switch to turn on/ off these indicator lights.

Functions:
Read diagnostic trouble codes, both generic and manufacturer specific, and display their meaning (over 3000 generic code definitions
in the database).
Display current sensor data, including:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle Speed
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure

Packing List:
1 * ELM327 OBD2 bluetooth diagnostic interface V1.5

Protocols:

for V1.5:
1. SAE J1850 PWM (41.6K baud)
2.SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud initialization, 10.4 kilo baud)
4. ISO14230-4 KWP (5 baud initialization, 10.4 kilo baud)
5. ISO14230-4 KWP (quick start, 10.4 Kbaud)
6. ISO15765-4 CAN (11-digit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11-digit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

FOR V2.1:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)


*default settings(user adjustable)
Output protocol: RS232
Baud rate: 38400
Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power

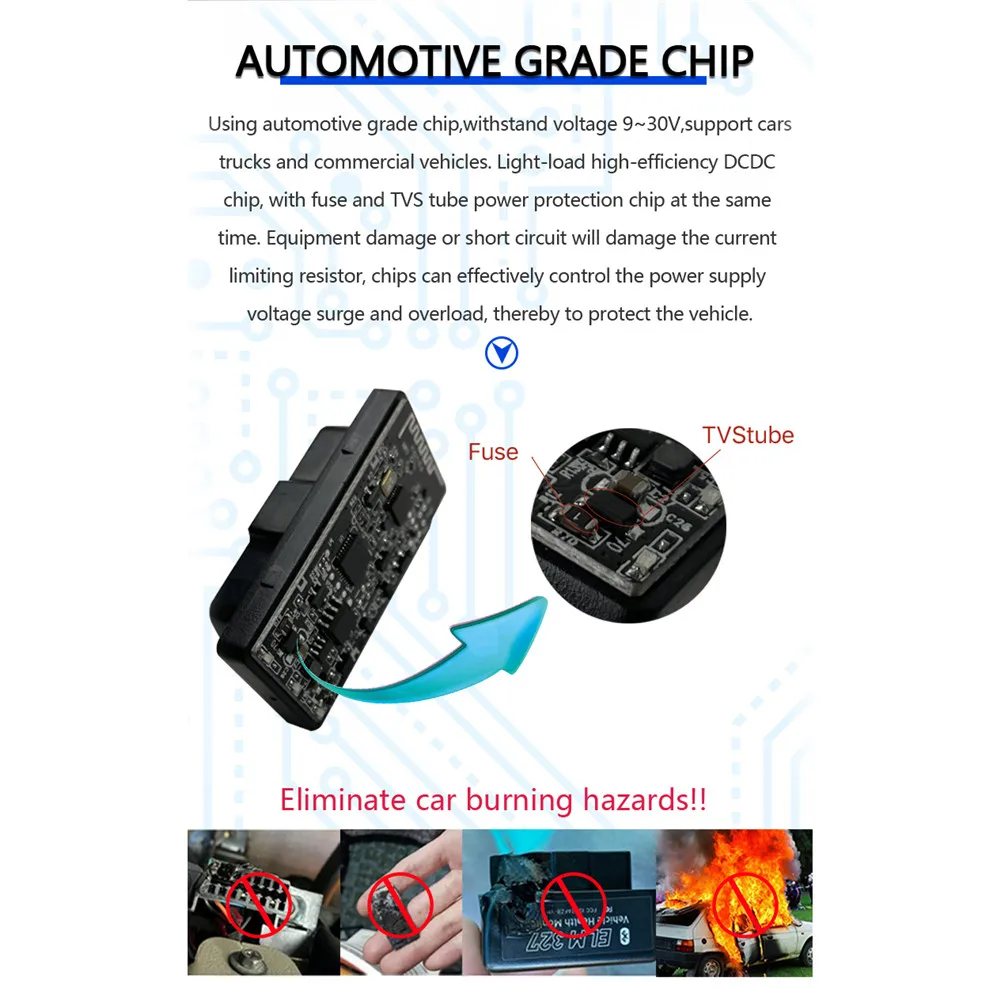

Operating voltage: 12V, internal protection from short circuits/
overvoltages

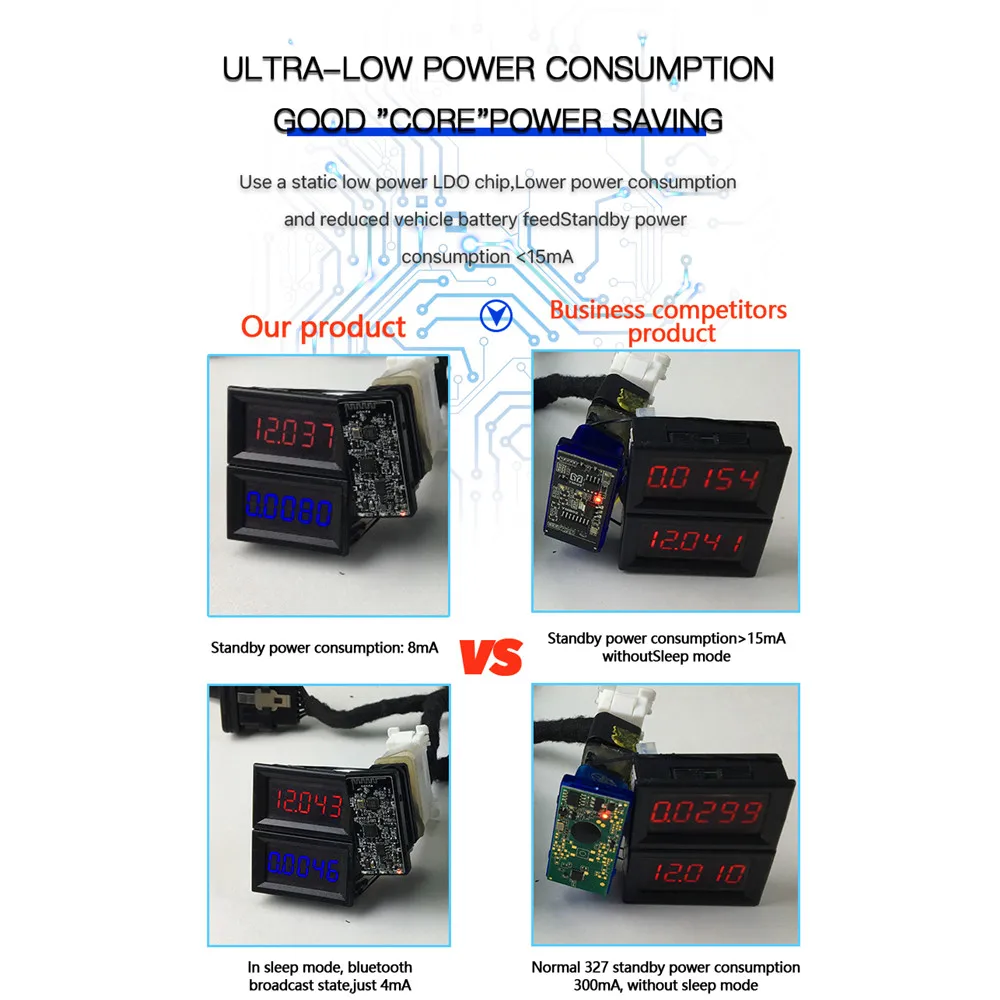

Nominal idle current: 45 mA

How to get the suitable APP software ?

pls Scan QR CODE here ,and then pls choose the right app for your phone system

WIFI Version For IOS system:

Download APP Auto Doctor From APP store:

HOW To connect the phone and use the ELM327 WIFI Version?

1. Open WIFI switch
2.Find ''V-LINK''Click to connect
3.open APP, click ''Connection'', connect the car with WIFI

For Android(BT ELM327):

You Can Download Auto doctor or Torque

HOW To connect the phone and use the ELM327 BT Version?

A: On android phone :
1. Open the ''setting'' of your android,and search BT from ELM327:OBDll, then input password 1234.
2. Open your Torque--etting---OBD2 Adapter Settins---Connection Type---BT---back---Choose
BT Device---OBDII[AA:BB:CC:11:22:33].

-------- FAQ:

Blue Color

Q&A:

Q:What version of this ELM327?
A: 100% Firmware V1.5,Latest Software is V2.1

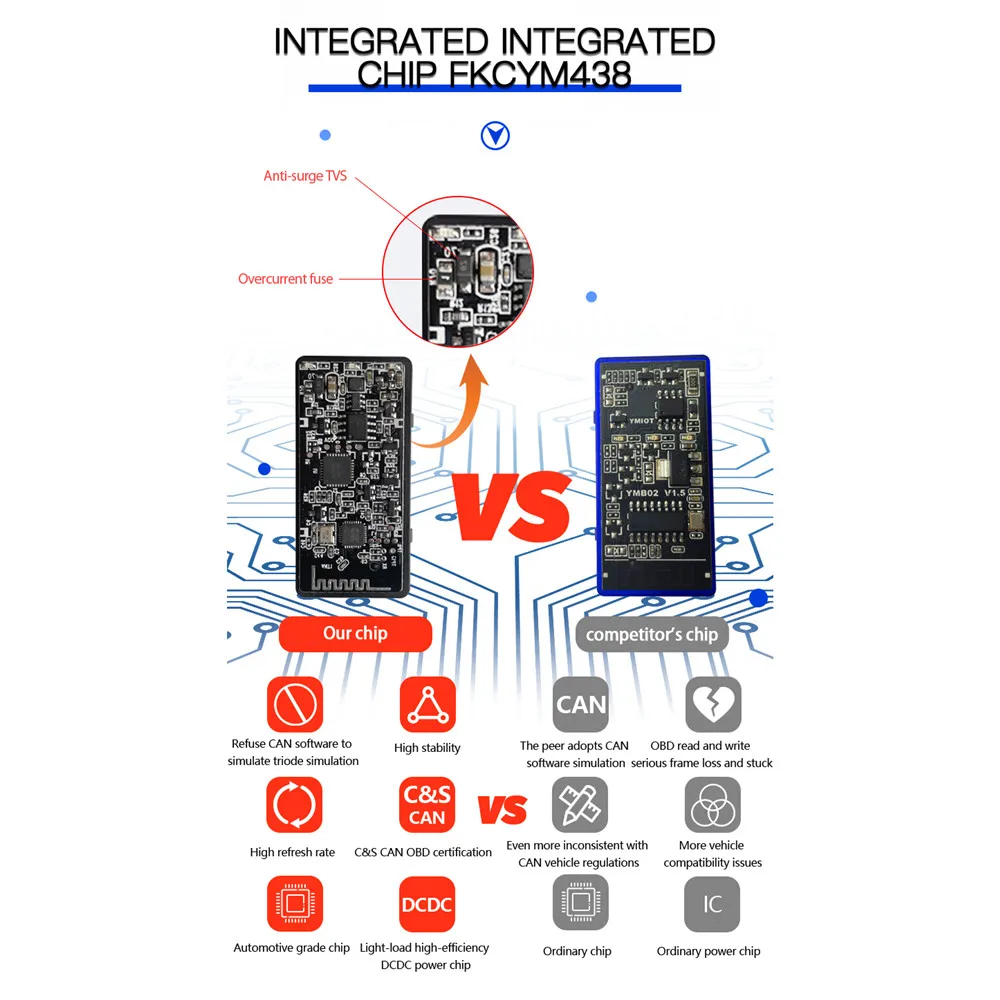

Q:What Chip of this hardware V1.5?
A:Best Chip

Q:How many language of this device software?
A:Scanmaster support language: Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

Q:Does it supports Russian Language?
A:Yes,but you must download the APP which is Russian language by yourself.

Q:Does it supports WIFI and iOS?
A:No,it only supports bluetooth android torque and windows XP/WIN7 32bits

Q:Does Hardware V1.5 better than V2.1?
A:Yes,Hardware V1.5 is more stable than V2.1 ,also from many buyer feedback,V1.5 supports more protocols and car brand .

Q:Does this device works diesel car or truck?
A:No,it works only gasoline cars ,supports most OBDII Standard protocols.

Q:How can i know if this device works my car or not ?
A:this ELM327 works most gasoline car brand model,but we can not sure if your car supported,we have no test each car .You can buy one to test. (If you dont sure and also do not want to buy one to try ,please do not buy ,we do not want any negative feedback about no supports your car else ! thanks in advance .)

Q:How is the step for Run software on android phone?
A:Open your android phone software--Setting--Connecting Type--OBD2 Adapter Setting--Bluetooth--Choose Bluetooth Device--OBDII.

Q:My android phone connect to my old ELM327 before ,do i need delete previous informations?
A:Yes,please delete all old informations ,so make sure you can connect your new ELM327.
