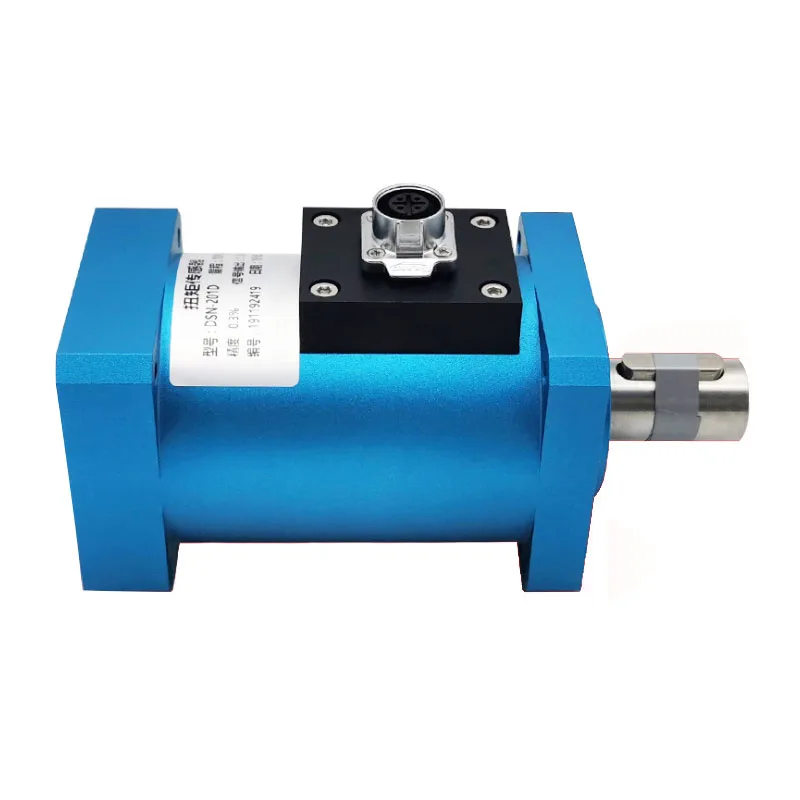

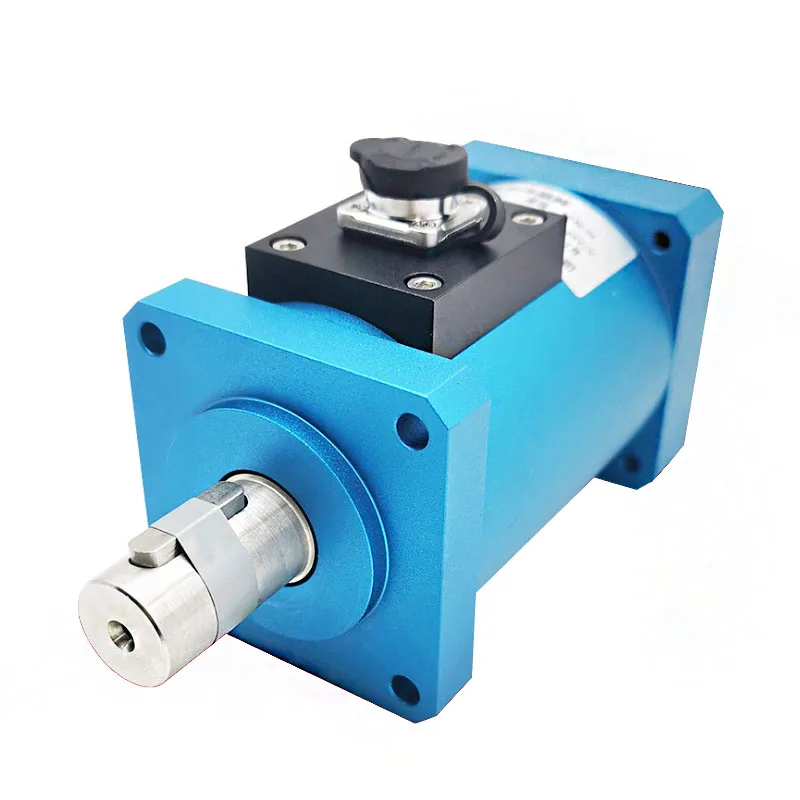

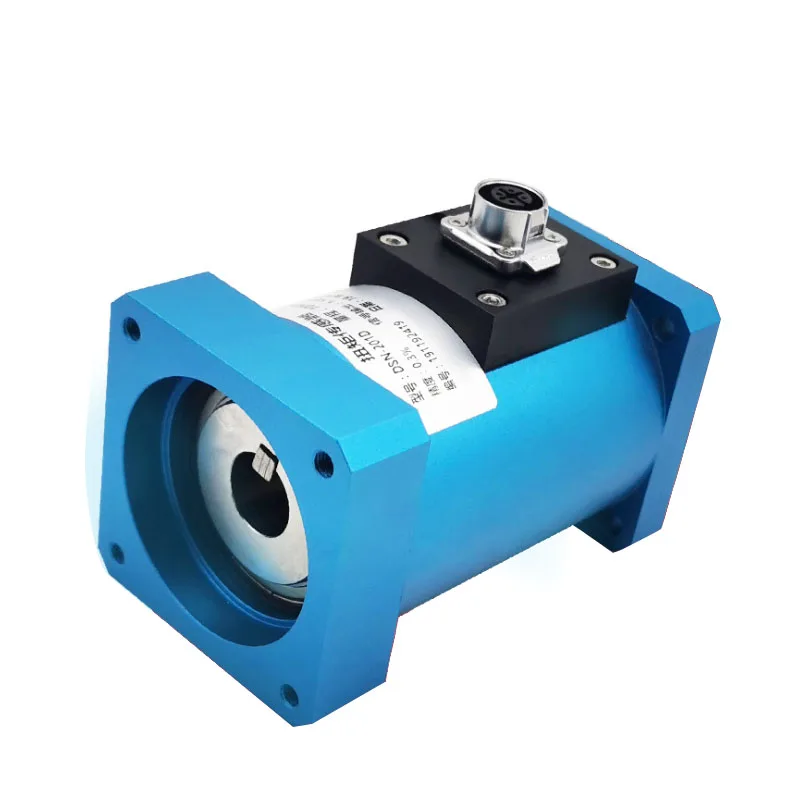

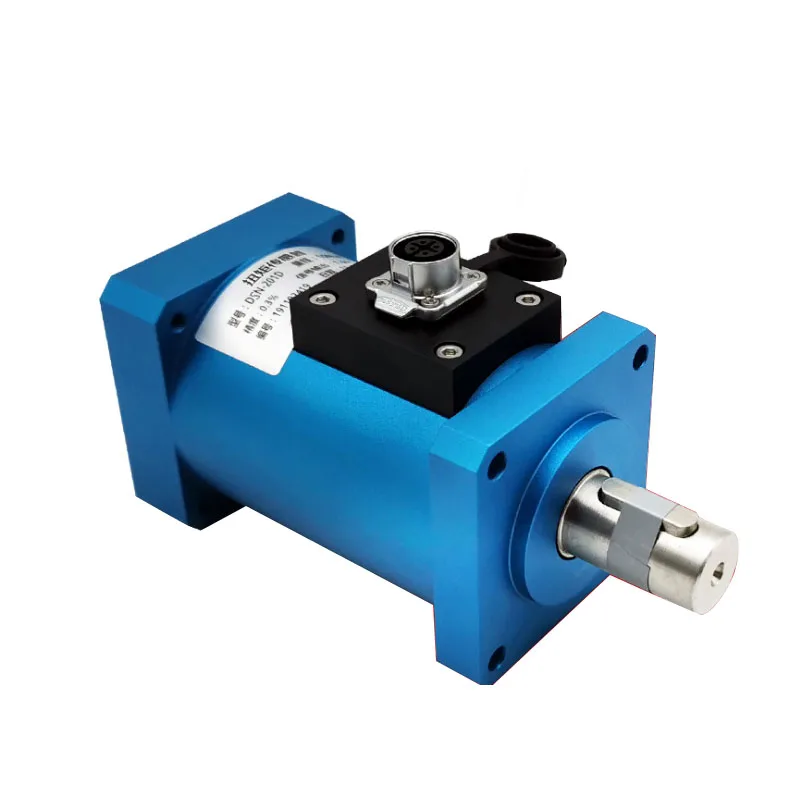

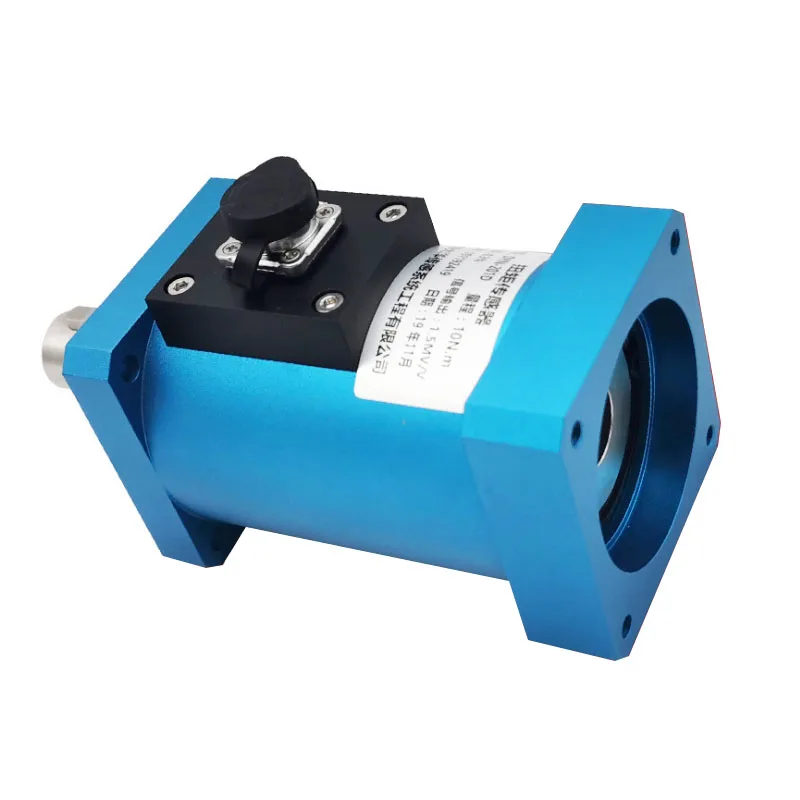

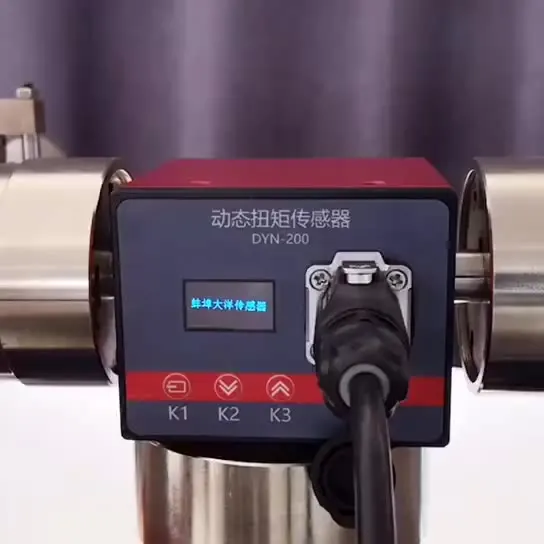

Digital RPM Motor Shaft Rotary Force Meter Measurement load cell Transducer Dynamic rotary torque sensor with display | Автомобили и

Digital RPM Motor Shaft Rotary Force Meter Measurement load cell Transducer Dynamic rotary torque sensor with display | Автомобили и

Specification:

Capacity:

0.1/0.2/0.3/.0.5/1/2/3/5/10/20/30/50/100/200/300/500Nm

Accuracy:

±0.1; ±0.3; ±0.5%F.S(Linearity + Repeatability +Creep)

Temperature Compensation Range:

Room Temperature to~+60°C

Safe Temp. Range:

-10~+80 °C

Output Sensitivity:

1.0~1.5.0 mV/V, 4-20mA,0-5/0-10Vdc

Temp. Effect On Zero:

±0.1 %F.S/10°C

Output Impedance:

700±5/350±5Ω

Recommend Excitation:

12 VDC

Zero Balance:

0~±1 %F.S

Insulation Resistance:

2000 MΩ/100VDC

Safe Overload:

120 %F.S

Input Impedance:

700±10/350±10 Ω

Cable:

3m

1.What's your MOQ?
Normally our MOQ is 1 pcs,but sometimes maybe we have other order on hand,if based on ODM,MOQ can be negotiated.

2.What information do I need to provide before placing an order?
The size, capacity and usage are necessary. Besides, we may need some other parameters.

3.How long is your warranty period?
Our warranty period is 12 months.

4.Can you design and customize products for me?
Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.

5.How long can I expect to receive my goods after I place order?
Our production time are always 5-15 days after pre-production sample confirmation.

6.Can I get some samples before place order and how long for a sample?
Yes,but customer need pay for the samples and freight,the lead time for samples is about 7 days upongot the payment;

7.How is your shipping?
1)shipping by express(sample order)or by sea(bulk order)
2)worldwide shipping service available
3)please contact before order as shipping cost varies time to time

8.Are you a trading company?
We are manufacturer,our factory has passed CE,ISO9001:2008,NTEP,OIML,we have good quality control.

9.Will you have some discount?
1)To clients who bring repeat orders and large orders
2)Please contact us for Better Quote.

10.I am the buyer purchasing a large number of load cells every year, can I visit your company and discuss in person?

We are delighted to meet you in China and really welcome you to communicate technical questions with us.

Any other questions,please do not hesitate to contact us anytime!
