    DTEC DHR-45D Digital Superficial Rockwell Hardness Tester LCD Display Inside Printer Automatic Loading Menu Control RS232 Port. |

    Описание товара

    Product Description

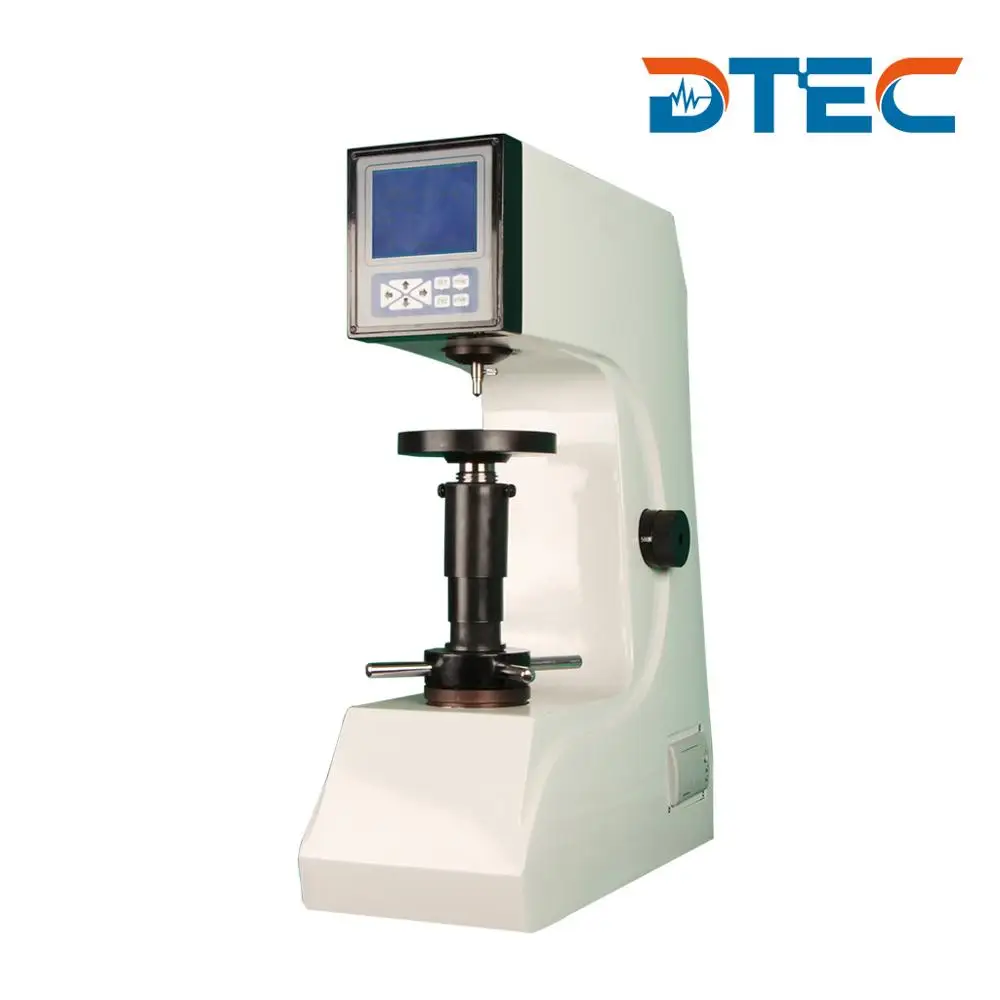

    DHR-45D Digital Superficial Rockwell Hardness Tester is an advanced model among superficial rockwell hardness testing equipment,it adopts large LCD digital screen as well as menu structure to display hardness value,which is reliable and stable in performance.

    Through large LCD digital screen operation,you can freely select different available scales of superficial Rockwell hardness,and then make test;moreover,different hardness values can be exchanged;you can also save the testing result and print it out if necessary;it has function of RS232 super terminal setting;optional data processing software can also help you to deal with testing result.

    Using scope:
    Surface hardened steel, copper, aluminum alloy sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface heat treating and chemical treating materials, etc.



      Rockwell Hardness Range: Rockwell hardness scale Hardness symbol

    Indenter type

    Initial l force Fo (kg) main force F1 (kg) Total force F(KG) Constant Scope of application Examples of application A HRA diamond cone indenter 10 50 60 100 20-88HRA Hard metal and hard alloy B HRB

    1.5875mmball indenter

    10 90 100 130 20-100HRB Nonferrous metal and soft metal C HRC

    diamond cone indenter

    10 140 150 100 20-70HRC heat treatment steel D HRD

    diamond cone indenter

    10 90 100 100 40-77HRD Surface hardened steel F HRF

    1.5875mmball indenter

    10 50 60 130 60-100HRF Nonferrous metal G HRG

    1.5875mmball indenter

    10 140 150 130 30-94HRG iron, copper nickel, zinc alloy A scale: It is suitable for testing the metal more than 70HRC, such as tungsten carbide, hard alloy as well as the hard sheet material and the hardening material on the surface layer. B scale: It is suitable for testing non-ferrous metals and alloys, annealing steel or soft or medium hardness of materials.  C scale: It is suitable for testing the carbon steel, tool steel and alloy steel.



    DTEC Advantages Large LCD digital screen,menu structure operation; Save and output testing result with printer; High testing efficiency,High accuracy,wide testing range,automatically loading and unloding testing force Support function of RS-232 super terminal setting,with good reliability and excellent operation; Selectable and exchangeable of different Rockwell hardness scales.
      Specification





    Model DHR-45D Exchange Scales Rockwell,Brinell,Vickers Display Mode LCD Digital Specimens Max. Height 165mm Data Output Inside Printer,RS-232 data port Dwell Time 2-60s Carried Standard

    GB/T230.1  GB/T230.2 National Standard  JJG112

    Specimens Max.Depth 160mm Initial Testing Force 3kgf(29.42N) Testing Force 15kgf(147.1N)30kgf(294.2N)45kgf(441.3N) Superficial Rockwell Scales

    HR15N  HR30N  HR45N  HR15T   HR30T  HR45T

    Testing Range HR15N:70-94;HR30N:42-86;HR45N:20-77; HR15T:67-93;HR30T:29-82;HR45T:10-72 Indication Error HR15N  HR30N  HR45N:+/-2HRN HR15T  HR30T  HR45T:+/-3HRT Dimension(cm) 63*50*86cm(L*W*H) Power Supply AC220V

    Packing Weight

    95KG





    Packing List & Accs

    Standard Packing List:



    Items Qty. Items Qty.

    Diamond Indentor,Dia.1.5875mm ball indentor

    1

    RS-232 cable,power cable

    1 each

    Block(HRC high and low value 2,HRB 1)

    1 each Dustproof Cover 1

    Testing Platform(Big,Medium and V shape)

    1 each

    Manual book,Quality Certificate

    1 each Weight(A,B,C) 3

    Printer Manual Book

    1

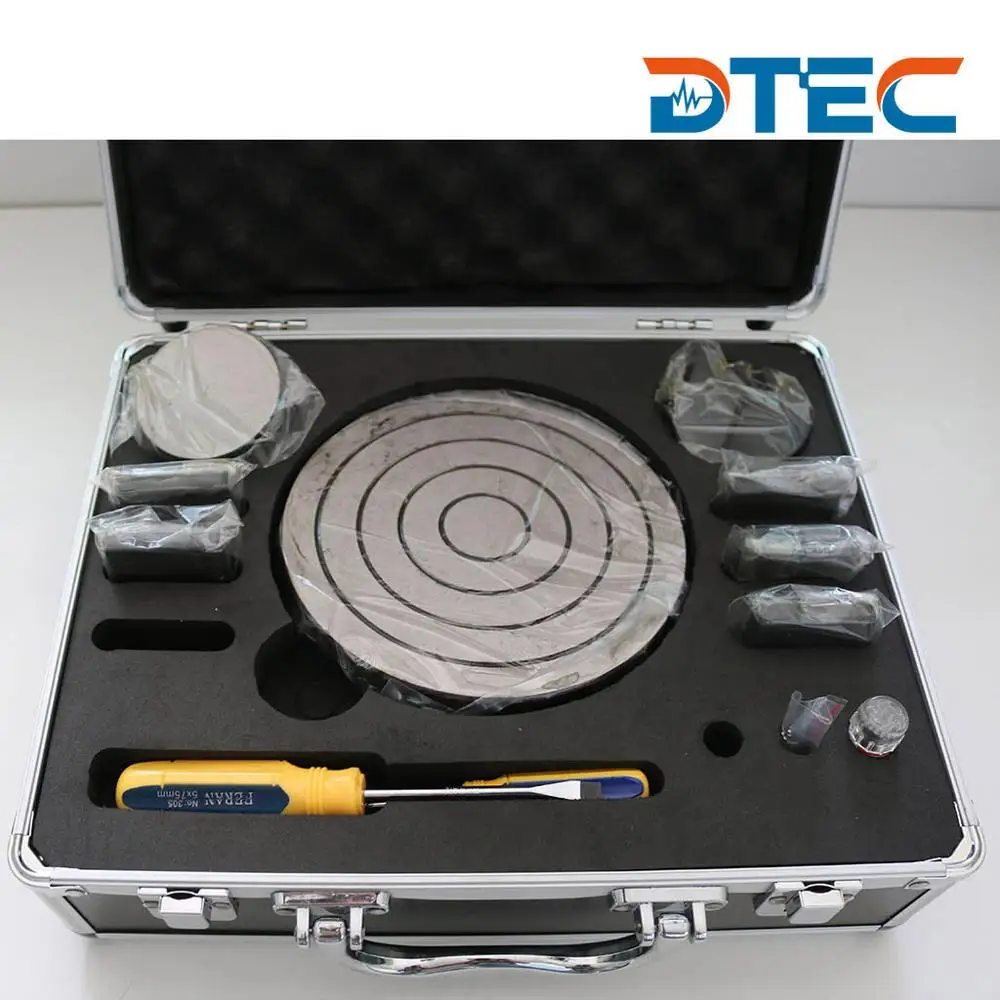

    Optional Accessories for Rockwell Hardness Tester:



    Rockwell Hardness Block:





    Rockwell Hardness Indenter(Good Quality Diamond):





    Packaging & Shipping

    Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
