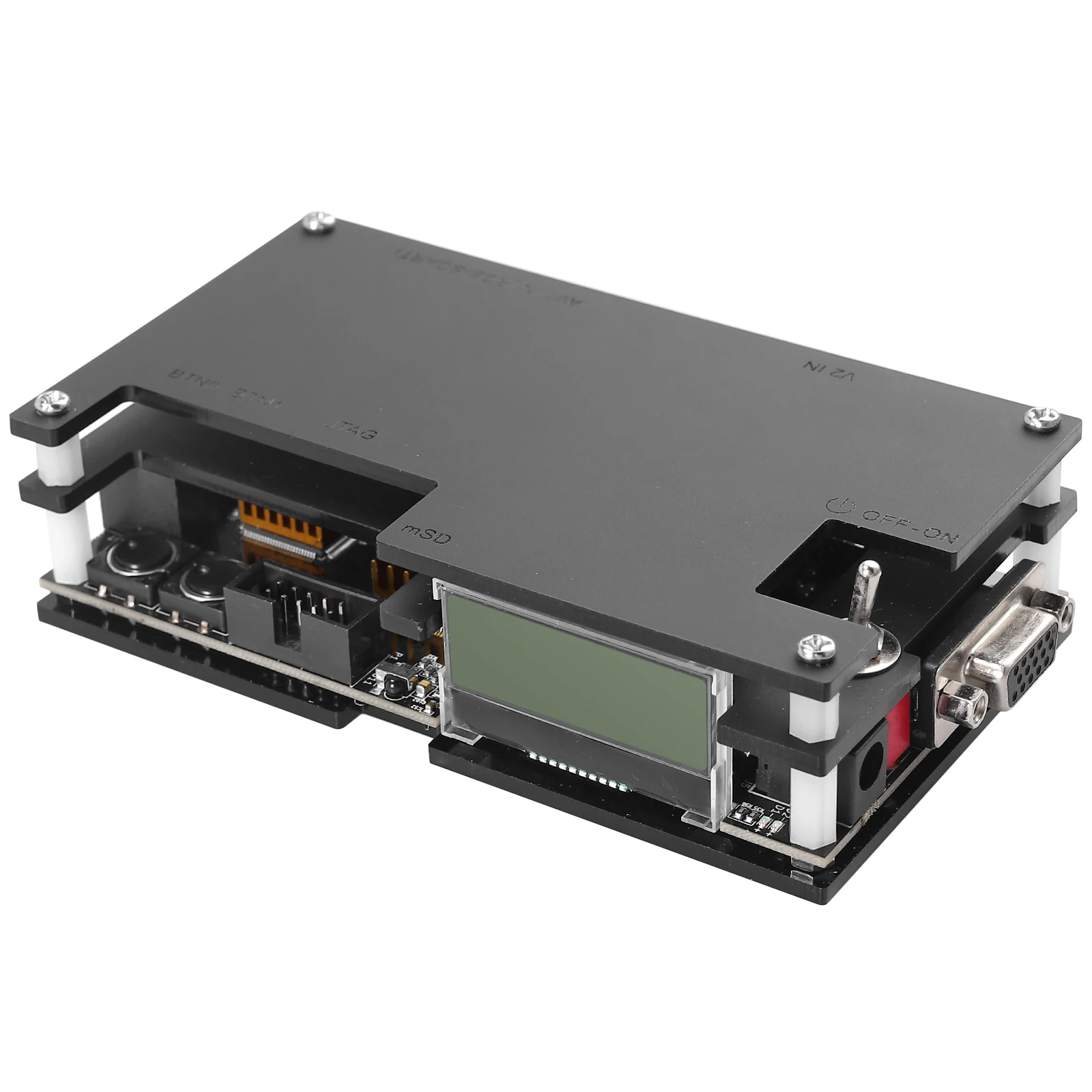

OSSC Open Source Scan Converter v1.6 with SCART, Component and VGA to HDMI for Retro Gaming. Line Multiplier upscaler Perfect for Zero lag RGB Retro Gaming Game Console sfc / md / ps / ss / ps2 / xbox / wii

What are the basics of the OSSC adaptor?
The OSSC is based on FGPA technology which allows the absolute best quality output available to convert old retro consoles to a modern HDMI TV signal.
Quite simply, all your old Retro consoles will work on your modern TV at the absolute best quality and compatibility.

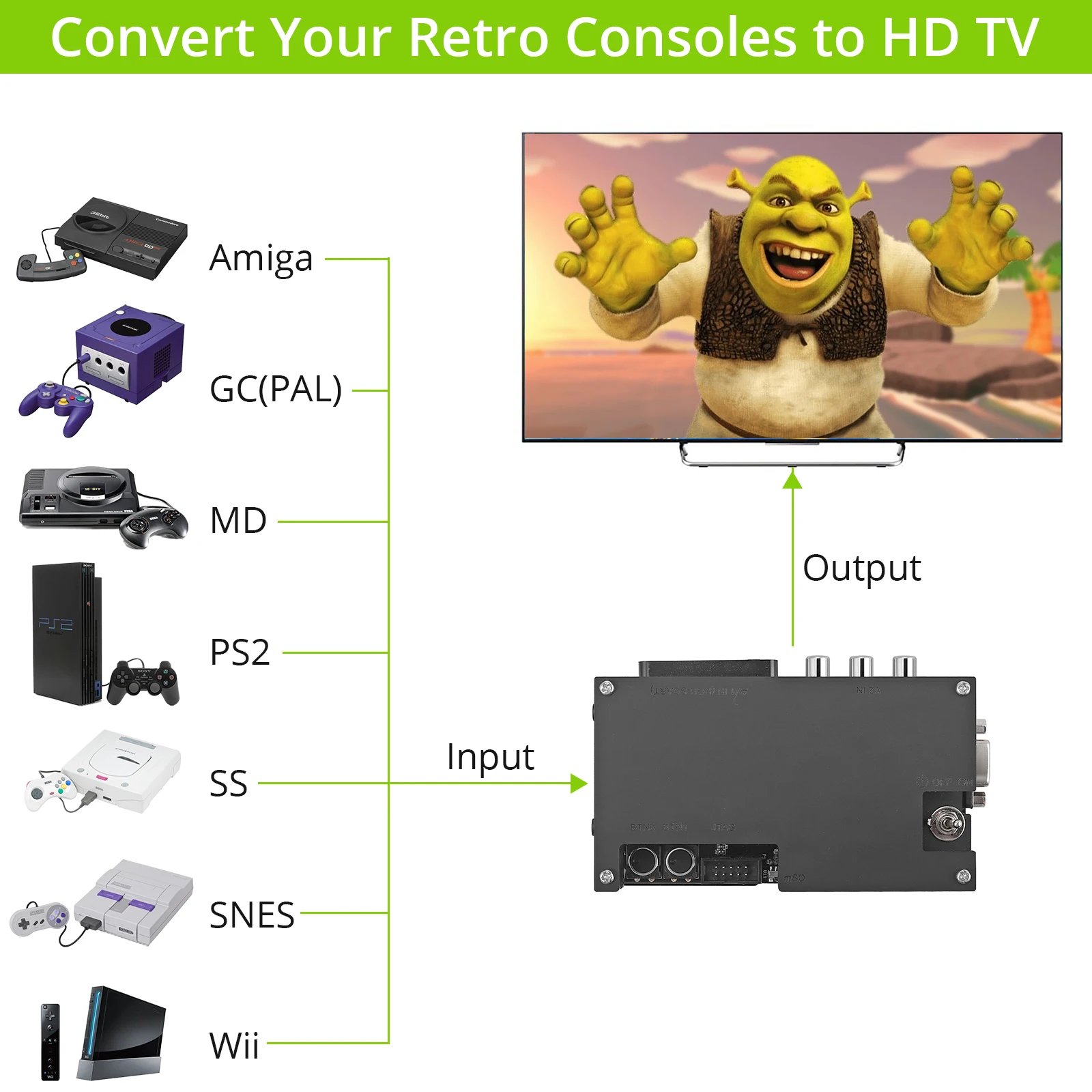

Were talking about full support for all retro consoles from the PS2, PS1, Dreamcast, WII, GameCube, N64, Saturn, SNES, NES, Genesis, Master System, Atari Jaguar, Commodore, Amiga, Sinclair Spectrum, etc. The list goes on……..

Specifications：

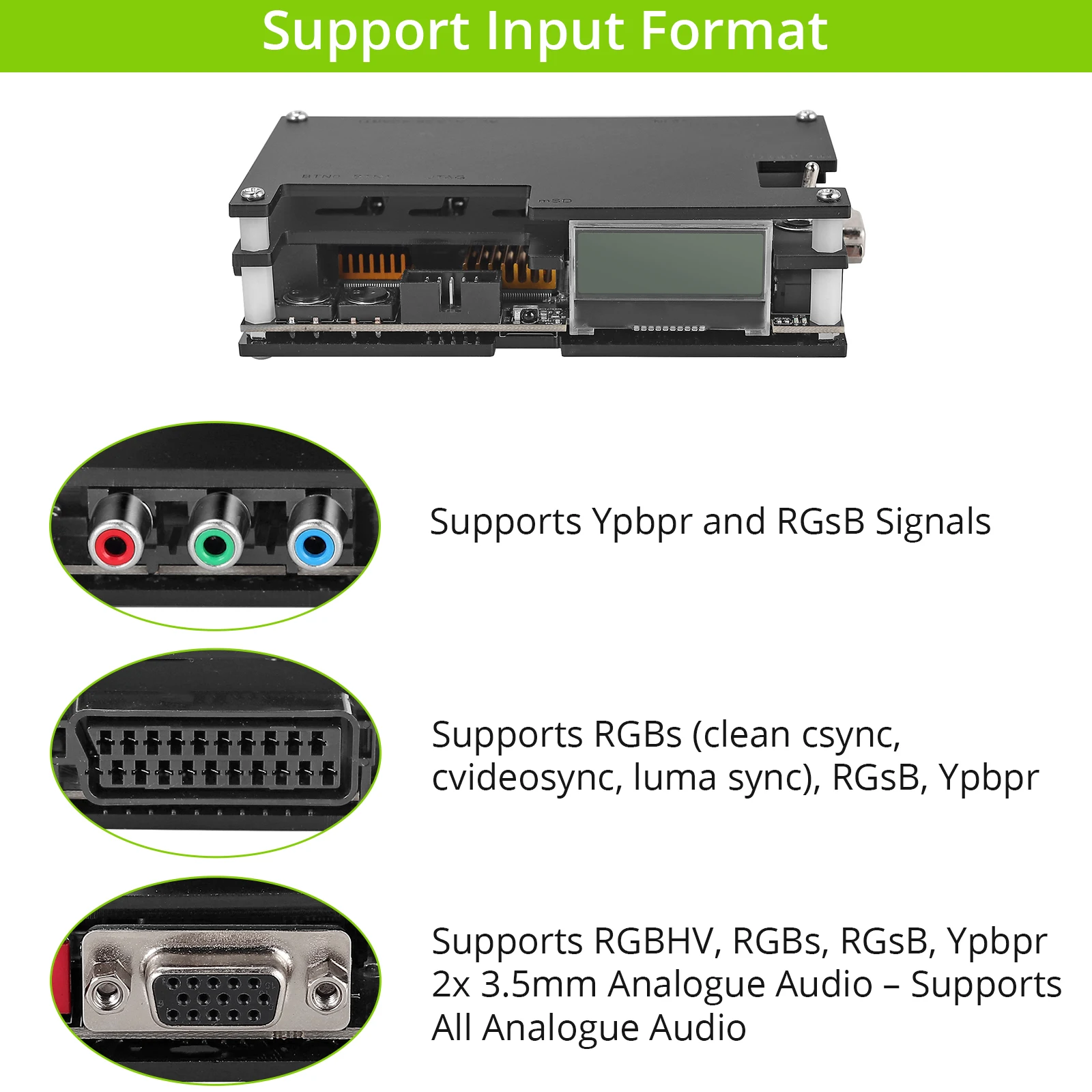

Inputs：
1x SCART – Supports RGBs (clean csync, cvideosync, luma sync), RGsB, Ypbpr
1x Component video – Supports Ypbpr and RGsB signals
1x D-SUB15 (VGA) – Supports RGBHV, RGBs,RGsB, Ypbpr 2x 3.5mm analogue audio – Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input
Composite video and S-Video are NOT supported and require an adapter/transcoder

Output：
1x HDMI or DVI-D (with adapter) (digital only, including audio). Full-range 24-bit RGB output through DVI/HDMI
1x Analogue audio 3.5mm (input/output toggle)

Supported Input Resolutions：
240p/288p/480i/576i 15khz 25khz medium-res modes
480p/576p/720p/1080i 31khz Supported output resolutions

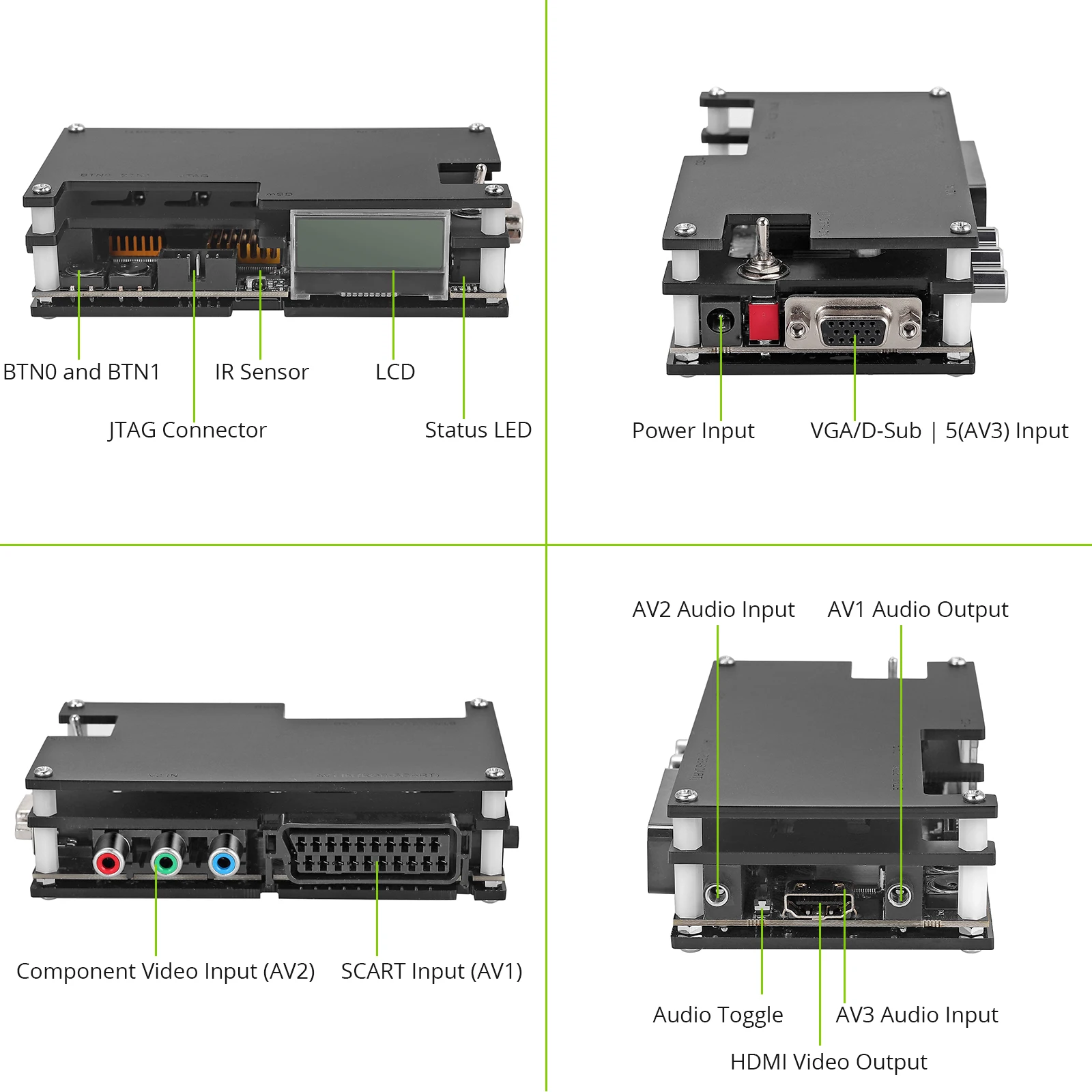

Features：
1.Processes (line doubles) retro games with NO input lag – Unlike other scalers, such as the XRGB Mini, the OSSC works on individual scanlines rather than a frame at a time, that means there’s no input lag whatsoever (well, a few nanoseconds if you really want to be precise).
2.Eliminates ugly deinterlacing artefacts and bad scaling – Connect most retro consoles to your TV and if you get a picture at all, it’s likely to be ugly. Well, worry no more! OSSC converts the image into a 480p or 720p (where compatible) image that is correctly displayed and processed. EVERY special effect, from 240p drop shadows to striped sprites, is rendered correctly.
3.Converts SCART and Component to DVI/HDMI – Feed in a 480p component video signal from a Wii and get out a perfectly processed 480p HDMI or DVI (with a simple adapter) image. The quality is flawless!
4.Backlit LCD
5.SD Card socket for firmware updates
6.JTAG connector
7.IR receiver
8.Power requirements DC 5V 1 Amp – 2.1 x 5.5mm positive tip
9.Power Adaptor with Multiple Plugs Included
10.Full OSSC User's Manual

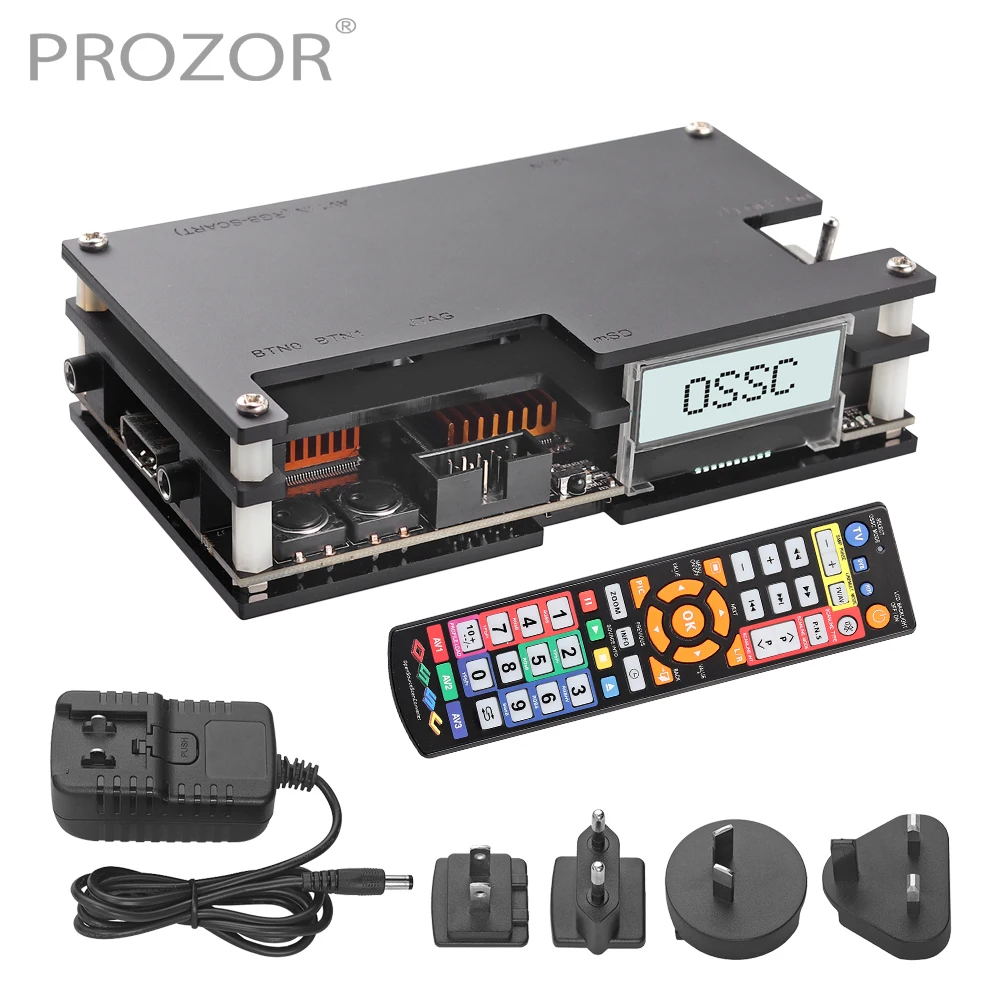

Remote and multi-plug adaptor included：
In every OSSC adaptor kit we assure that there is a fully functional remote control with a full-button overlay. This assures full control over all the features of your OSSC. We also include a multi-plug adaptor allowing the connection in most countries out of the box!

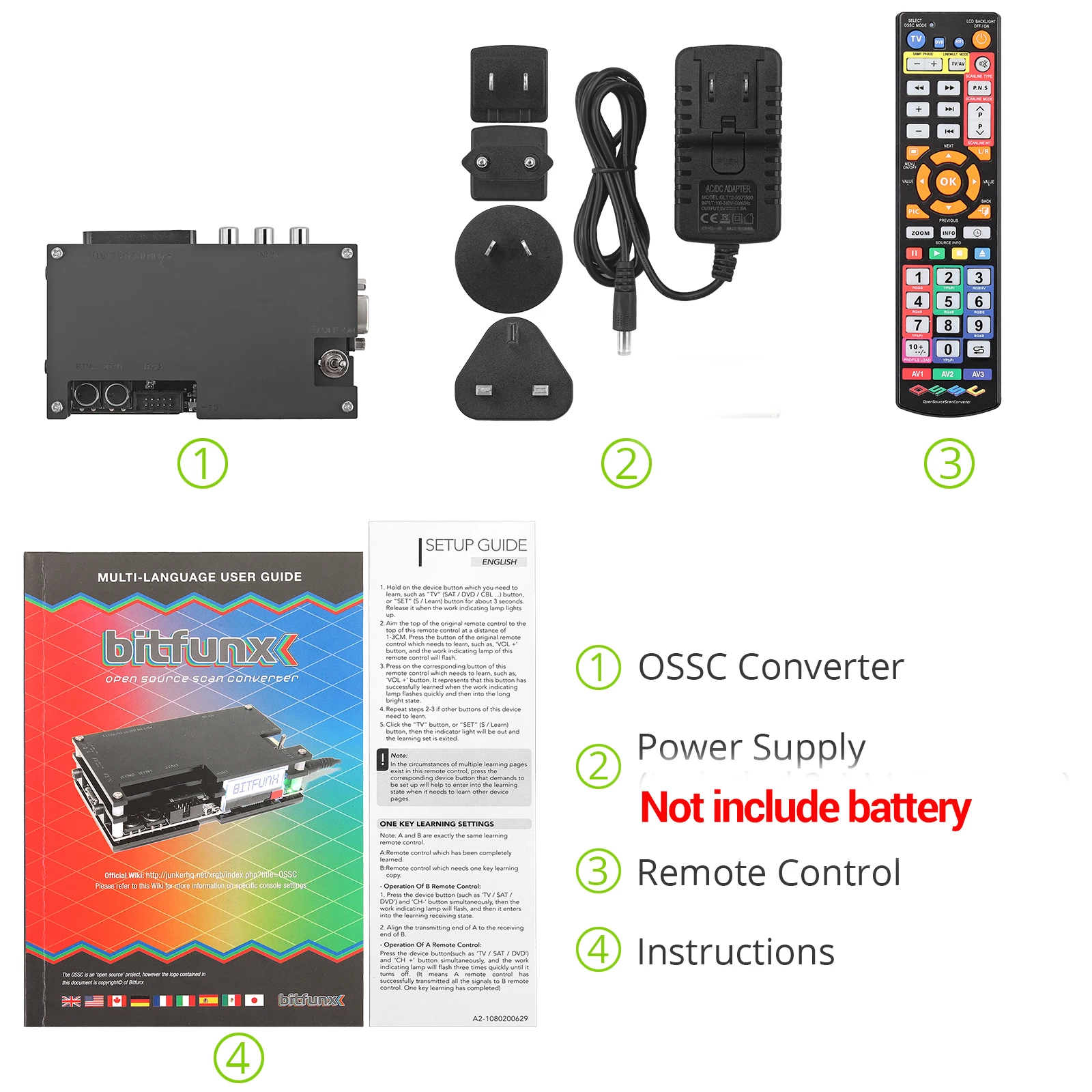

Package Contents：
1X OSSC Converter
1X Remote Control (Not Included Batteries)
1X Power Supply
1X Instructions
