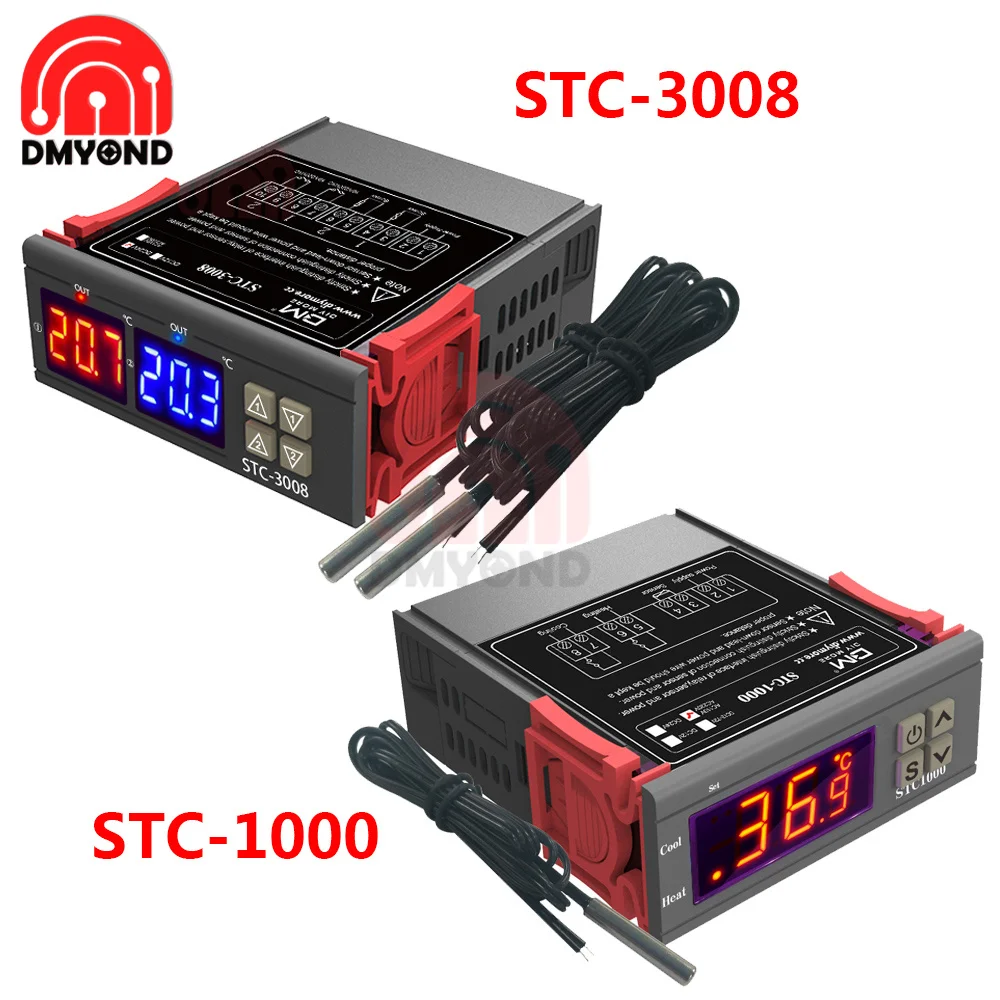

STC-1000 STC-3008 LED Digital Temperature Controller Thermostat Thermoregulator Incubator DC 12V 24V AC 110V 220V DC 12V-72V

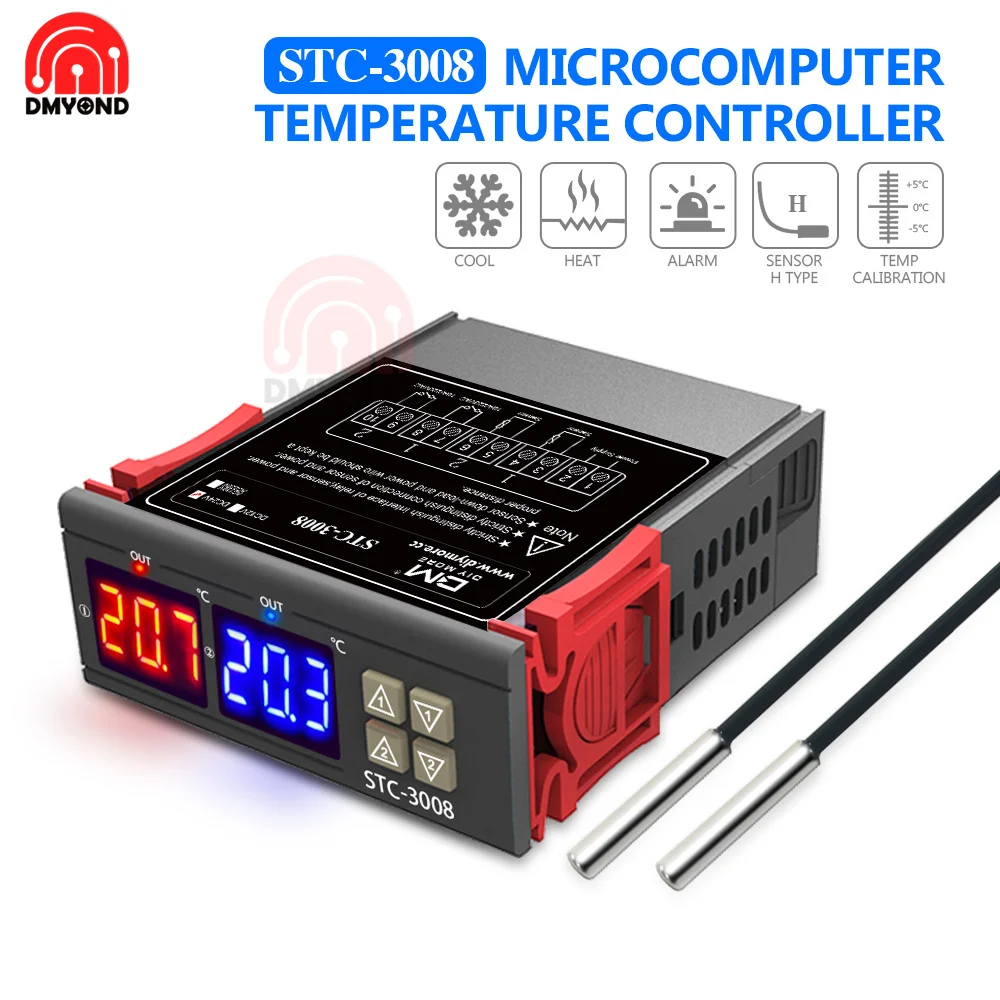

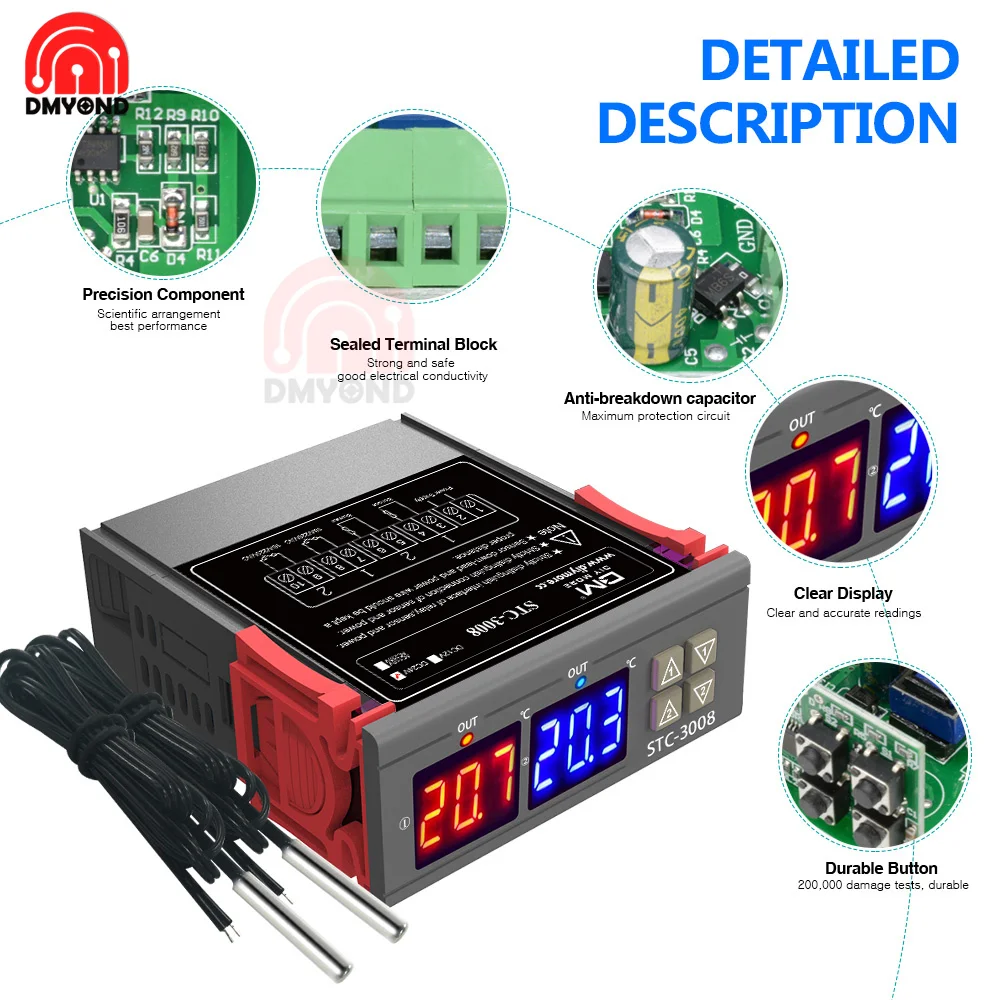

STC-3008
● Power supply: 110-220VAC ± 10%, 50/60Hz (or DC12V / DC24V)

● Measuring and controlling temperature range: -55℃～+120℃

● Resolution: 0.1

● Accuracy: ±1℃

● Relay output contact capacity: heating: 10A/240VAC, cooling: 10A/240VCA

● Sensor h type: imported NTC sensor, cable length 1 meter

● Shell material: gray ABS flame-retardant plastic shell

● Net weight 120g, gross weight 140g

Wiring diagram:

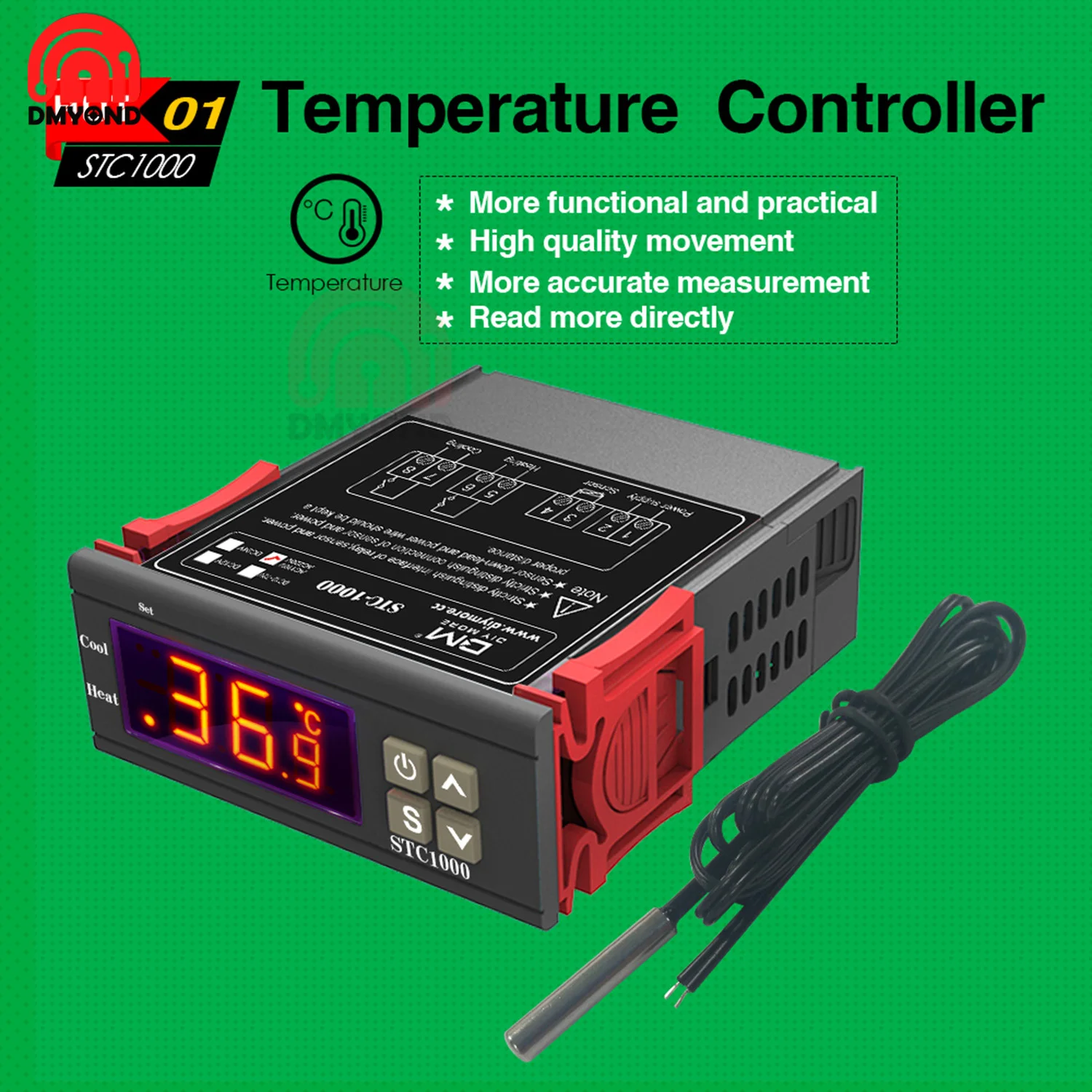

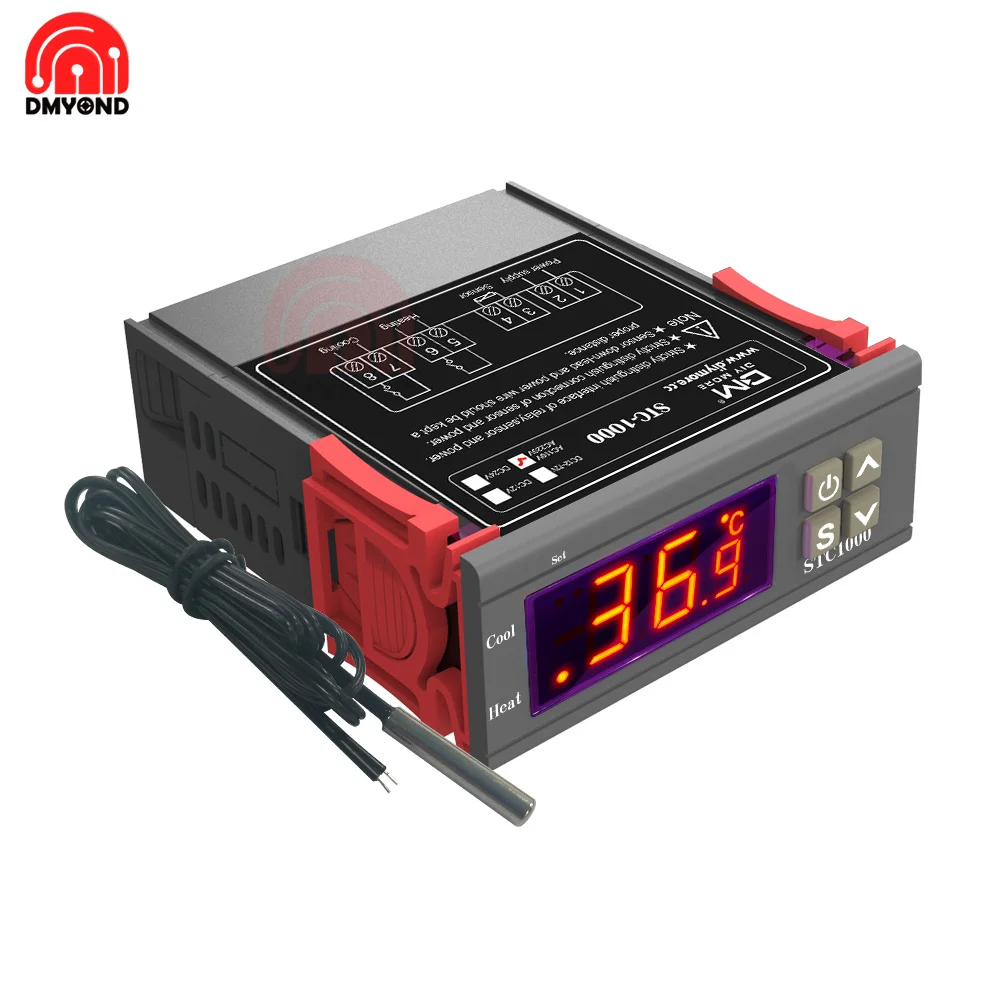

STC1000 single display thermostat DC12-72V, AC110-220

Product name: temperature controller

Product model: STC1000

Power supply voltage: DC12~72V or AC100/220V (two voltage options)

Temperature range: -50~ +99°C

Temperature measurement accuracy: ±1°C (within the range of -50~+70°C)

Cable length: 1 meter

Size: 75mm*85mm*35mm

Applicable scenarios: various sensor control boxes, water heaters, freezers, fans

(Not limited to these devices)

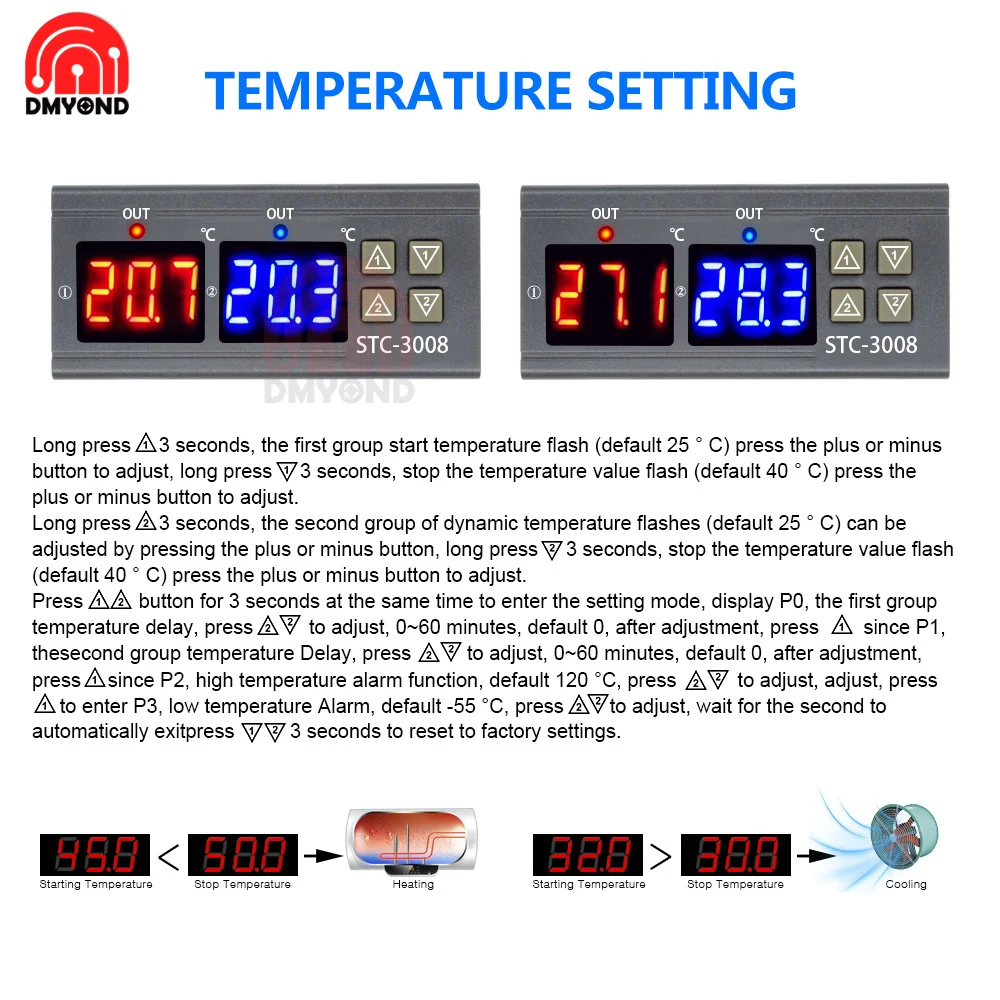

temperature setting

Heating and cooling mode settings

Setting (starting temperature):

Press and hold the ▲ button for 3 seconds to start the temperature flashing, use the ▲▼ button to set the starting temperature value

Setting (stop temperature):

Press and hold the ▼ button for 3 seconds to stop the temperature flashing, use the ▲▼ button to set the stop temperature value

Case 01 Control water heater

The current temperature is 50°C, heating to 65°C will stop

Step 1: Heating mode, current temperature <stop temperature.

Step 2: Press and hold the S button for 3 seconds, the ‘Set’ indicator will light up. Select ‘F1’.

Step 3: Press and hold the S button, and then press the ▲ or ▼ button to adjust up or down. The stop temperature is set to 65°C.

The button will not run for 10 seconds and will automatically return to the normal display state.

Case 02 Control Farm Fan

The fan ventilated to 26°C and stopped, the temperature rose to 30°C, and the ventilation started again.

Step 1: Cooling mode, start temperature> stop temperature.

Step 2: Press and hold the ▲ button for 3 seconds to start the temperature value flashing. Use ▲▼ to set the starting temperature to 30°C.

Step 3: Press and hold the ▼ button for 3 seconds to stop the temperature value flashing. Use ▲▼ to set the stop temperature to 26℃, and the setting is complete.

The button will not run for 5 seconds and will automatically return to the normal display state.
