[System introduction]

DSP28335Development board is an entry-level platform with simplified functionsTMS320F28335Development board，It is suitable for users who require high scalability and cost performance。F28335 DSPChip isTIAnother cost-effective product launched by the company2000seriesDSPprocessor，Same as previous models2000Family processor comparison，Increased32Bit floating point processing unit、DMA、Higher precisionPWM、Higher precisionADC、Larger capacity on chipRAM、More commonIOmouth、independentEV（Event manager）Clock、IICBus, etc。Compared with the most advanced2000Processor，Average performance improvement50%，And with the fixed pointC28xThe controller software is fully compatible。

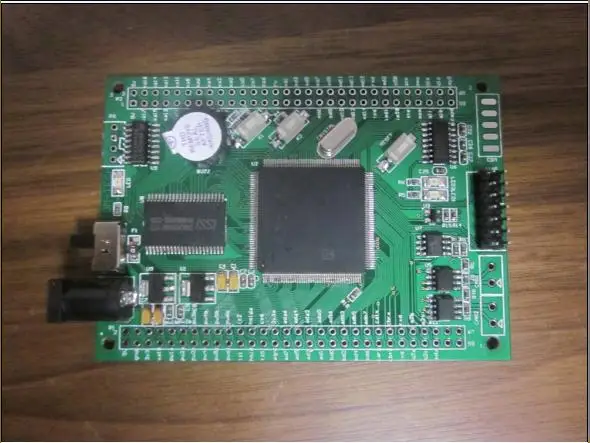

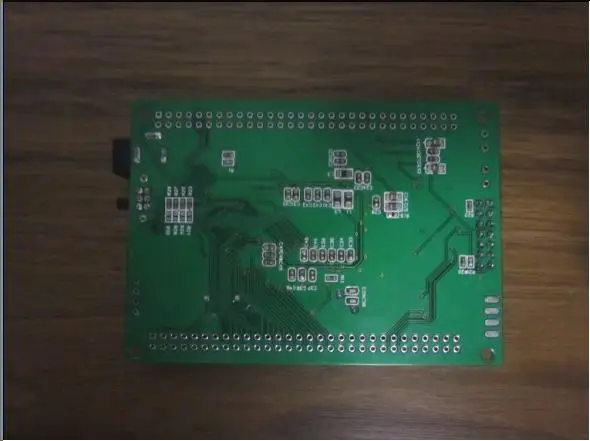

DSP28335The development board can be used toTMS320F28335Fast performance evaluation、DSPQuick start to learning。in addition，DSPAll function pins of the chip have been led out，This gives users great freedom to carry out secondary development。The development board is exquisite and compact，84mm×70mm，Four layer plate technology，Wait for the user to complete the verification28335After learning and evaluating，It can also be used as core board，Will give users a great saving in development costs。It can be widely used in motor control、instrument、meter、Power systemRTU，FTUetc.、Industrial field application、Motion control and other occasions。

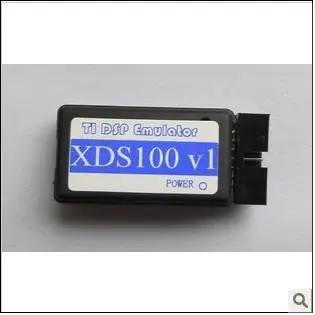

XDS100V1yesTIThe company launched a cost-effective，fitDSP2XSome developedDSPsimulator ，Compact，Cheap and convenient，It is especially suitable for those with limited budgetDSPamateur；

\

[DSPSystem characteristics]

\

1.DSPprocessorTMS320F28335，32Bit floating point high speed digital processor，working frequency 150M；

\

2.DSPBuilt in256K×16-bit FLASH，User program can be stored，FLASHEncrypted；

\

3.DSPIn film8K×16-bit Boot ROM；

\

4.DSPIn filmOTP ROM：1K×16-bit；

\

5.DSPIn film34K×16-bit SRAM；

\

6.DSPOff chip expansion 256K×16-bit SRAM(Can be upgraded to512K×16，Directly replace the chip on the board)；

\

7.DSPIn filmA/D：2×8passageway，12-bitResolution，80nsConversion time、0～3Vrange；

\

8.DSPIn filmPWM：12Channel output，6High precision of circuitPWM (HRPWM)；

\

9.Extended serial64kcapacityEEPROM（AT24LC64）；

\

10.Outward expansion1roadRS232StandardSCIInterface；

\

11.Outward expansion2roadCAN2.0BTransceiver conversion circuit；

\

12.2InstructionsLED，2Function buttons，1Reset button；

\

13.2individual2.54The pin array leads out almost all the functional pins。

\

14.Voltage monitoring circuit，Low voltage automatic reset and manual reset button，Make your system more stable。

\

15.Provide buzzer，Common system alarm or indication only。

\

16.Provide motor control interface，Multi group motor control can be realized，Or stepper motor control；

\

17.reserve28335 Configuration of startup mode，User friendly2Secondary development。

\

[Code and related experiments]---The code isCLanguage writing

\

1. Outward expansionRAMtest（externalRAMAs program memory and data memory two groups of test）；

\

2. LED flashing；

\

3. currencyIOPort interrupt program（Key response）；

\

4. Communication between serial port and computer（RS232）；

\

5. Program solidification experiment（insideflashBurning and writing）；

\

6. Outward expansionEEPROMReading and writing experiment；

\

7. ADConversion experiment；

\

8. CANBus transceiver experiment

[mixed material item]

1、Fully corresponding schematic diagram(PDFformat)2、Detailed user guide、Data book and application materials3、Rich sample programs4、CCS 3.3 Full version5、Related development tools
