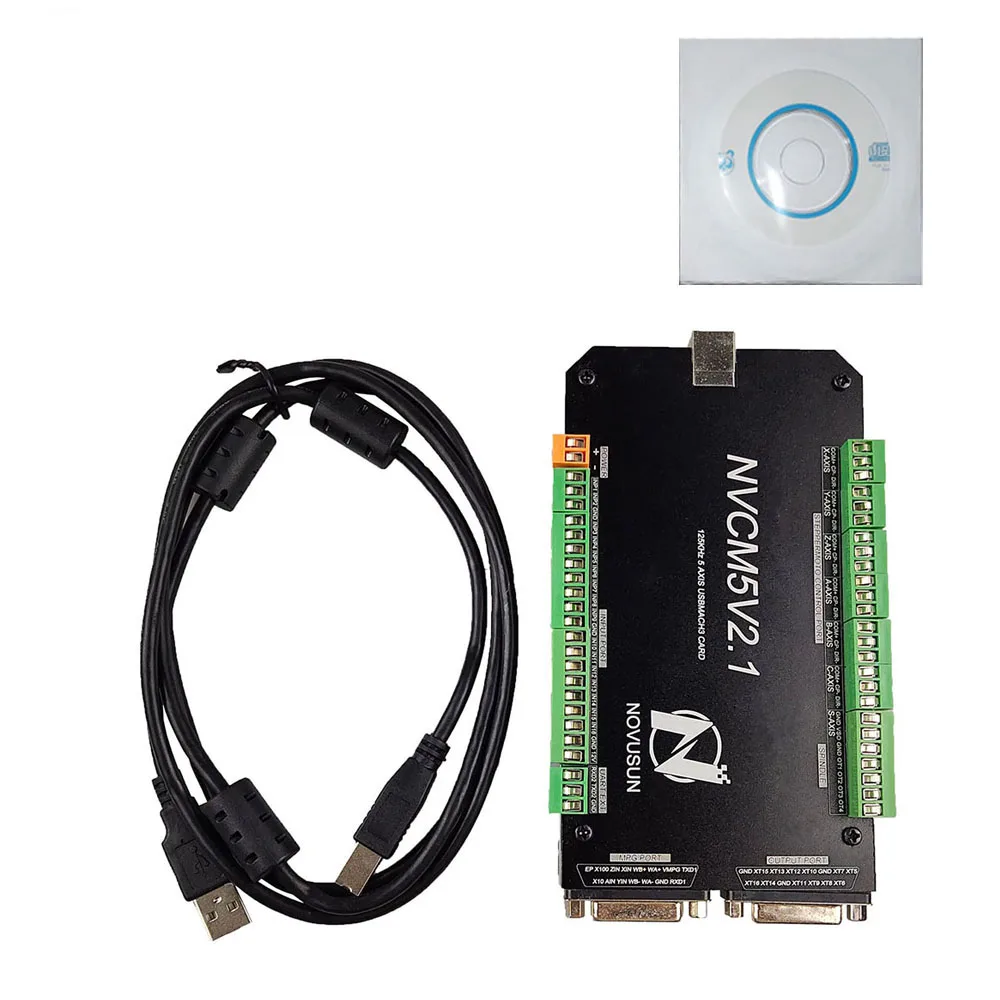

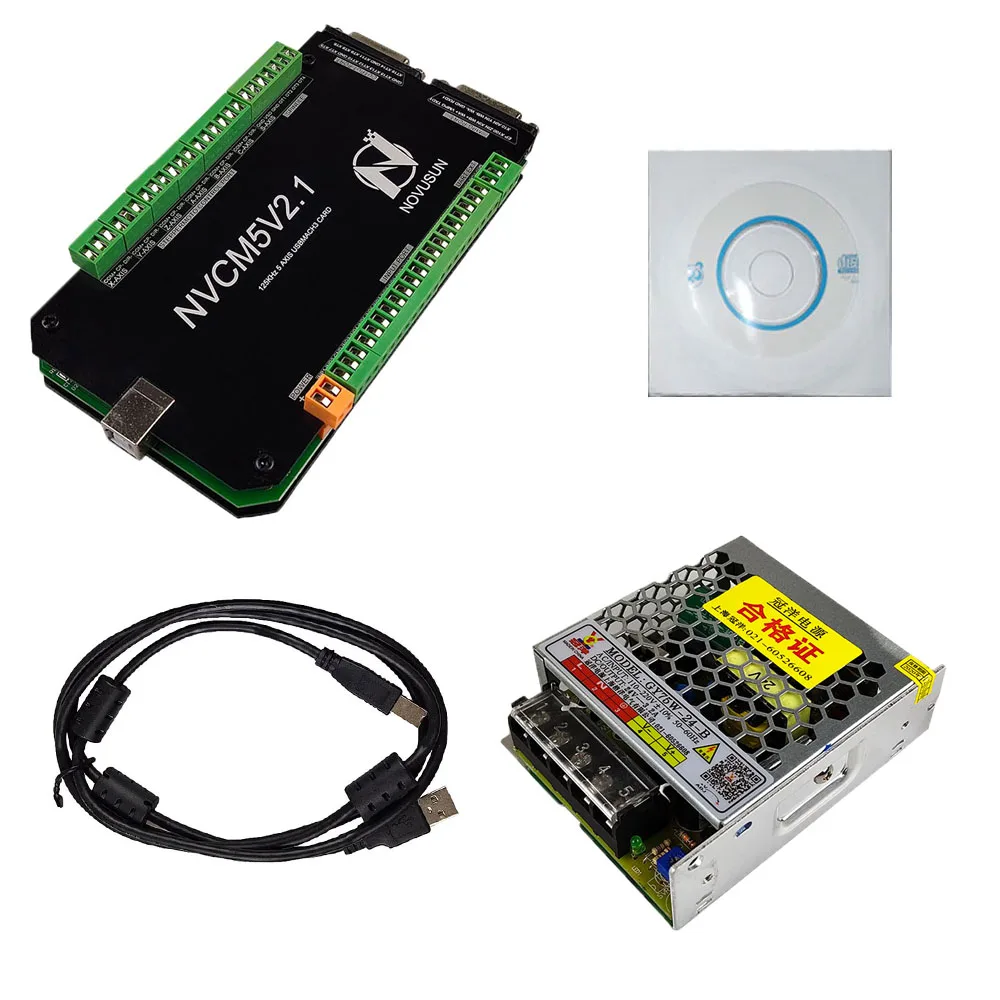

product content:

Control card*1
USB signal cable*1
CD*1

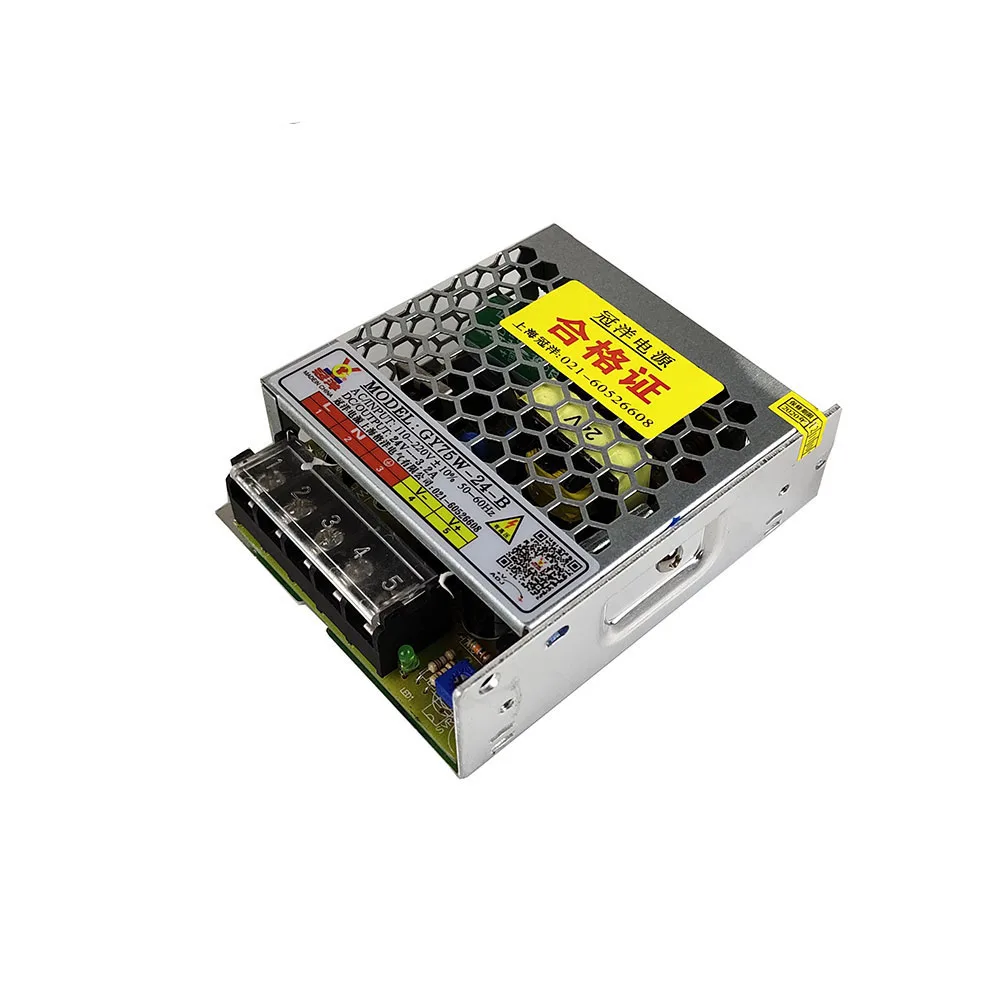

75W24V DC

Product introduction:

NVCM is the 6 axis motion controller we spend 1 years to design.
NVCM support Mach3 software, through USB port to communicate with computer.

Performance parameters:

Support USB;
 16 ports photoelectric isolated input interface；
16 ports photoelectric isolated output interface；
1 port 0-10V spindle speed analog output interface(can change to PWM output)；
can support 6 axis stepper systems maxisim,125KHz pulse output for every axis；
ARM motion control chip；
main device is 12V-32VDC power supply input,current should higher than 1A；

Appearance and size：

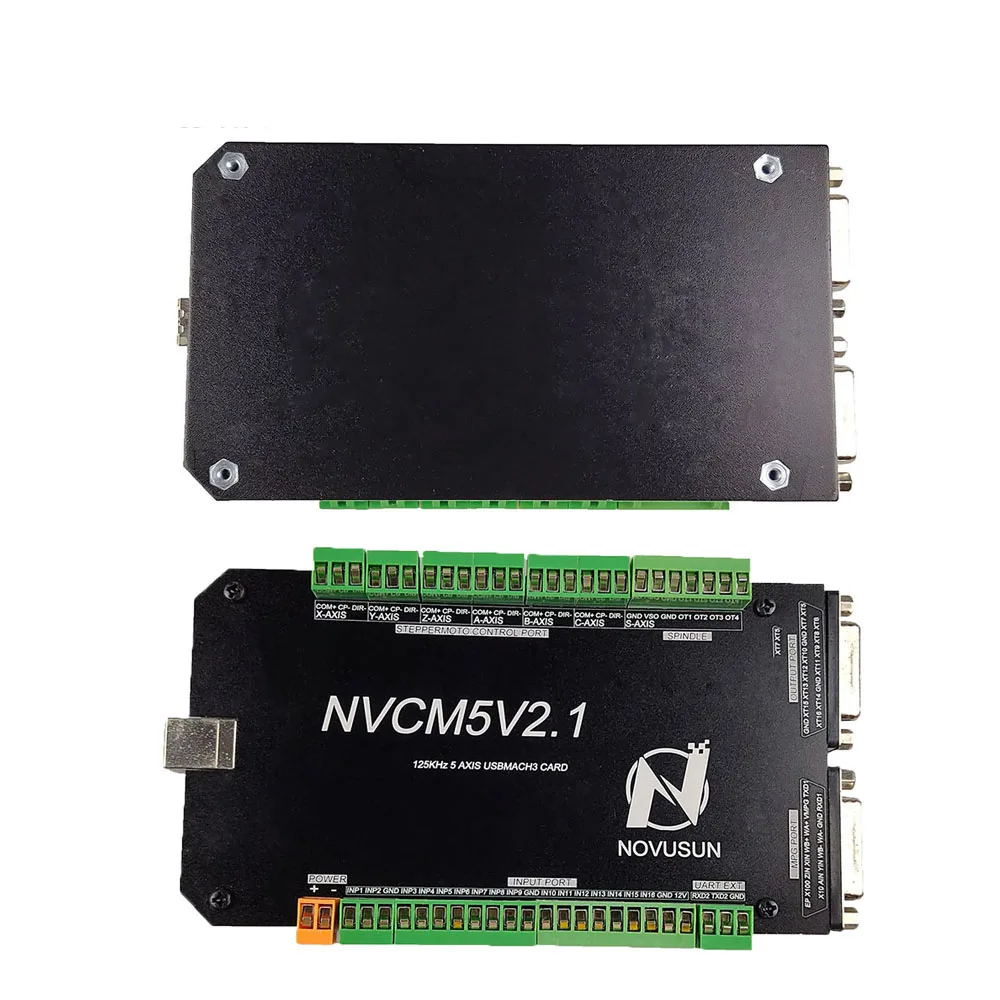

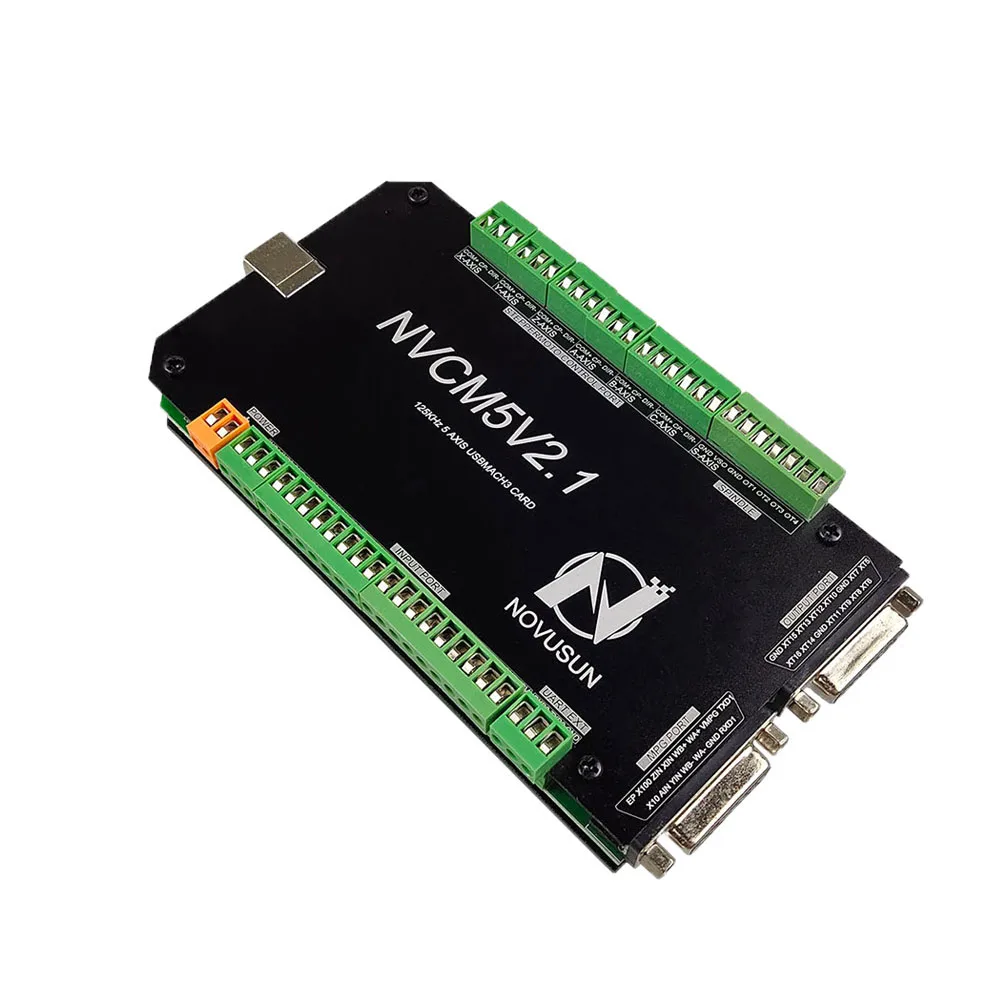

NVCM motion controller is with the sealed open structure, there are 4pcs setting holes at
the bottom. We can fix 2pcs 3mm diameter holes at the cabinet, and install the controller into the
cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:
The products overall size is 150mm*84mm*20mm；
The bottom install size is 125.5mm*71.5mm。
