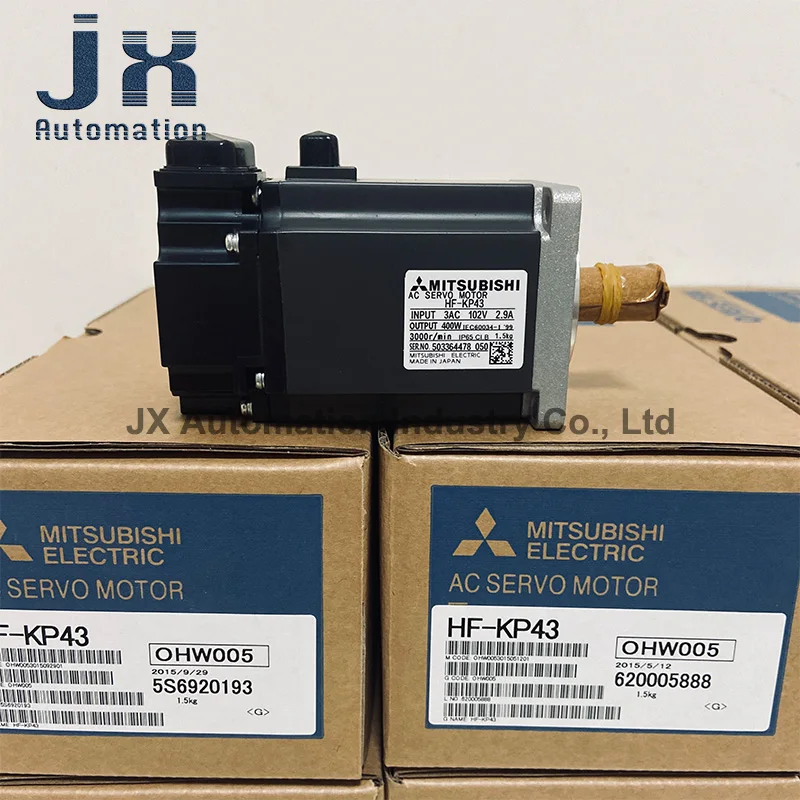

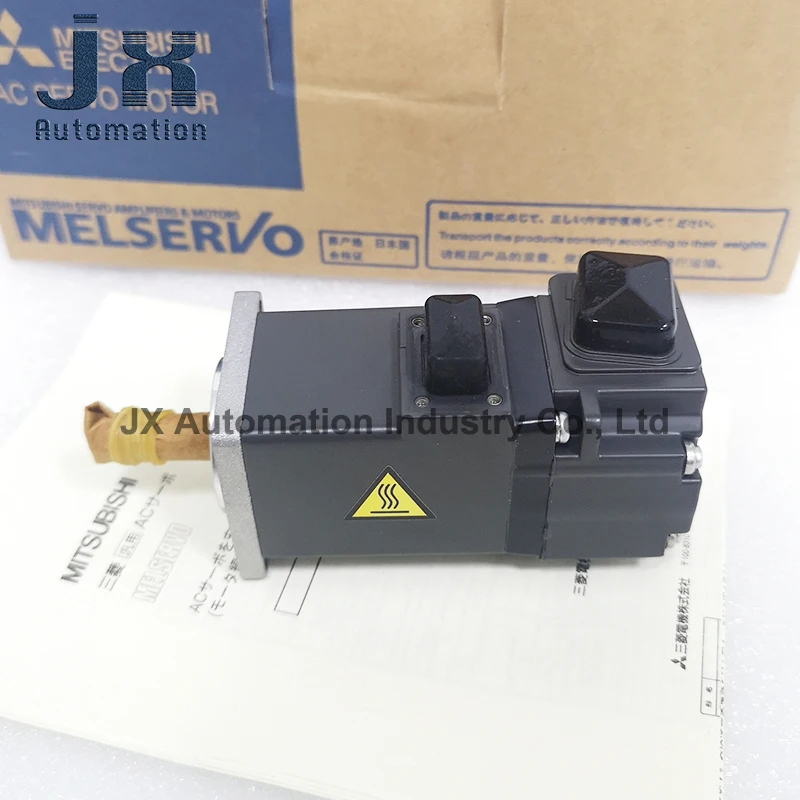

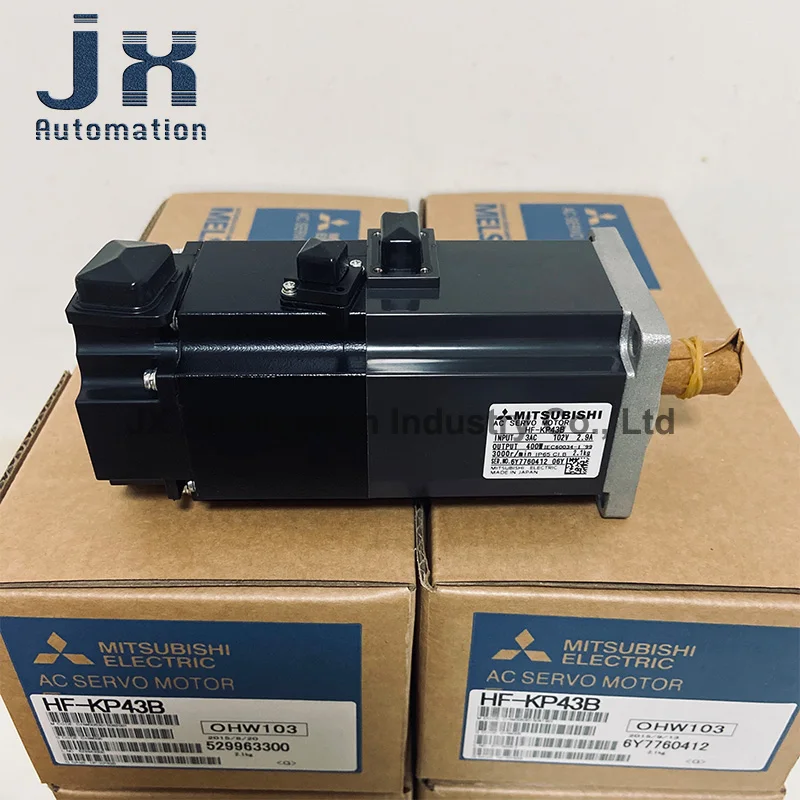

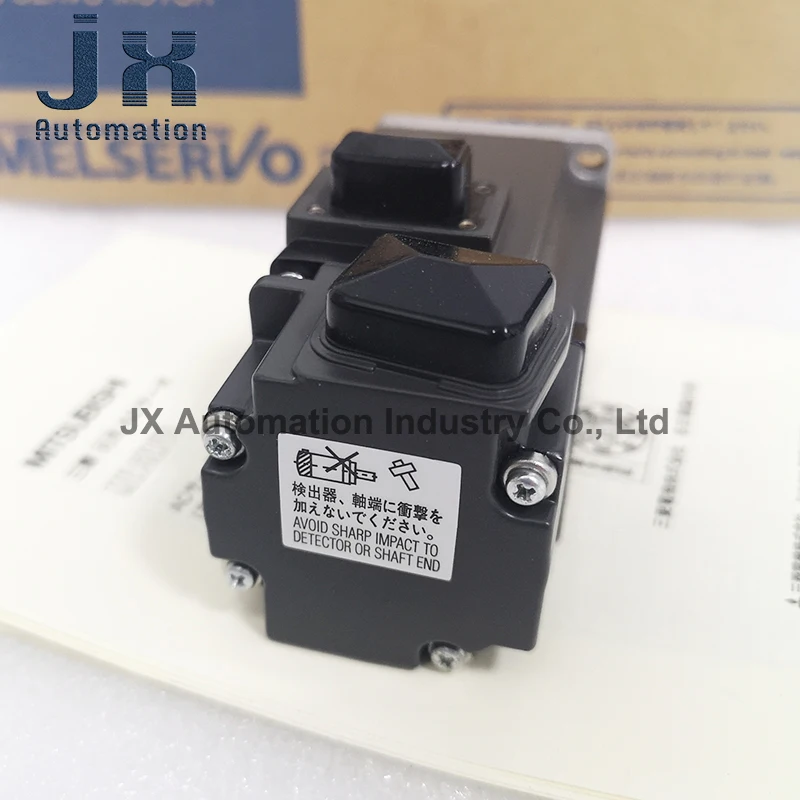

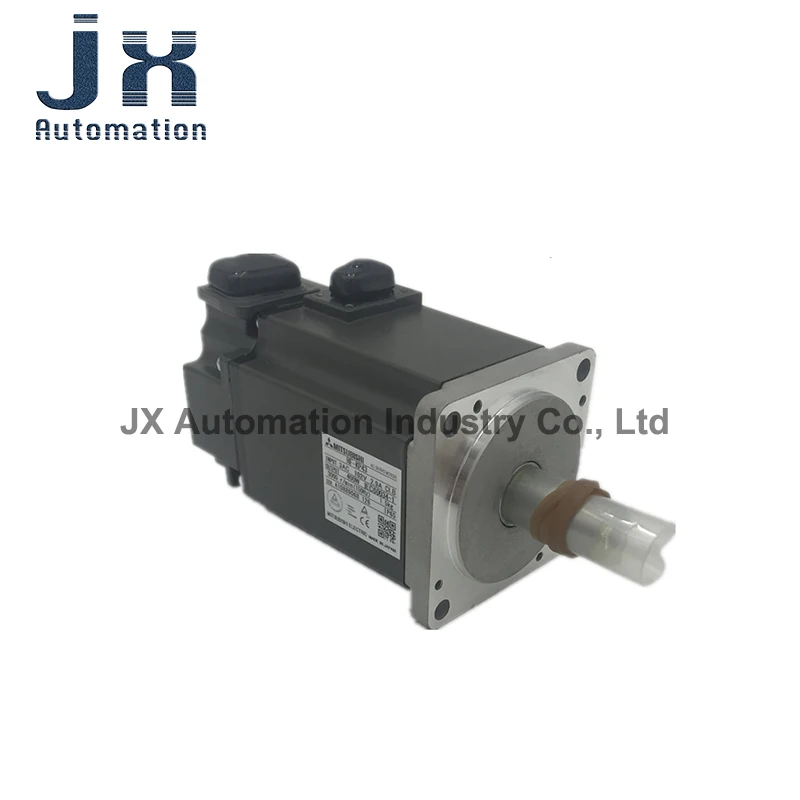

Original Mitsubishi Low Inertia Servo Motor 400W 3000r/min HF-KP43 HF-KP43B

Product Name: Low inertia and low power servo motor
Product model: HF-KP43B
Servo motor series: low inertia, low power.
Rated output: 0.4kw.
Rated speed: 3000r/min.
Electromagnetic brake: with.
Shaft end specifications: standard (straight shaft).
Features: Low inertia is widely used in general machinery.
IP rating: IP65.
Application example:
1. Belt drive.
2. Industrial robots.
3. Assembly machinery.
4. Industrial sewing machine.
5. X-Y workbench.
6. Food processing machinery.
7. Semiconductor manufacturing equipment.
8. Knitting machines and embroidery machines.

Features of Mitsubishi Servo Motor MR-J3 series:
Mitsubishi Motors MR-J3 series has USB and RS-422 serial communication functions. It is possible to perform parameter setting, trial operation, status display monitoring and gain adjustment through a personal computer installed with servo setting software. This product has a high level of Self-tuning function and advanced vibration suppression control function.
The high-performance servo motor encoder matched with the MR-J3 series adopts an absolute position encoder with a resolution of 262144 pulses/revolution, and the speed loop frequency response is increased to 900HZ. It has high-speed/large torque characteristics, so it is better than MR-J2S. The series has the ability to perform higher precision control.
A variety of series of servo motors adapt to different control needs. The encoders on the motors all support ABS mode. As long as an additional battery is added to the servo amplifier, an absolute position system can be formed.
The more powerful servo setting software MR-configurator is more convenient to use and has precise mechanical analysis functions.
