MAX31855 K Type плата термопары читаемый модуль датчика температуры для Arduino от 200 ℃ до +

MAX31855 K Type плата термопары читаемый модуль датчика температуры для Arduino от 200 ℃ до +

Features:

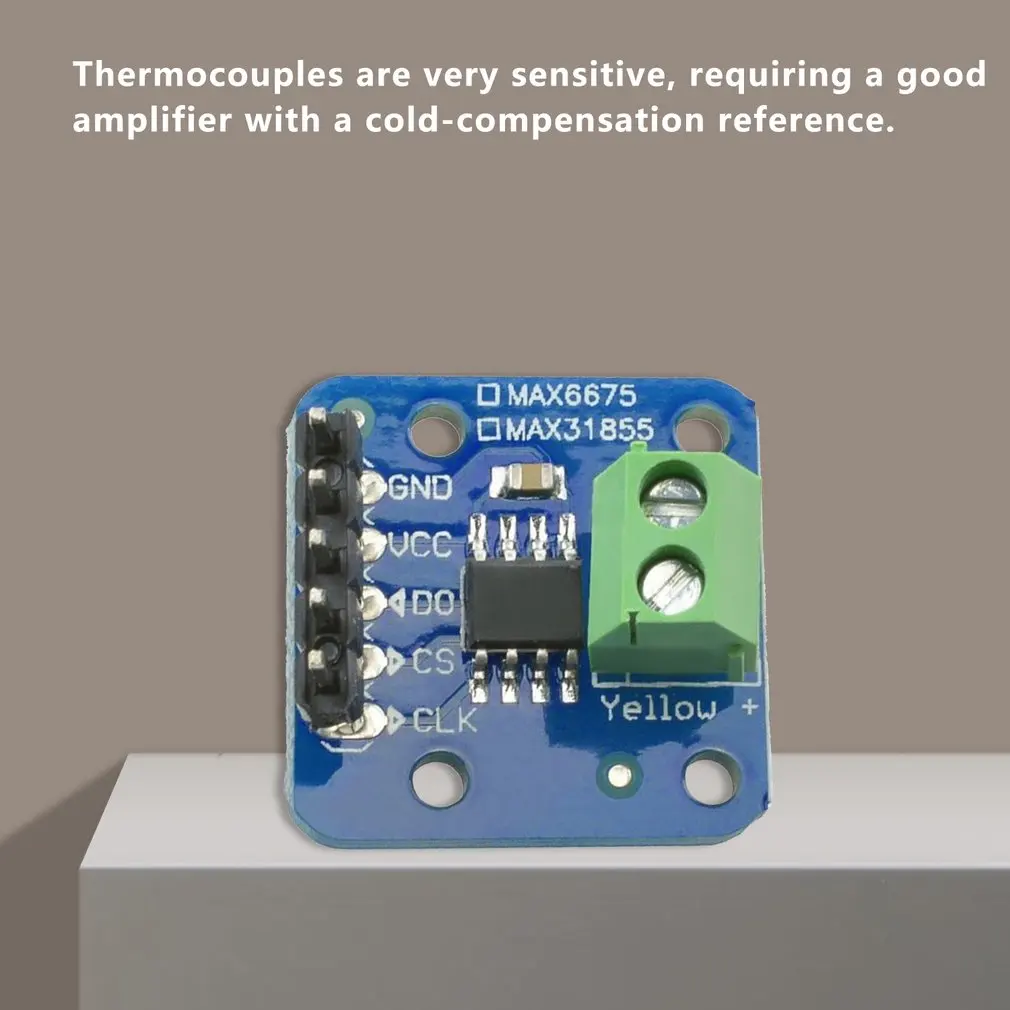

1.Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference.
2.This product does everything for you, and can be easily interfaced with any microcontroller,
even one without an analog input.
3.This board has the chip itself, a 3.3V with 10uF bypass capacitors and level shifting circuitry,

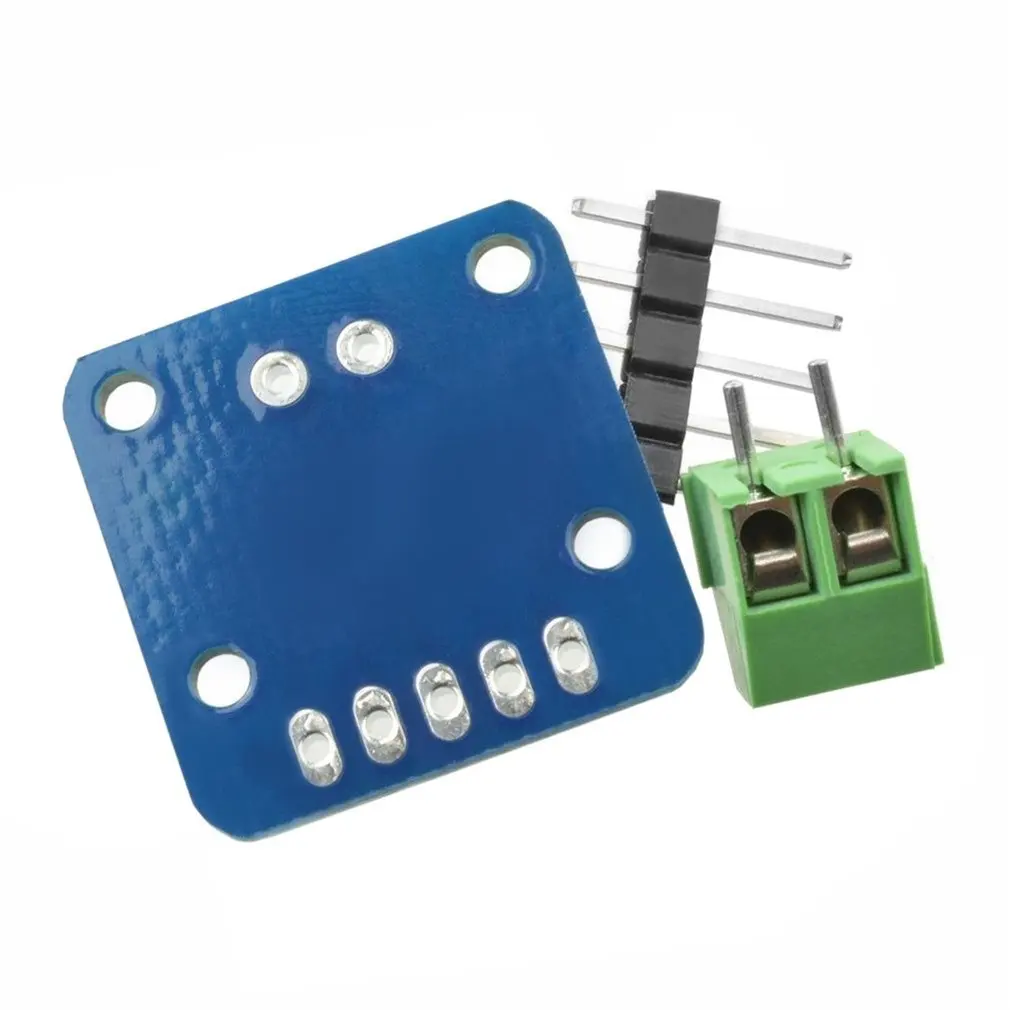

4.Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any
breadboard or perfboard).

Specification:
Material: Electrical components
Color: blue&green
Measurement temperature range: minus 200 degrees Celsius to 1350 degrees Celsius above zero
SPI interfaces, high-speed transmission
The input voltage is 3-5v DC
Direct digital output temperature value, no amplifiers, no ADC
14-bit resolution, 0.25 degree temperature accuracy

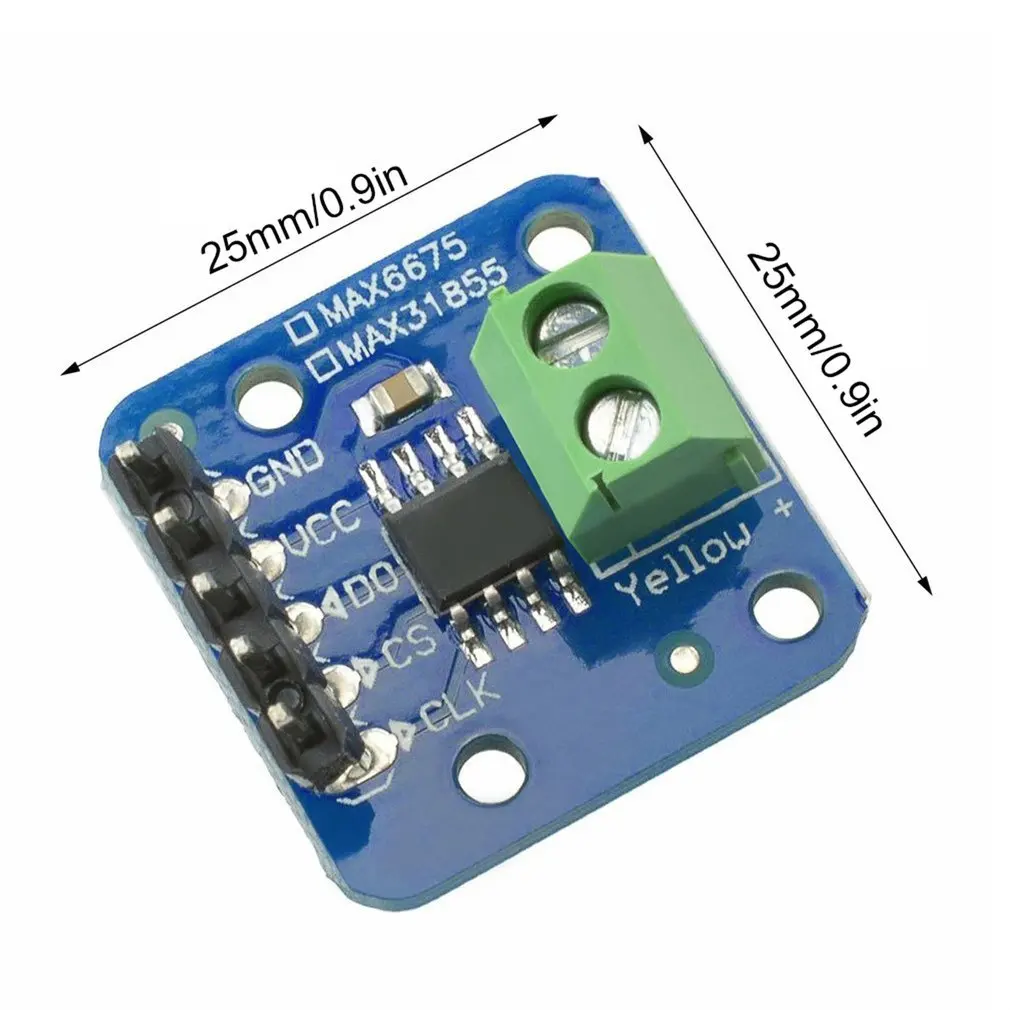

Size: 2.5*2.5cm

Note
1.Works with any K type thermocouple
2 K thermocouples have about ±2°C to ±6°C accuracy
4.Internal temperature reading
5.3 to 5v power supply and logic level compliant!
6.SPI data output requires any 3 digital I/O pins.

Packing Included
1 x MAX31855 K-Type Temperature Sensor Module
