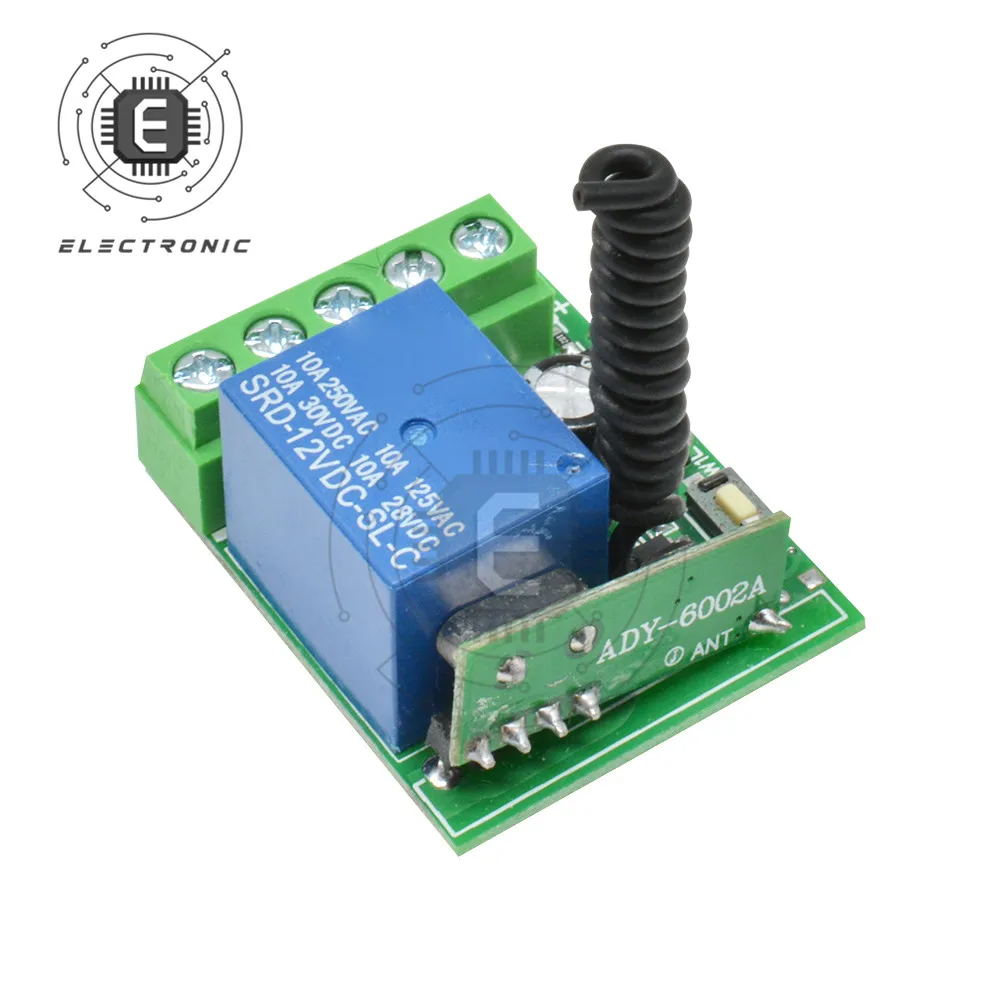

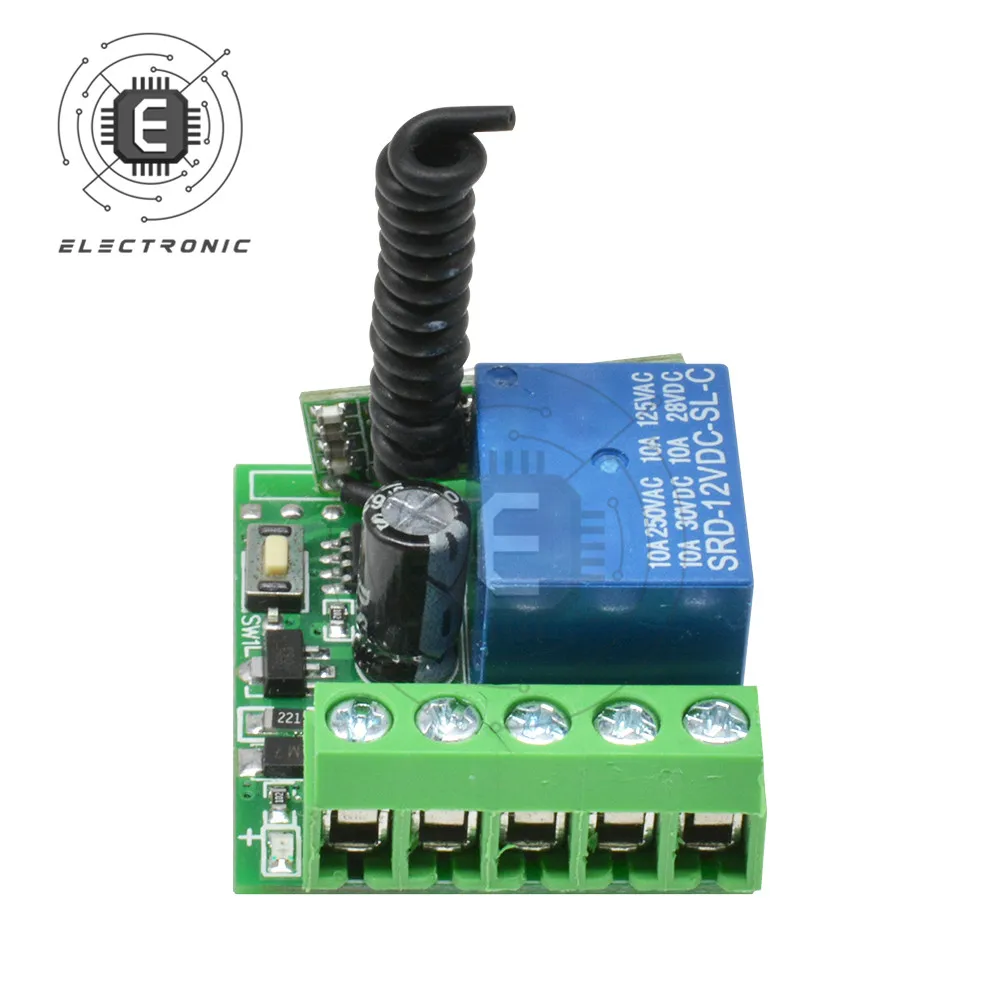

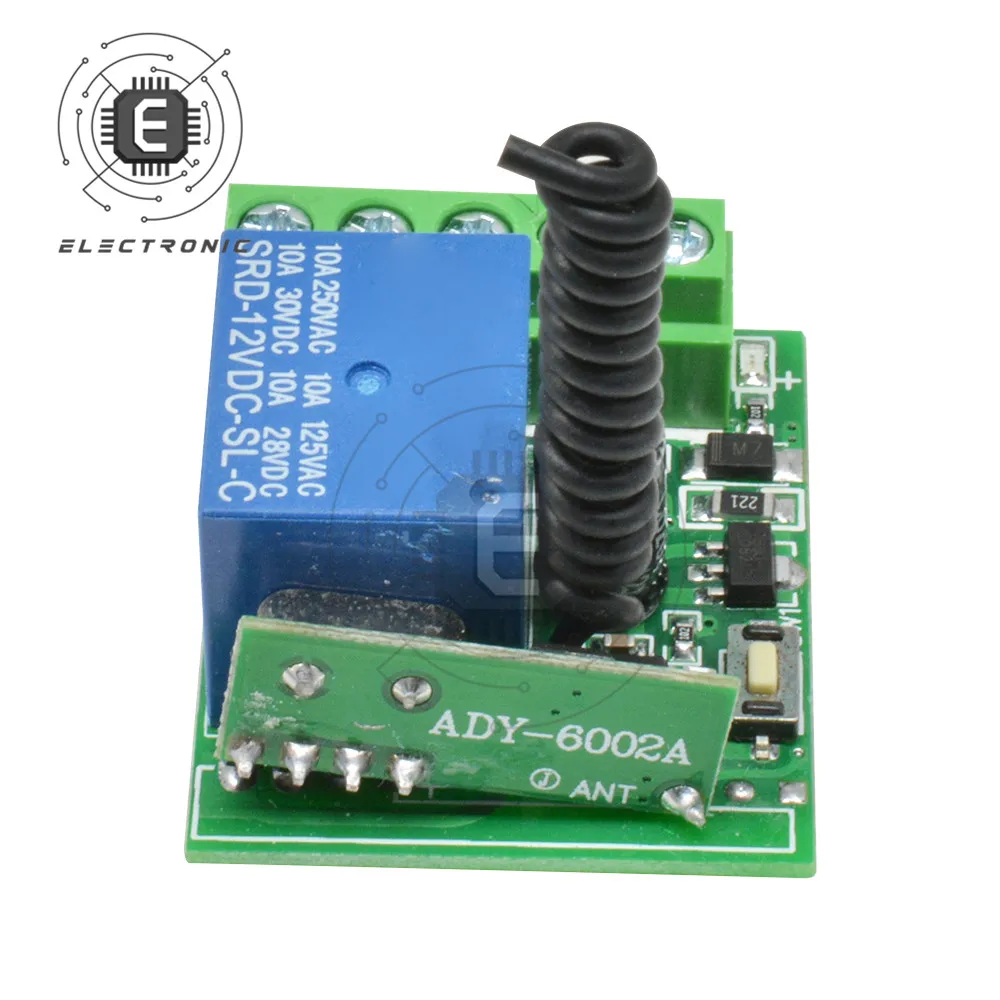

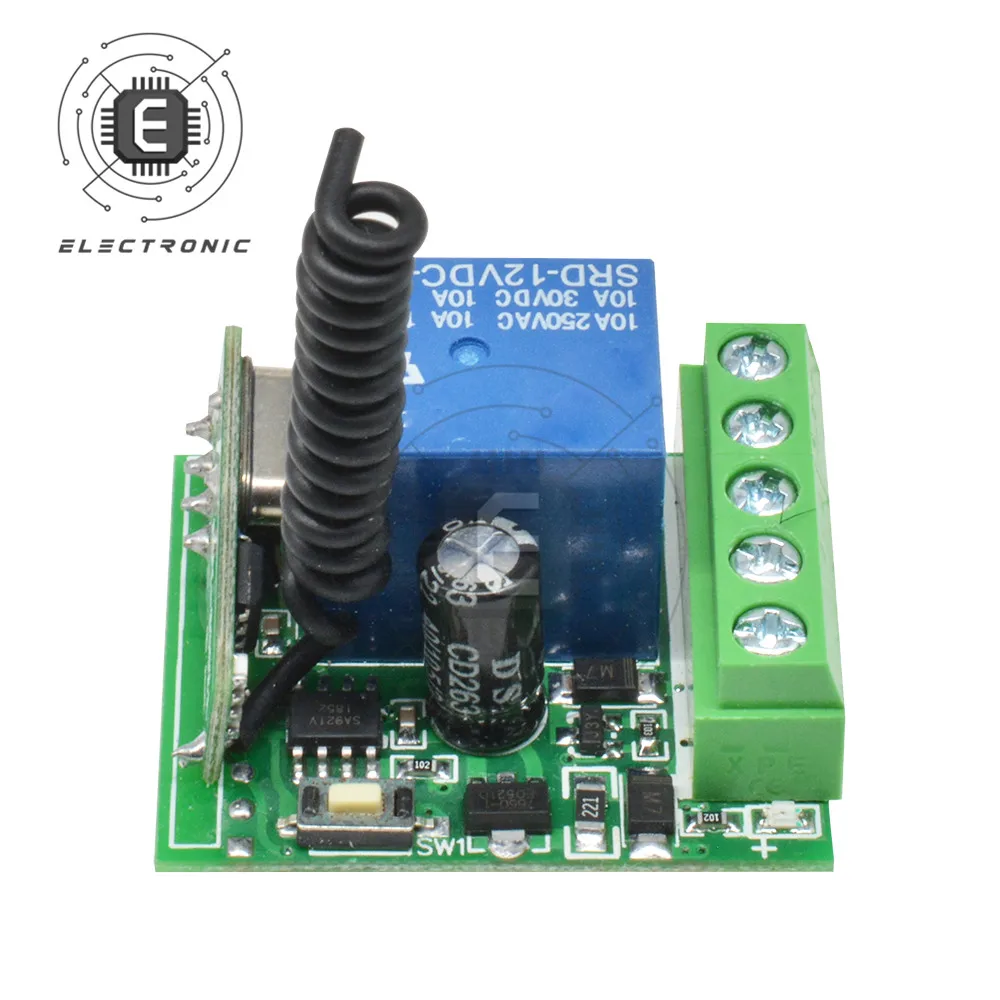

1pcs KR1201B-4 433MHz DC 12V 1 Relay Receiver Module Universal Wireless Remote Control Switch

Receiver specifications:

1. Model: KR1201B-4.

2. Modulation mode: ASK

3. Input voltage: DC 10~14V direct current

4. Radio frequency: 433MHz

5. Quiescent current: 5mA.

6. Receiving sensitivity:> 97dbm.

7. Remote control range:> 100 meters (air and wide environment).

8. Wired connection mode: fixed terminal.

9. Decoding mode: MCU software decoding. Total load power: 10A

10. Working mode: Jog, self-locking, interlocking mode, delay mode 5, 10, 15, 20 seconds

11. Load power: 1000W (Note: Inductive load such as water pump motor greater than 50W needs to add a contactor)

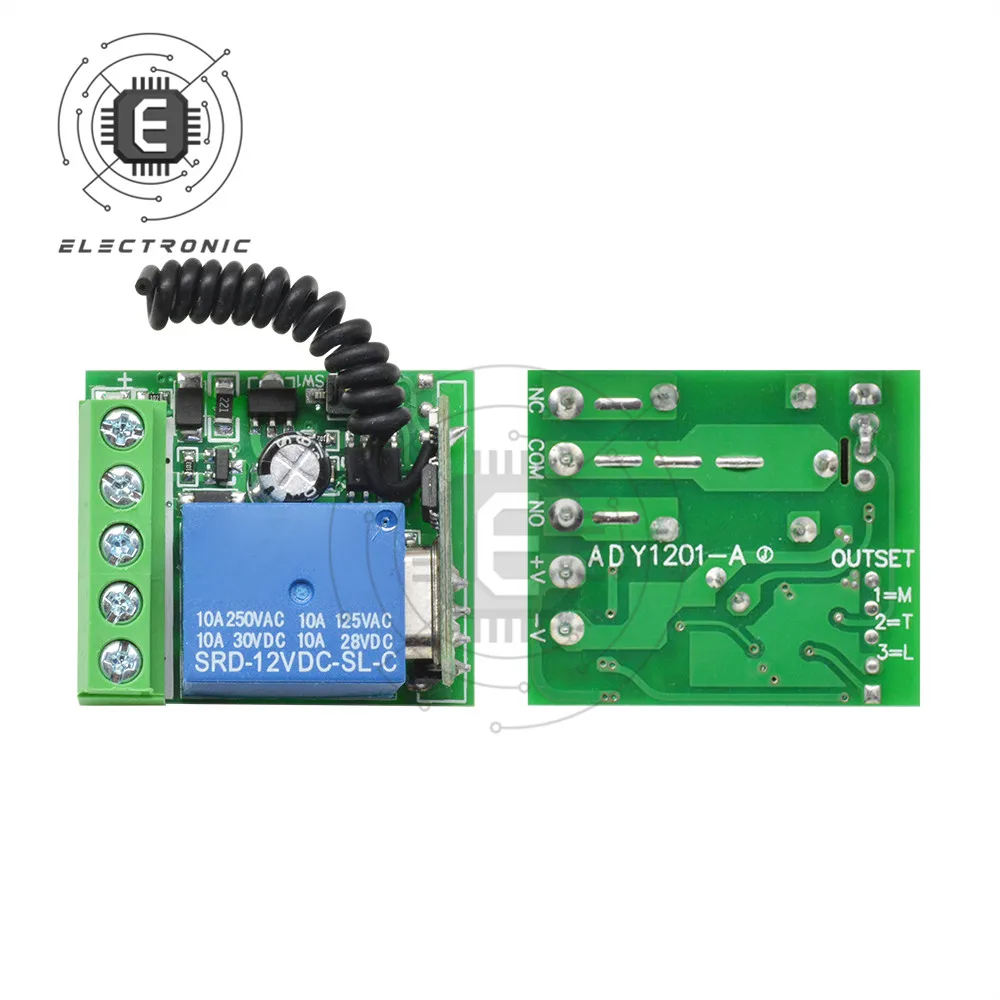

Wiring tips:

1. +: Connect to the positive pole of the 12V power supply;

2. -: Connect to the negative pole of the 12V power supply;

3. NO: output terminal; normally open terminal of the relay;

4. COM: output terminal; relay common terminal;

5. NC: output terminal; normally closed terminal of the relay;

Operating instructions for working mode:

Press the code matching button on the control panel 8 times continuously, and the LED indicator will flash 8 times. At this time, the LED indicator will flash 8 times continuously, then the code is cleared and all the remote control key codes learned before are cleared. According to the prompts, select the desired working mode [number of times] for code matching.

1. Jog function:

Press the code matching button on the control panel once, and the LED indicator will flash once. After the LED indicator lights up, press the remote control button that needs to be coded. The control panel LED indicator flashes 3 times in succession and the code matching is successful.

2. Self-locking function:

Press the control panel pairing button twice, and the LED indicator will flash twice. After the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED will flash 3 times in succession. The code pairing is successful.

3. Interlock function:

Press the control panel pairing button 3 times, the LED indicator flashes 3 times, and the LED indicator lights up. Press the remote control button that needs to be coded, and the LED indicator on the control panel flashes 3 times in succession.

4. Delay 5 seconds:

Press the code matching button on the control panel 4 times, the LED indicator flashes 4 times. After the LED indicator lights up, press the remote control button that needs to be coded, and the control panel LED indicator flashes 3 times in succession.

5. Delay 10 seconds:

Press the control panel pairing button 5 times in a row, and the LED indicator will flash 5 times. After the LED indicator lights up, press the remote control button that needs to be paired. The control panel LED indicator flashes 3 times in a row and the code is successfully matched.

6. Delay 15 seconds:

Press the code matching button on the control panel 6 times continuously, and the LED indicator will flash 6 times. After the LED indicator lights up, press the remote control button that needs to be coded, and the control panel LED indicator flashes 3 times in a row, and the code matching is successful.

7. Delay for 20 seconds:

Press the code matching button on the control panel 7 times, the LED indicator flashes 7 times. After the LED indicator lights up, press the remote control button that needs to be coded, and the control panel LED indicator flashes 3 times in succession.

Note: Set the delay mode, if you keep pressing the button while in use, the delay will continue without stopping
