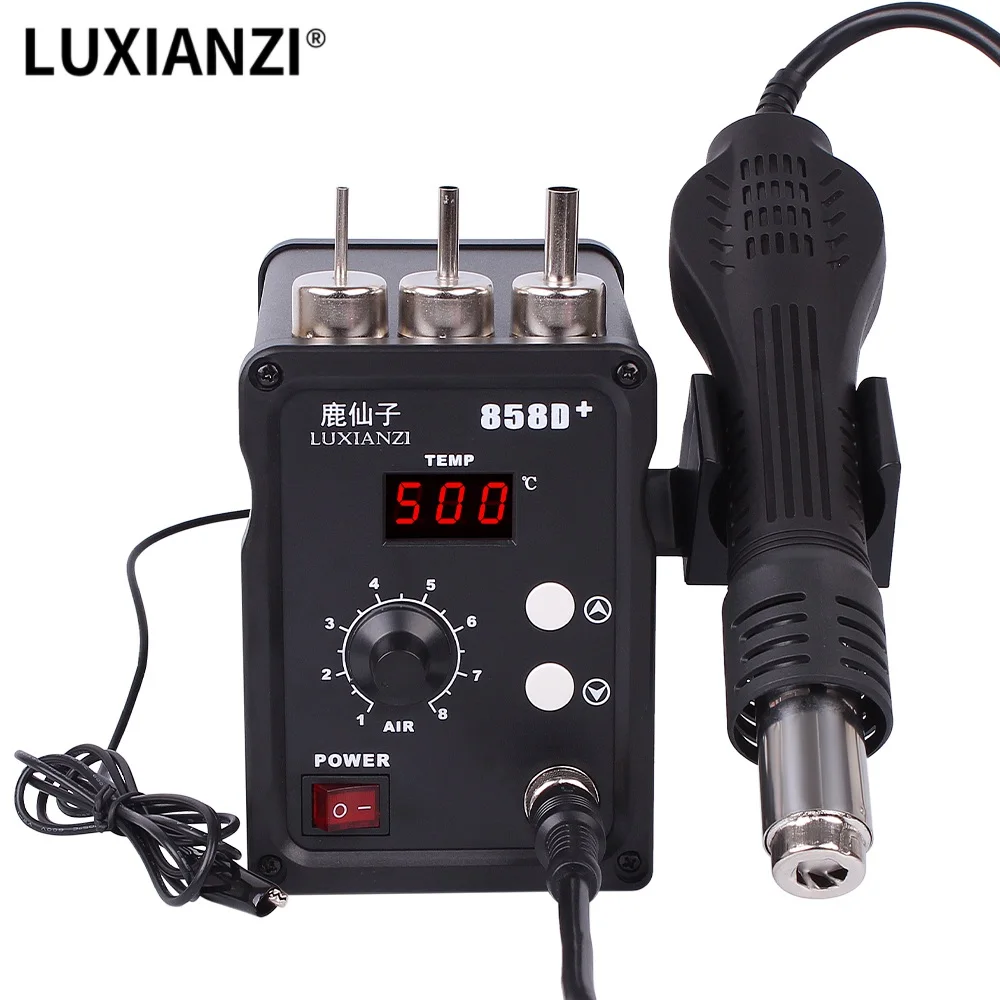

LUXIANZI Hot Air Gun Soldering station

LCD Digital Display Welding Rework Station
Quick Heat Smart cooling For BGA PCB IC Repair

Standard configuration:

1 x Main Unit
1 x Handle
3 x Air Nozzle
1 x Power Wire

If you need 110V ，We can customize for you ，you need to pay extra shipping.

Feature:

• 8-speed air volume and temperature to free adjust.

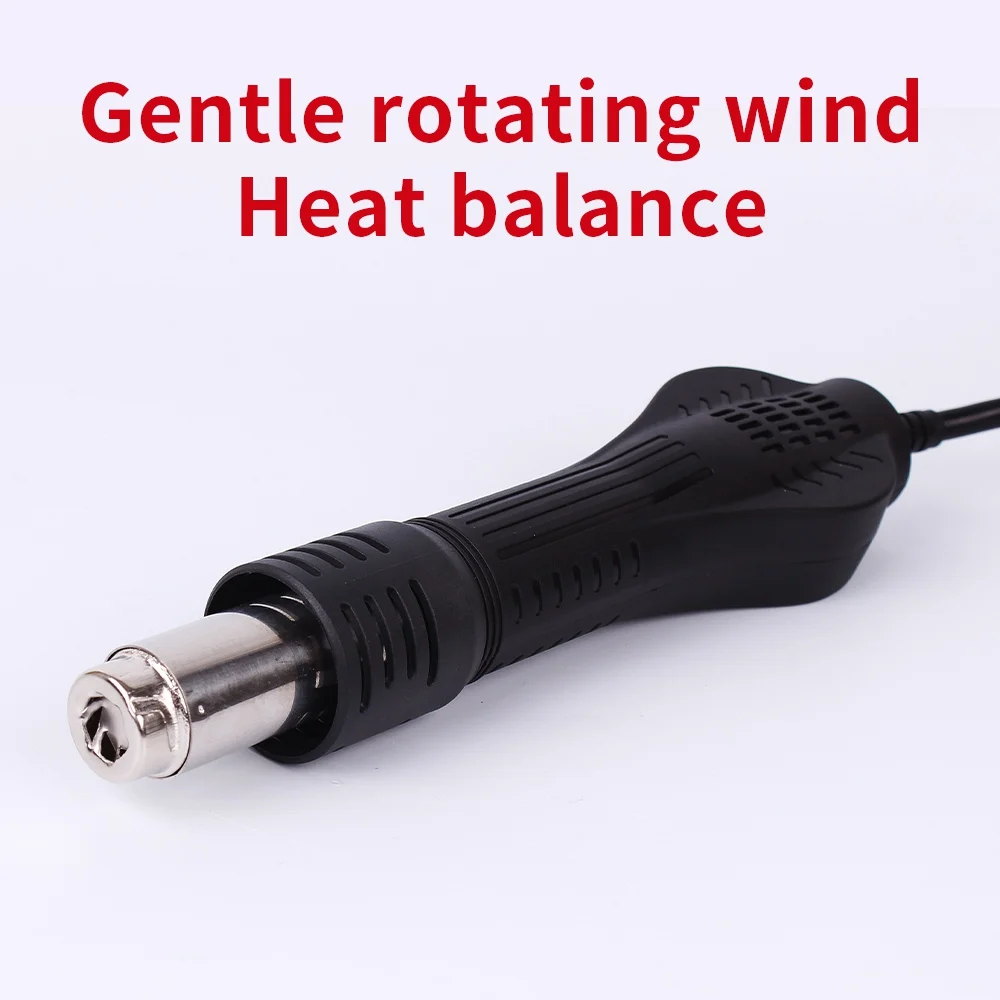

• Magnetic induction brushless wind, automatic constant temperature sleep, prevent component damage.

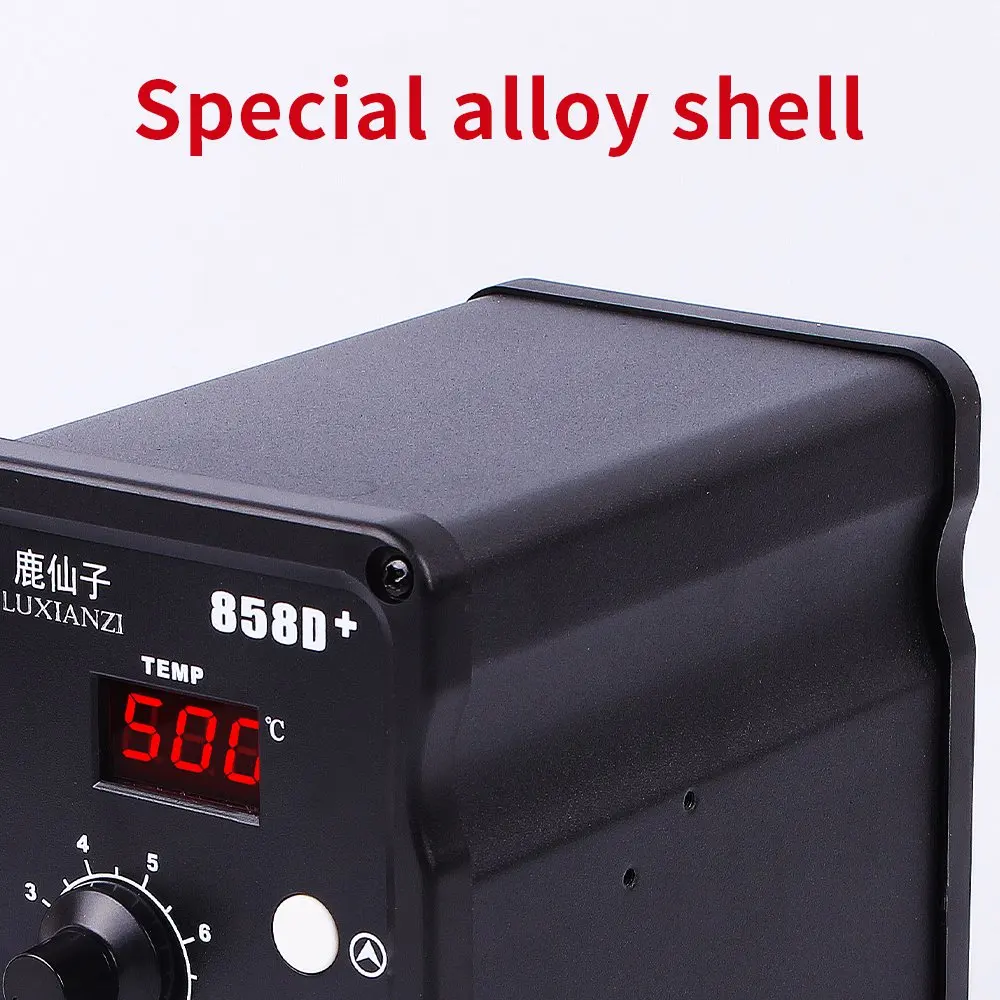

• Special alloy, frosted and fine hand feel, wear-resistant, drop-resistant and high-temperature resistant.

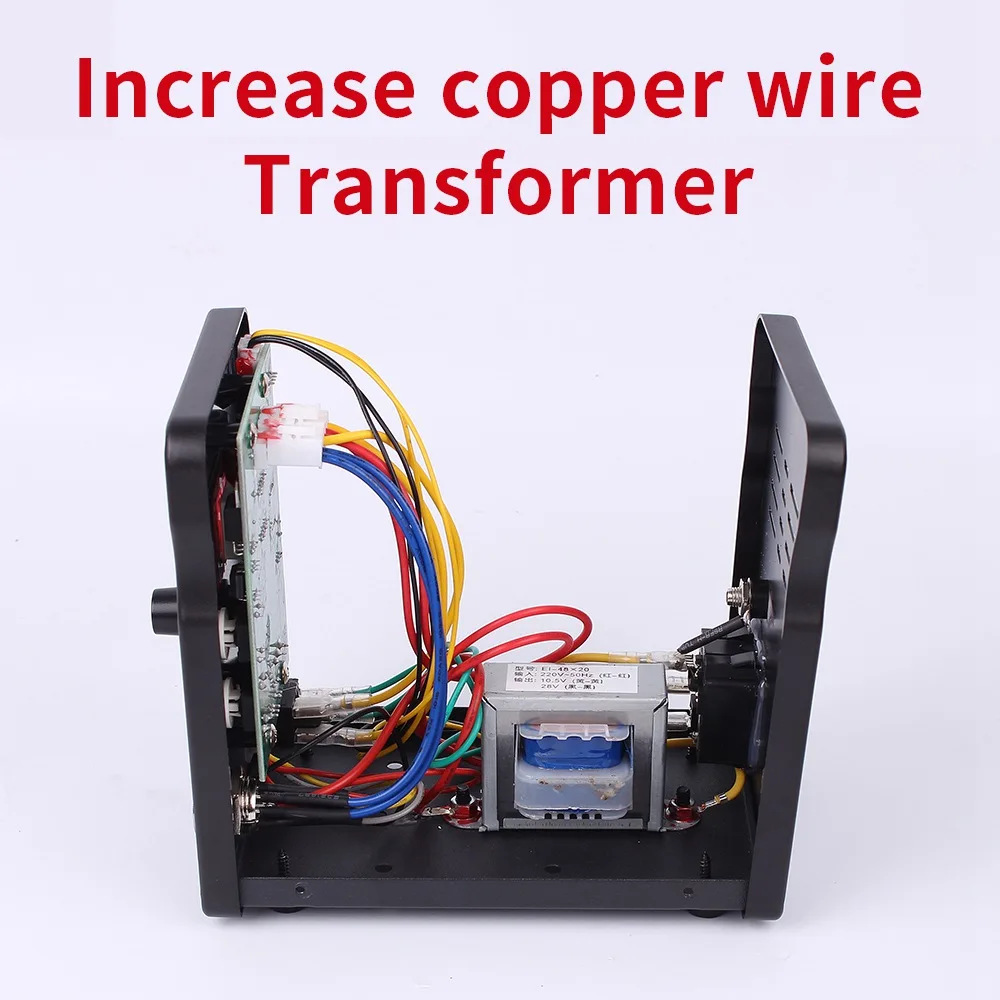

• Increase copper wire transformer, enough power; high-quality circuit board, fast heat dissipation, prolong life.

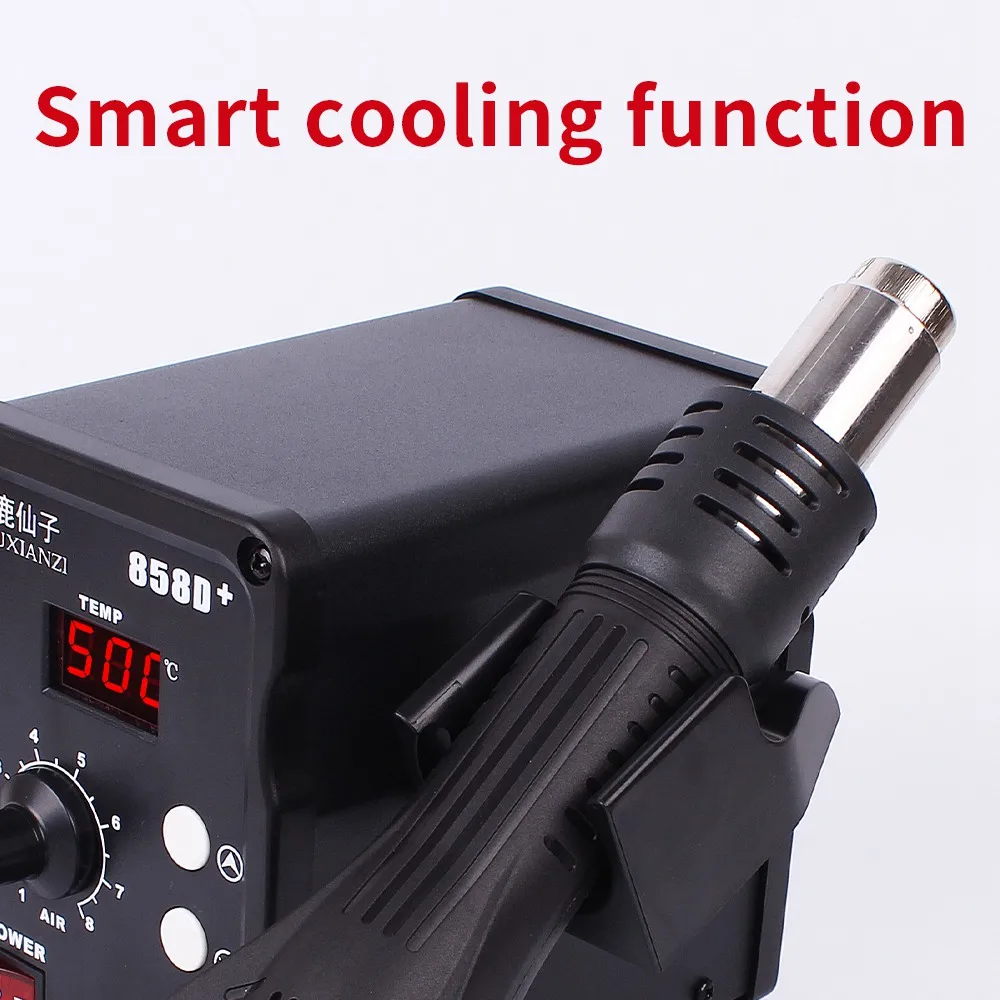

• Smart Cooling Function: The handle of the air gun is equipped with a ball switch, when the handle is up, the air gun automatically enters the dormant state; When the handle is down, the air gun immediately resumes working condition and the temperature rises rapidly.

Plug Type: EU/US/UA/UK

If you choose EU plug, the order will send EU-F plug by default.

If you need EU-C plug, you can contact us.

A Set：

①-0.1mm 15 meters long Copper Solder Soldering Wire
②-10g Rosin for welding
③-Cleaning sponge
④-50g Solder Paste
⑤-Wooden handle brush
⑥-15# Anti-static tweezers
⑦-11# Anti-static tweezers

B Set：

①-0.1mm 15 meters long Copper Solder Soldering Wire
②-10g Rosin for welding
③-Cleaning sponge
④-50g Solder Paste
⑤-Wooden handle brush
⑥-15# Anti-static tweezers
⑦-11# Anti-static tweezers
⑧-3 meters tin wire
⑨-Anti-electric bracelet
⑩-8pcs Repair mobile phone tools

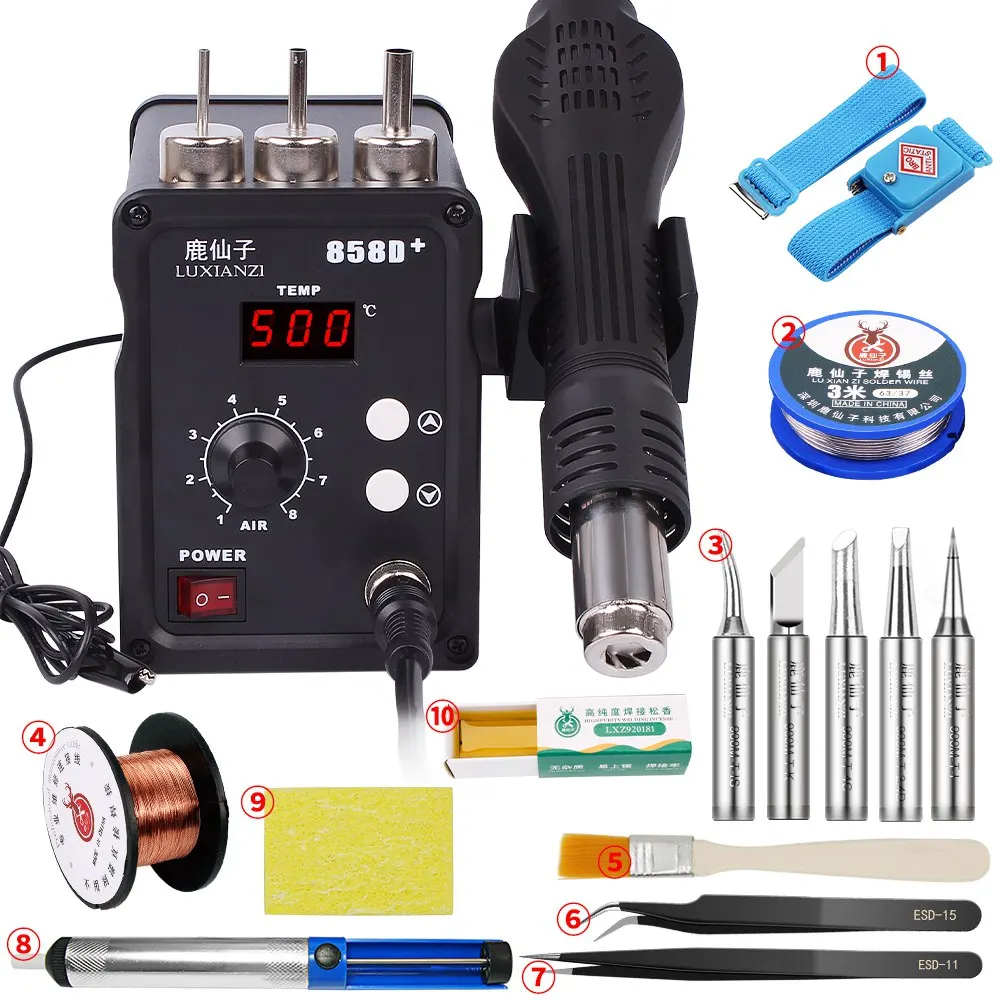

C Set：

①- Anti-electric bracelet
②-3 meters tin wire
③-5pcs Soldering iron tip （K、IS、 I 、4C、 2.4D ）
④-0.1mm 15 meters long Copper Solder Soldering Wire
⑤-Wooden handle brush
⑥-15# Anti-static tweezers
⑦-11# Anti-static tweezers
⑧-Tin sucker
⑨-Cleaning sponge
⑩-10g Rosin for welding

Specification:

Brand: LUXIANZI
Model: 858D+/858
Display: With digital display (858D+) / Without digital display (858)
Voltage: 220V 50HZ
Power: 70W
Airflow type: Brushless fan soft wind
Air flow volume: 120 liters/min
Temperature range: 100℃~500℃ (858D+) / 100℃~450℃(858)
Noise: ＜45db
Heating element: skeleton ceramic heating core
Handle component length: 120cm (including handle line)

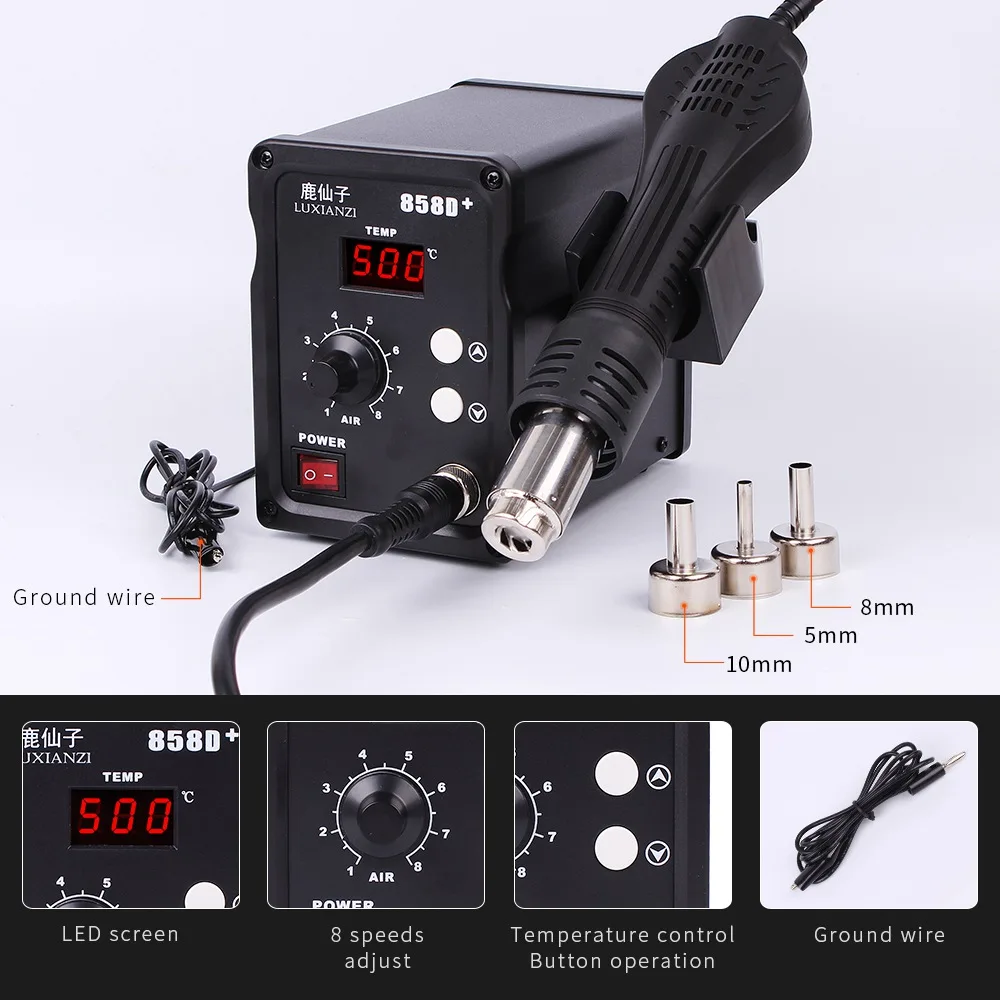

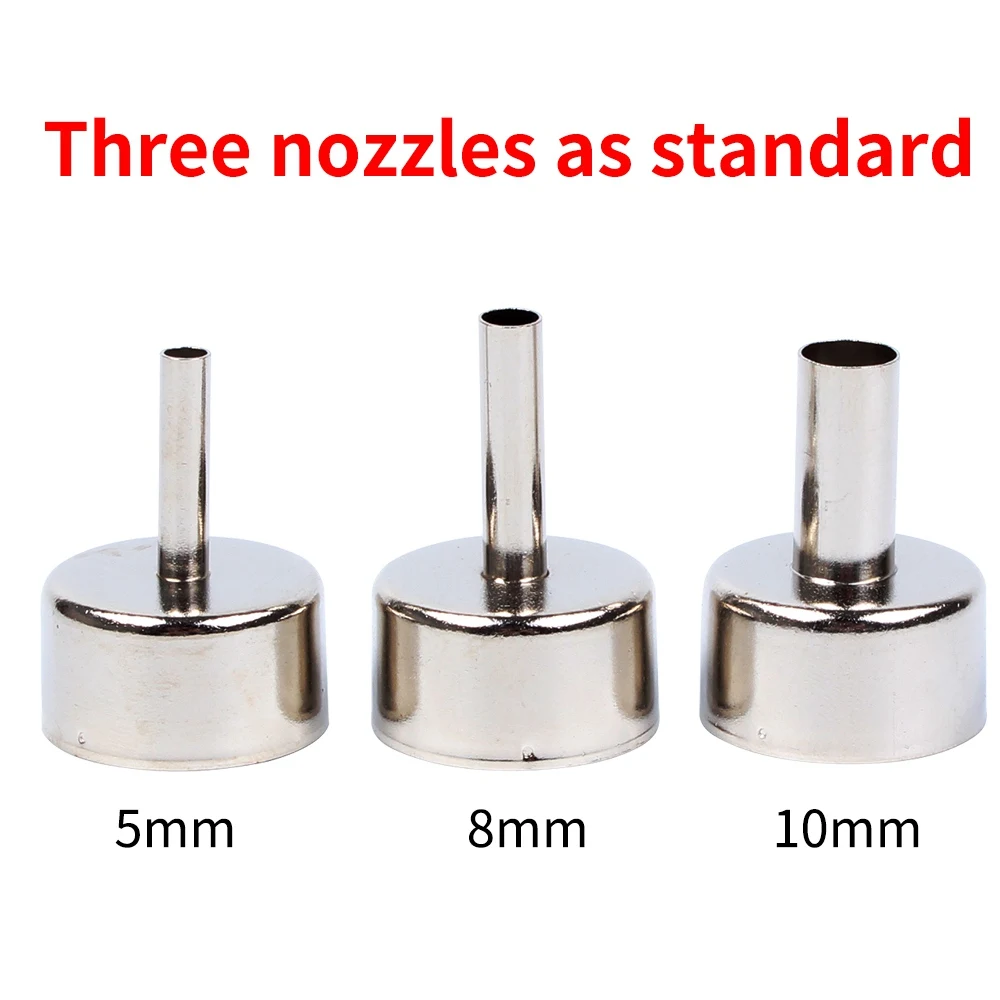

Size of nozzles: 5mm, 8mm, 10mm

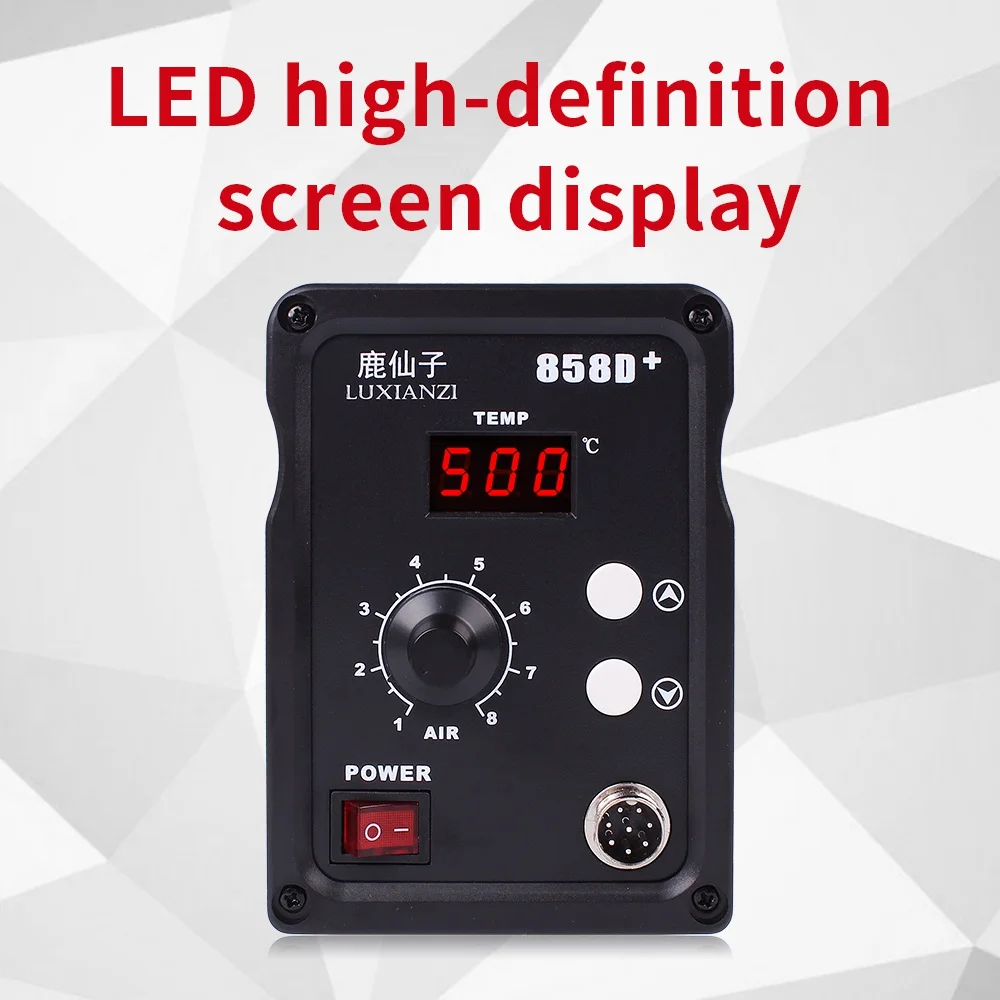

Button instructions

①Temperature display screen
②Speed control button
③Host switch
④Temperature increase button
⑤Temperature reduction button
⑥Air gun handle socket
⑦District cooling holes
⑧Ground wire access socket
⑨Personal power socket
⑩Fuse

Safe and intelligent start-stop technology

The handle is equipped with an induction switch, when the air gun is placed on the bracket, it automatically enters the cooling standby mode, when the air gun is picked up, it will quickly heat up to the set temperature

Pick up-Automatically enter working mode
Put back-Automatically enter standby

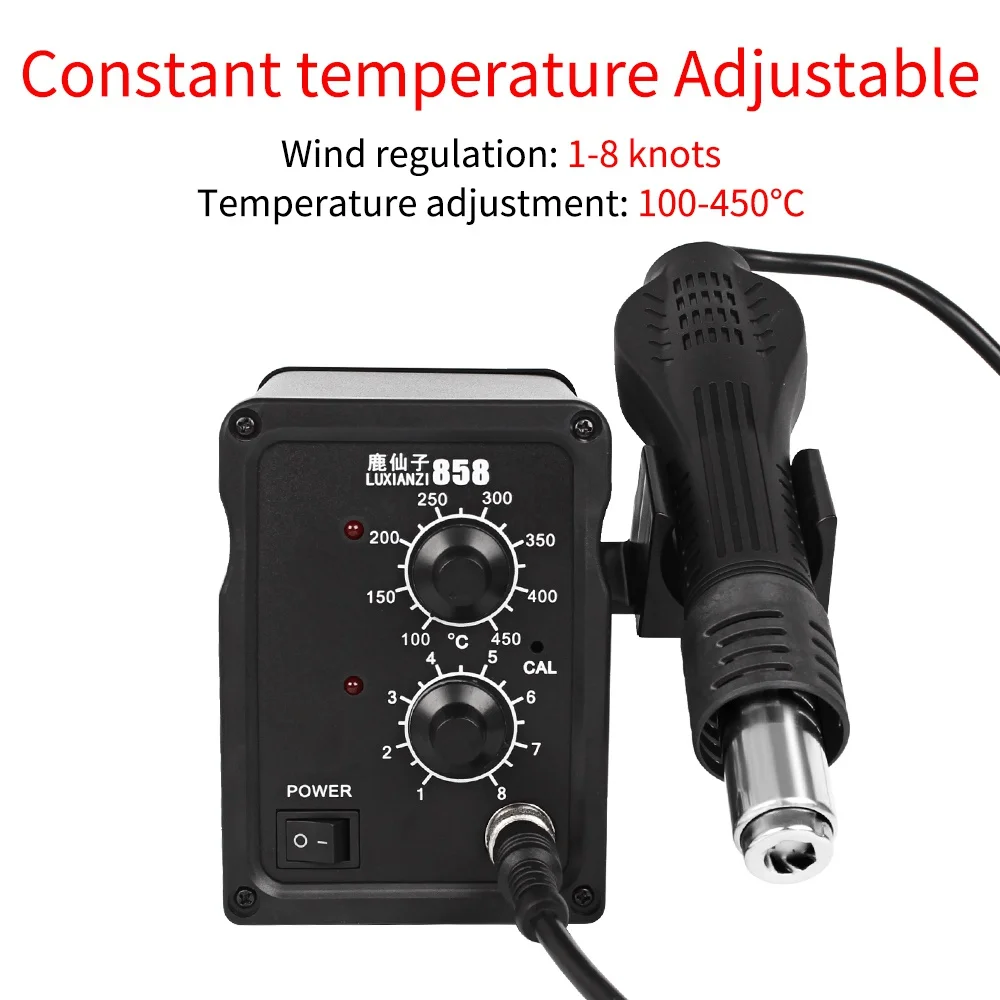

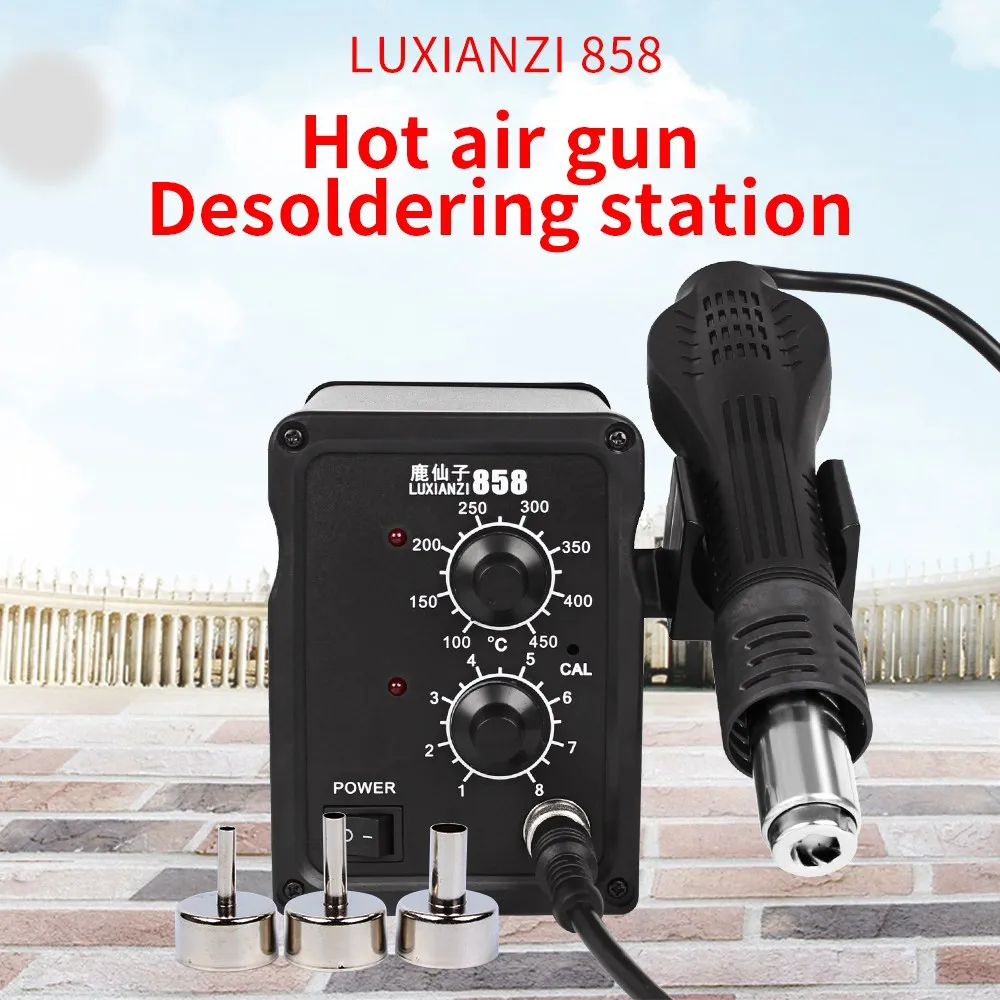

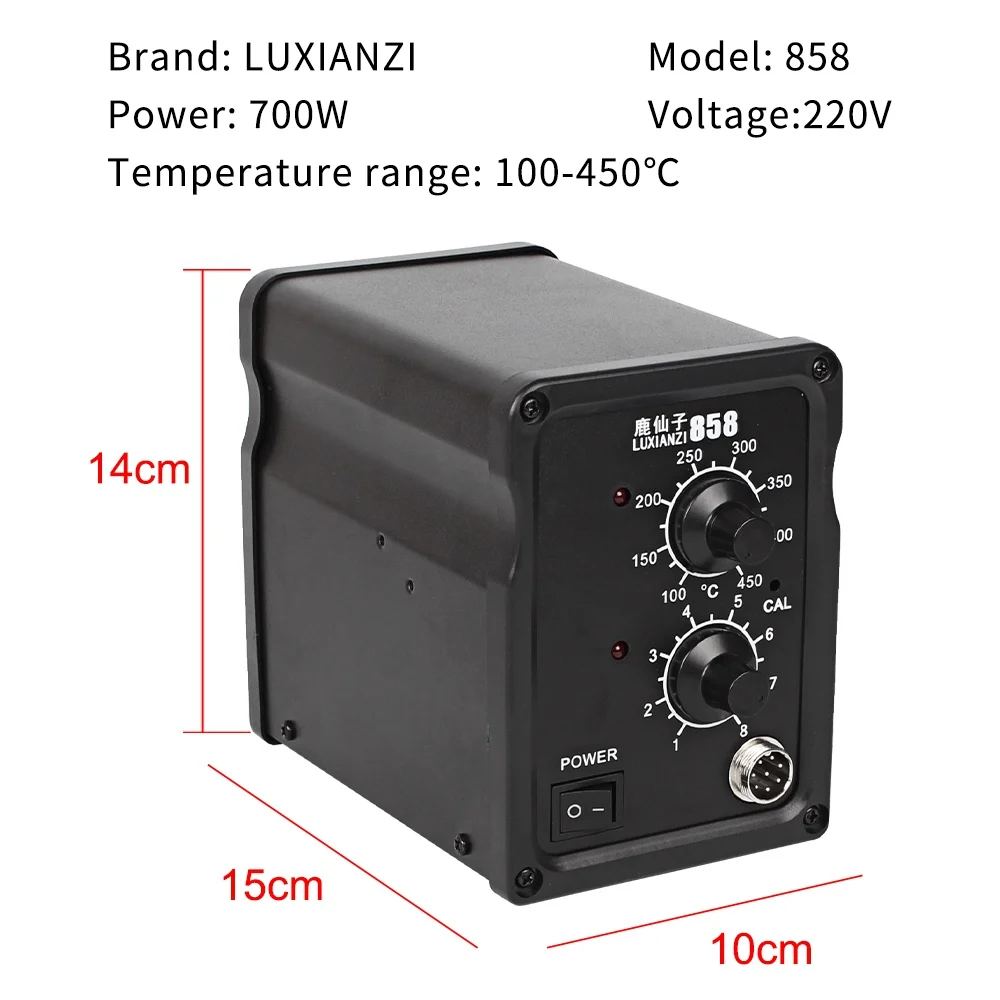

858

Button instructions：

①-Temperature Adjust
②-Eight gears wind force
③-Switch
④-Air gun bracket
