1шт Мини AC-DC 110V 120V 220V 230V на 5V 12V плата преобразователя модуля источника питания изолированного переключателя 300 мА 700 мА on.

1шт Мини AC-DC 110V 120V 220V 230V на 5V 12V плата преобразователя модуля источника питания изолированного переключателя 300 мА 700 on.

90593

Note: The color of the transformer will be change depend on Different batch.
Working temperature: -20 degrees to 70 degrees, the advanced Aihua capacitor temperature is 105 degrees 10,000 hours, 70 degrees is greater than 5 years, and normal temperature is about 20-50 years (not recommended for use above 70 degrees).

Input characteristics:
Input voltage range: AC45V-277V DC70V-390V

No-load power: <0.05W Full load power: <4W
Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of large currents in small spaces.
Output voltage: 5V +-0.15V no load and full load, light load minus 0.1V, rebound when heavy load, 50% load ripple 60mV
Output current: 5V0mA-700mA,  enters constant current mode when fully loaded,
Test resistance: 7 ohms (4.9V)
Output indicator: red light
Output power: 3.5W, efficiency is about 70-80%
Output protection: over voltage, over current, over temperature, over work, short circuit protection, etc.

Include: 1 x module

Module Size: approx. 23.5*16*13.5mm

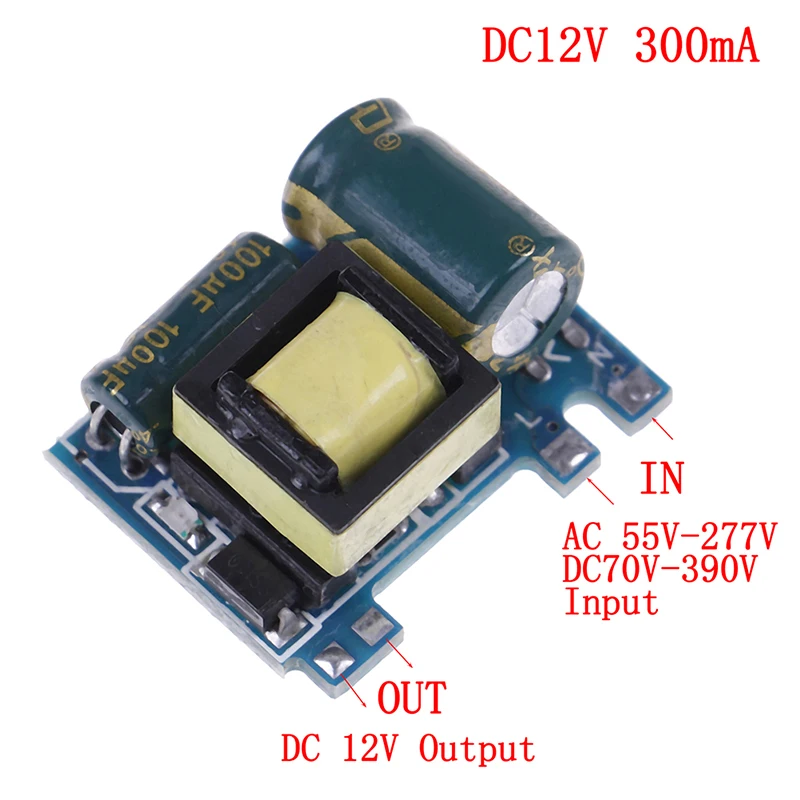

Input: AC 55V-277V/DC 70V-390V
Output: DC 12V/300mA(Max)
Output Current: Mini/0mA; Max/300mA,output indicator/1mA/red light
Output Ripple: 60mV
Output Power: 3.6W
Efficiency: about 80%
Working Temperature: -20° to +70°
