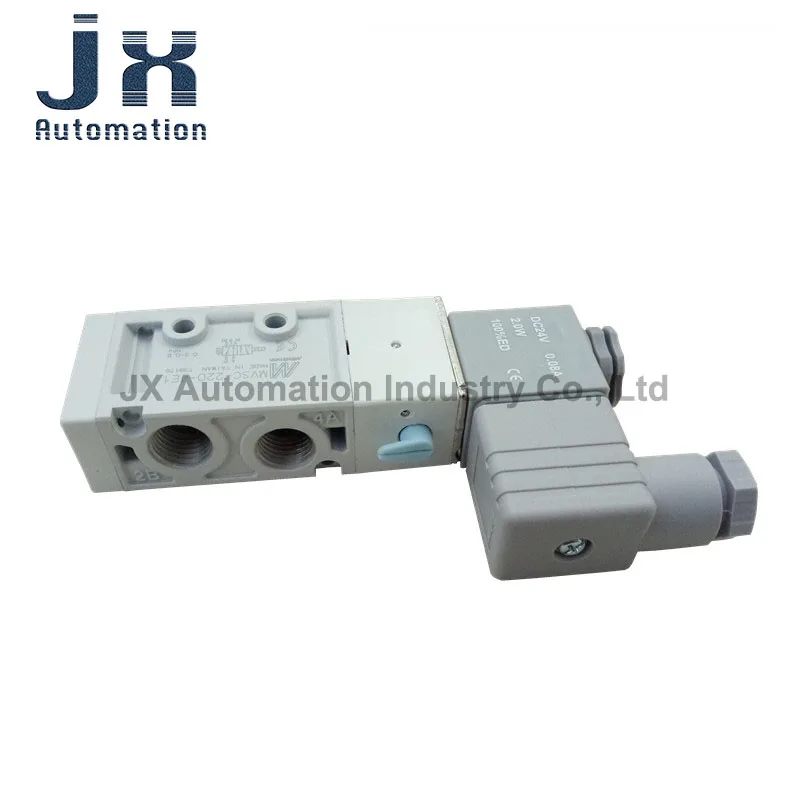

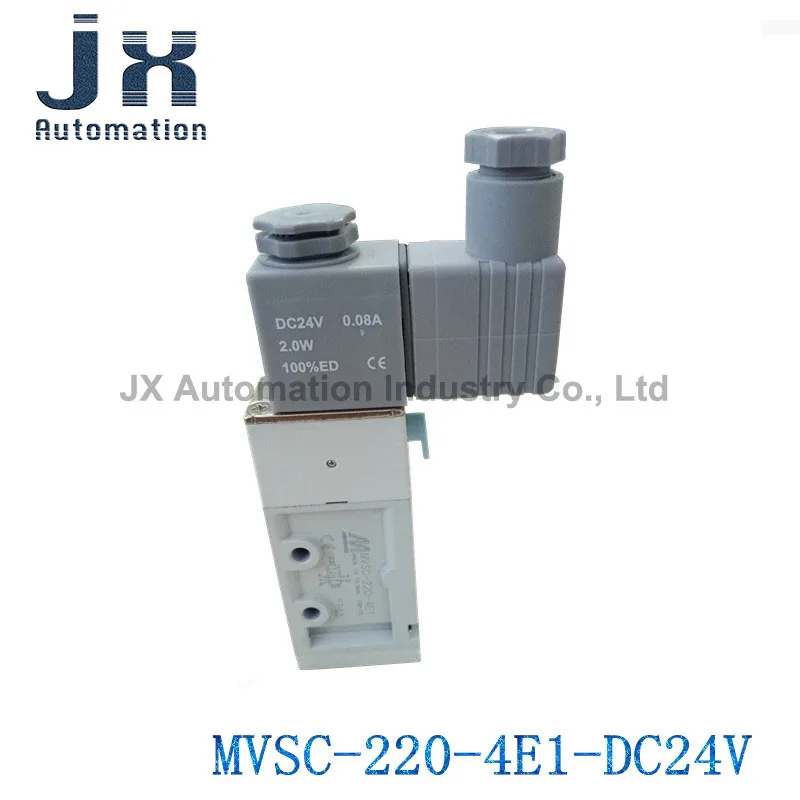

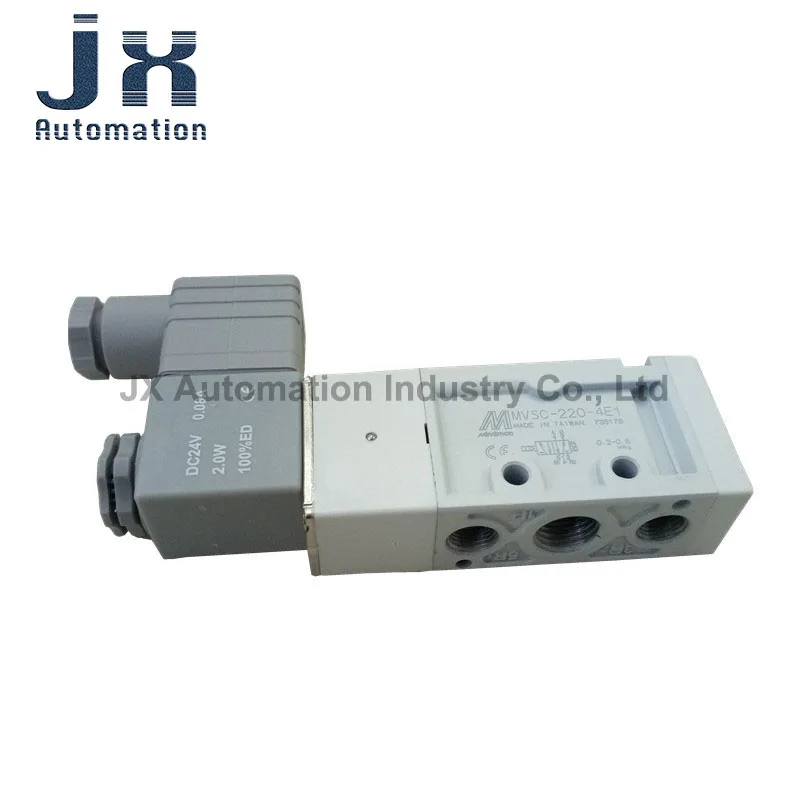

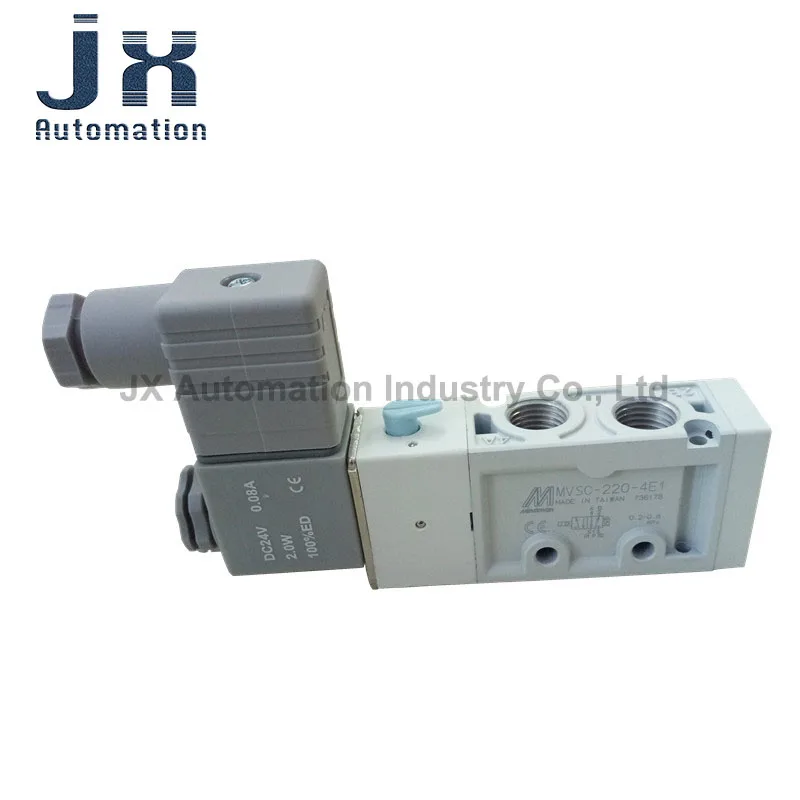

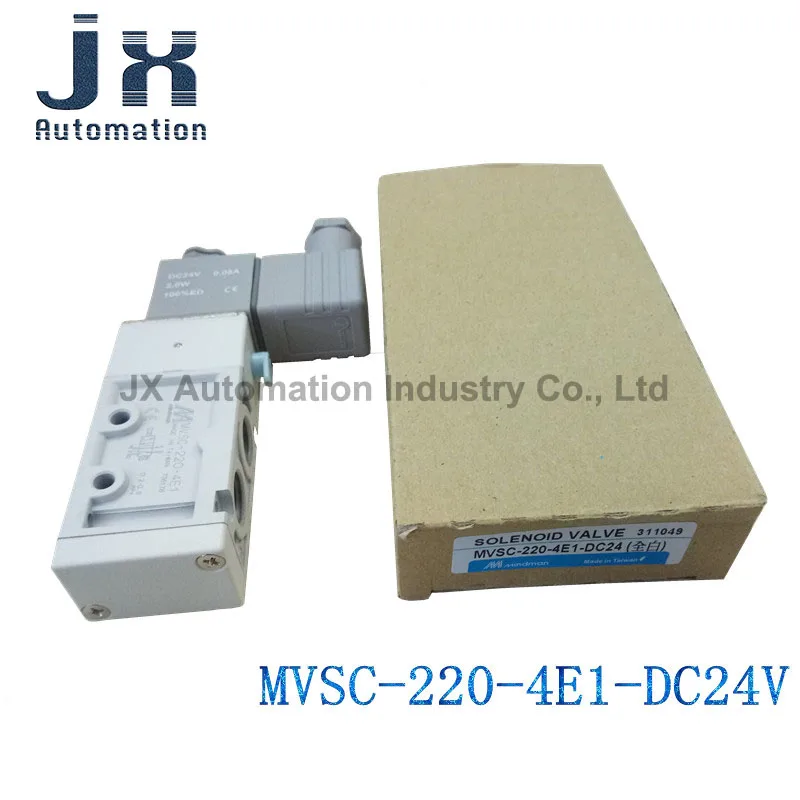

MVSC-220 series solenoid valve body width 22mm, there have 3 ported 2 position,5 ported 2 Position,5 ported 3 position for option. Port size is 1/4’’ NPT, body ported type, linking seat type, the maximum pressure is 7kgf / cm2 , Flow 710 ~ 799Nl / min (5/3)

Model MVSC-220-4E1 MVSC-220-4E2 MVSC-220-4E2C.P.R Bore No. 6A,8A Port size Rc1/8,Rc1/4 No.of port 5 No.of position 2 3 Medium Air Operating pressure range 2~7 kgf/cm² 3~7 kgf/cm² Operating pressure (LP) 0~0.7Mpa Effective orifice 18mm² 16mm² Ambient temperature -5~+50℃(No freezing) Response time 30ms Voltage AC110V, 220V(50/60)Hz, DC24V Power consumption AC=4.8/4.4VA ,6/4.9VA,DC=2W Available voltage range ±10% Insulation class F grade Weight 184g 292g 338g   Solenoid valve is a basic components used to control the fluid , belonging to the actuator, not limited to used in hydraulic, pneumatic. Solenoid valve used to control the direction of the air flow, the factory machinery are generally controlled by hydraulic cylinders, so the solenoid valve is needed.
