1PC DIY 433 Mhz 1CH RF Relay Receiver Universal Wireless Remote Control Switch Micro Module LED Light Controller DC 3.6V-24V |

1PC DIY 433 Mhz 1CH RF Relay Receiver Universal Wireless Remote Control Switch Micro Module LED Light Controller DC 3.6V-24V |

A

Features:
Wireless control LED lamp string, Christmas tree light string, light control switch
Long range working voltage
Ultra low power,High sensitive response
Specification:
Working voltage: DC 3.6V~24V
Maximum load: 2A
Static current: 3.6 mA ~ 5.5mA
Working frequency: 433MHz
Reception sensitivity: ≥ -107dBm
Output DC3.6V~DC24V
Size: 22.5 mm x 11mm x 8mm (length × width × high)
Mini size support coding format 1527 learning code

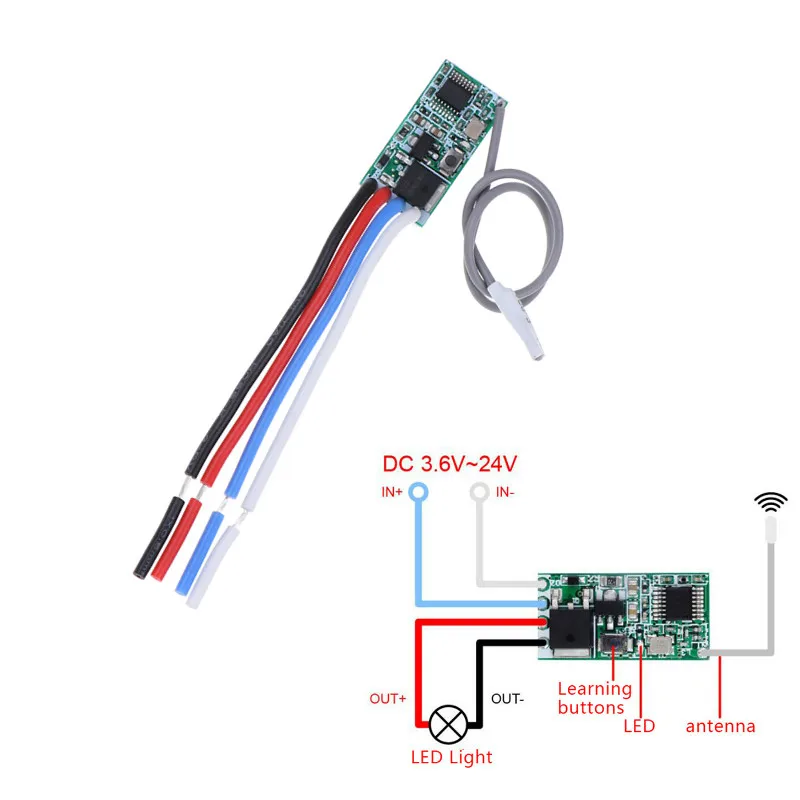

Input: DC3.6V~DC24V
Output: DC3.6V~DC24V
Modulation mode:ASK (superheterodyne)
Appearance size: 22.5mmx 11mm x 8mm (length × width × high)
Number of stored remote controls: ≤ 10
Working mode: Momentary, Toggle, Latching Mode
Learning style: Learning Button
Working temperature: -20 degrees 80 degrees
Package Include:1 pc * Light Switch Receiver Module

B

Application environment:
Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Details:
[Receiver module ] Product Model: RX500
RX500 : superheterodyne wireless receiver module is receiving UHF ASK demodulators support ASK and OOK modulation. The receiver module has high sensitivity (-108dBm),
Low-power performance, along with high dynamic range (greater than 60dB). Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.

Product Features:
1.Support ASK / OOK modulation, the receiver sensitivity of -108dBm;
2.Operating frequency: 433.92 MHz, bandwidth of about ± 150KHz;
3.mains input voltage range: 2.2V-5V;
     Working current:    Type :2.1mA (Requirement:VDD=5V) ; Type :2.1mA (Requirement:VDD=3V)
4. Quiescent Current: 1uA
5. Low power consumption;
6. good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification;
7. Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance;
8. multiple transmission rates, the general module for 2KHz, up to 10KHz;
9. Temperature range: -40-85 °C

Package Included: 1PC
