SHT2010 SHT2000 AC110V-220V 10A LCD Digital Hygrostat Thermostat Humidity Temperature Controller Regulator Heating Cooling Control

SHT2010 ( TouchControl)

Product name: temperature and humidity controller
Product model: SHT2010
Power supply voltage: AC 110~230V
Power supply frequency: 50/60Hz
Temperature measurement range: -20~60℃
Humidity measurement range: 0%~100%RH
Temperature measurement accuracy: 0.3℃
Humidity measurement accuracy: 3%
Output control: relay control
Control circuit current: MAX 10A

SHT2000 ( Button Control )

Product Name: Temperature and Humidity Controller
Product Model: SHT2000
Supply Voltage: AC 110~230V
Power supply frequency: 50/60Hz
Temperature range: -20~60°C
Humidity range: 0%~100%RH
Temperature measurement accuracy: 0.3 °C
Humidity measurement accuracy: 3%
Output Control: Relay Output
Output Power: MAX 10A

Setting Method:

Setting method: Start value <stop value (program automatically determines working mode is heating/humidifying mode)
Setting method: Start value > stop value (the program automatically determines the working mode is cooling/dehumidifying mode)

Heating/cooling mode setting:

Setting mode: setting (starting temperature): Press and hold the ▲ button to start the temperature flashing. Use ▲▼ key to set the starting temperature value.
Setting (stop temperature): Press and hold the ▼ button to stop the temperature flashing. Use ▲▼ to set the stop temperature value.

Heating use case: control the water heater, heat to 65 ° C to stop, the temperature drops back to 50 ° C and start heating again

Step 1: heating mode, starting temperature <stop temperature
Step 2: Press and hold the ▲ button to start the temperature flashing. Use ▲▼ to set the starting temperature to 50 °C.
Step 3: Press and hold the ▼ button to stop the temperature flashing. Set the stop temperature to 65 °C with ▲▼ keys, and the setting is completed!

Refrigeration use case: use in the farm, the fan is ventilated to 26 ° C to stop, the temperature is raised to 30 ° C and the ventilation is started again.

Step 1: cooling mode, starting temperature > stop temperature
Step 2: Press and hold the ▲ button to start the temperature flashing. Use ▲▼ to set the starting temperature to 30 °C.
Step 3: Press and hold the ▼ button to stop the temperature flashing. Use ▲▼ to set the stop temperature to 26°C. The setting is completed!

Humidification/Dehumidification Mode Settings:

Setting (start humidity): Press and hold △ key to start the humidity value flashing. Set the humidity value by △ ▽ key. Set [Stop Humidity]: Press and hold △ key to stop the humidity value flashing, and set the humidity to stop by △ ▽ key value.

Humidification example: fresh supermarket humidification, control humidifier 50% RH began to humidify, humidified to 80% RH to stop humidification.

Set up steps:

Step 1: Press and hold the △ button for 3 seconds to start the humidity value flashing, and set the starting humidity value to 50% RH.
Step 2: long press the ▽ button for 3 seconds to stop the humidity value flashing, set the value to 80% RH, the setting is completed, the button does not operate for 5 seconds, and automatically returns to the normal display state.

Dehumidification example: workshop control exhaust dehumidification system, humidity 70% RH starts dehumidification, humidity 40% RH stops dehumidification

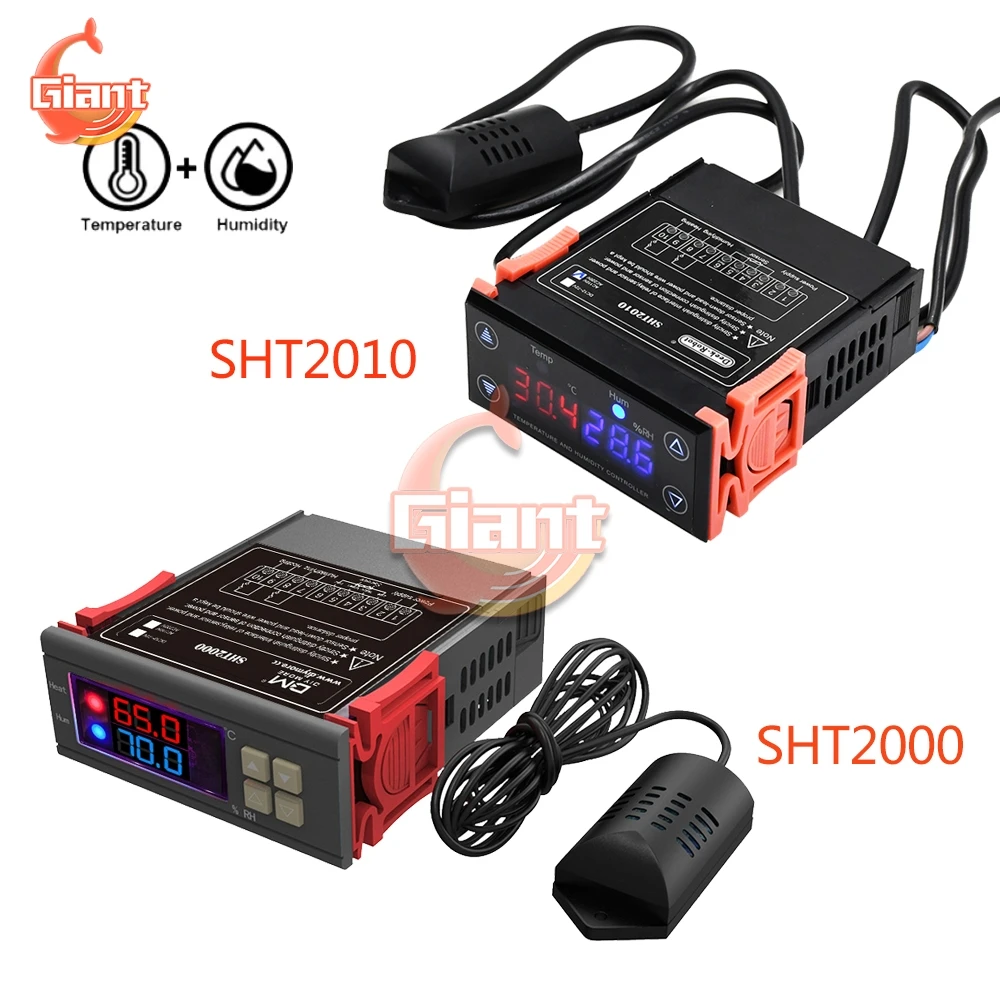

1 x SHT2010 / SHT2000 10A Digital Temperature Humidity Controller
1 x NTC Sensor
