9-32V DC NMEA2000 Converter Box Convert Sensor Singal to NMEA2000 IP67 Waterproof for Boat Yacht Waterproof Car Socket Adapter

CX5003 Features:

- Acquisition of sensor parameters and convert to NME A2000 parameters
- Up to 18 sensors can be collected

Sensor Parameter(customizable)

- Speed ratio adjustable range is 1~200
- Engine tilt/trim 0~ 1 90ohm
- Oil pressure 10~184ohm(0~10bar)
- Temperature 301~22ohm(40~ 120'C)
- Rudder 0~1 90ohm
- Fuel level 0~ 190ohm
- Freshwater level 0~1 90ohm
- Wastewater level 0~ 1 90ohm

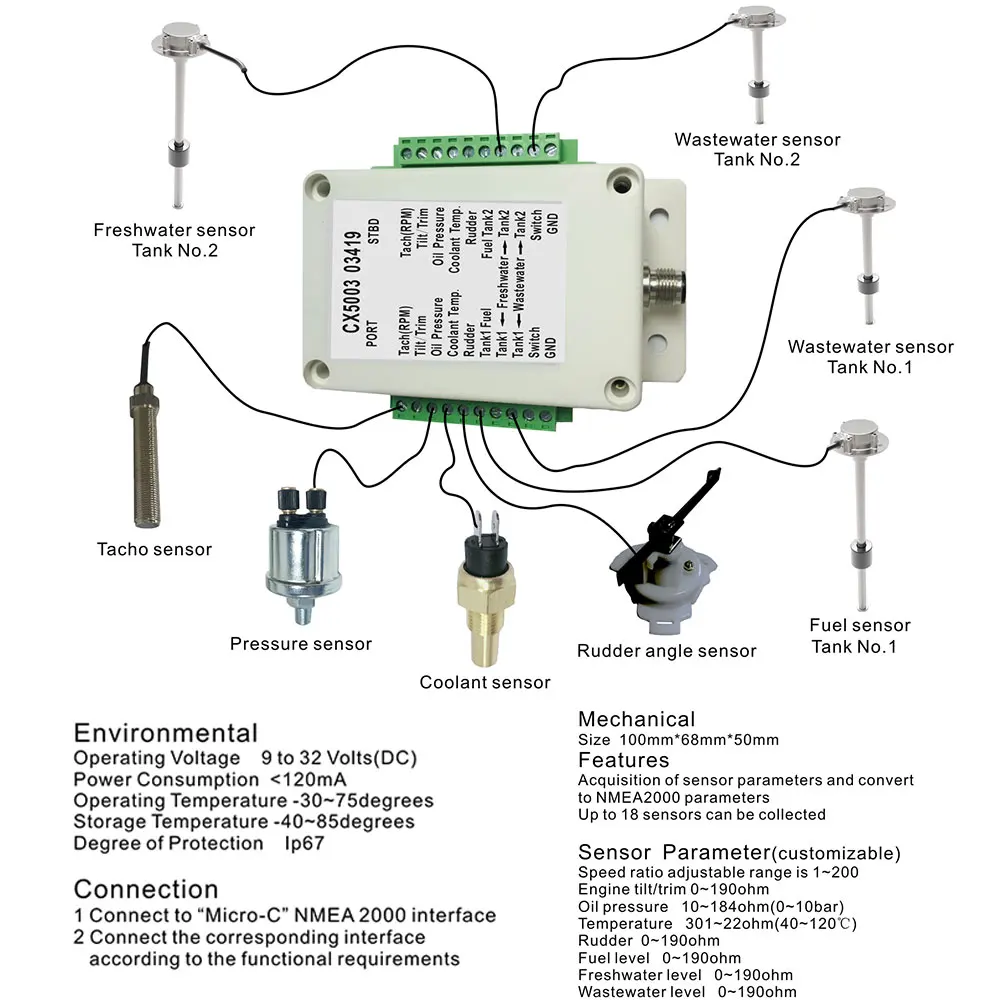

Environmental

- Operating Voltage 9 to 32 Volts(DC)
- Power Consumption <120mA
- Operating Temperature -30~75degrees
- Storage Temperature -40~ 85degrees
- Degree of Protection Ip67

Connection

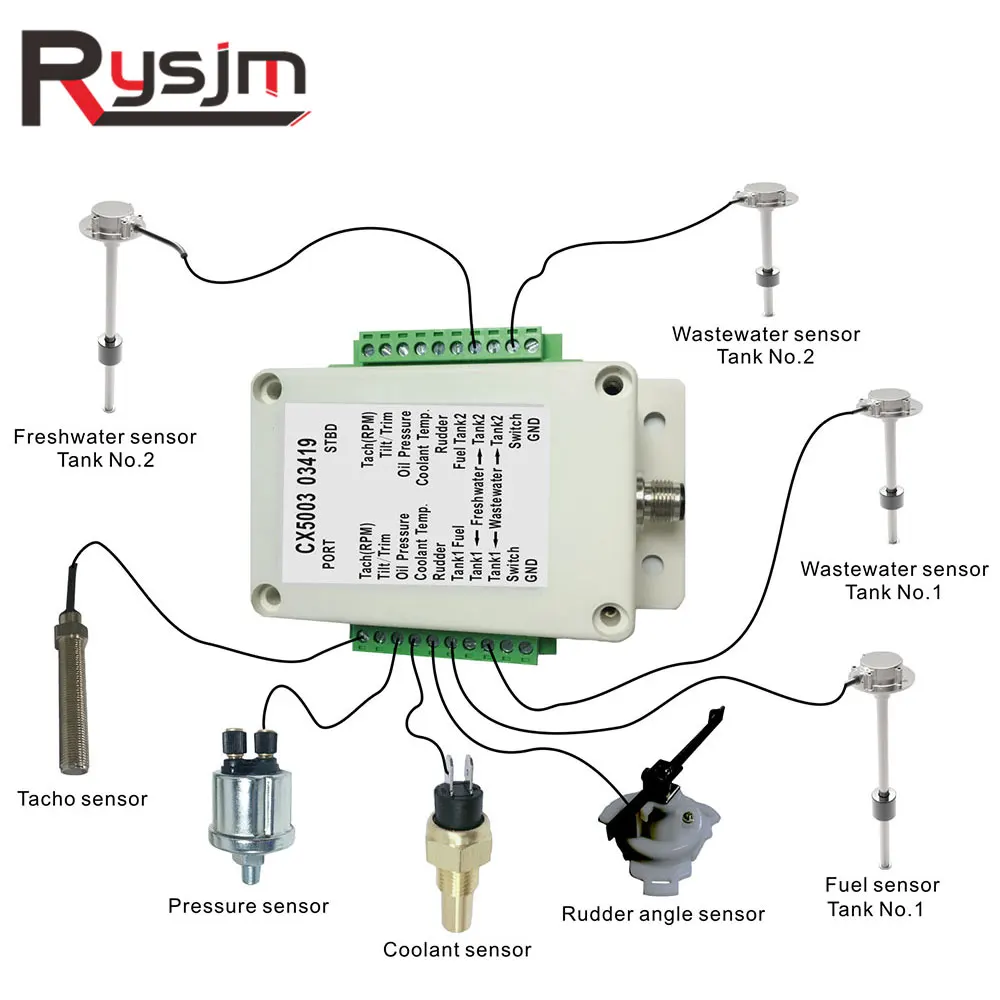

1 , Connect to“Micro-C" NMEA 2000 interface .
2 , Connect the corresponding interface
- according to the functional requirements

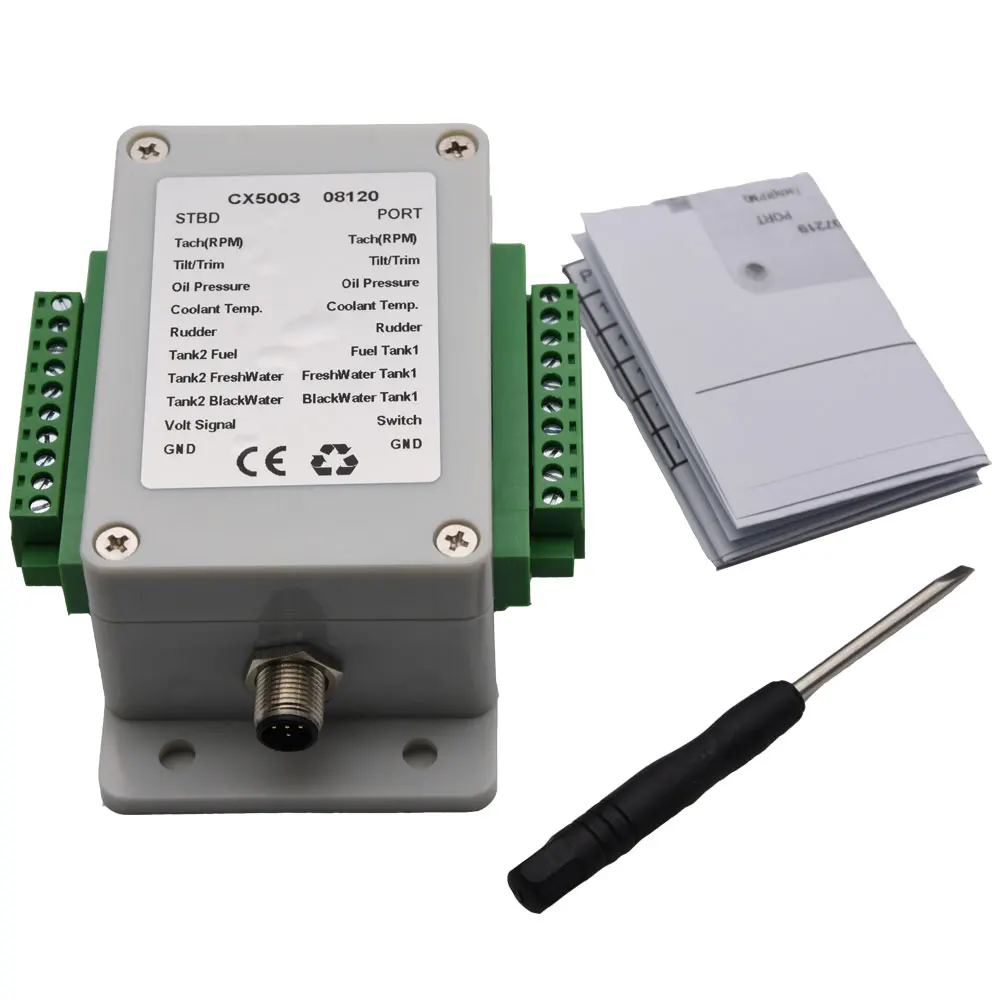

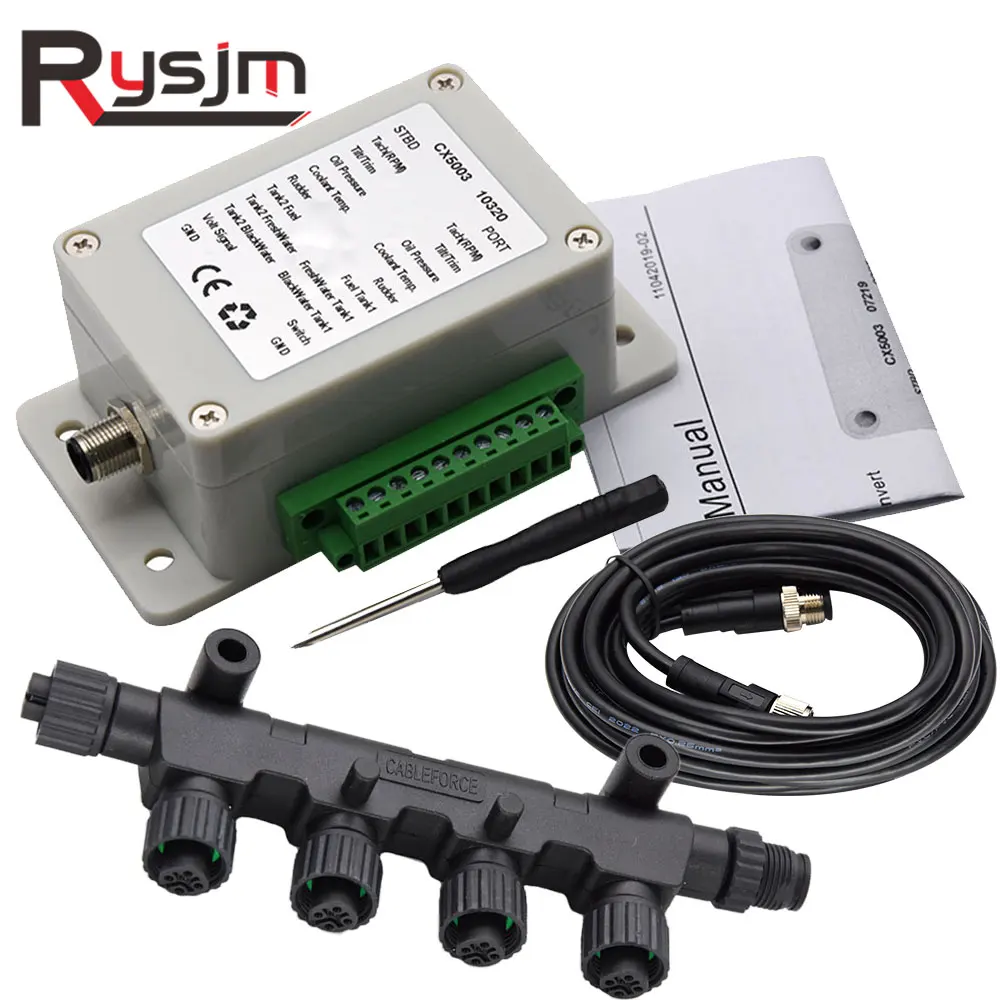

Package Included: (as the picture shows)

1 x converter
or
1 x sensor
