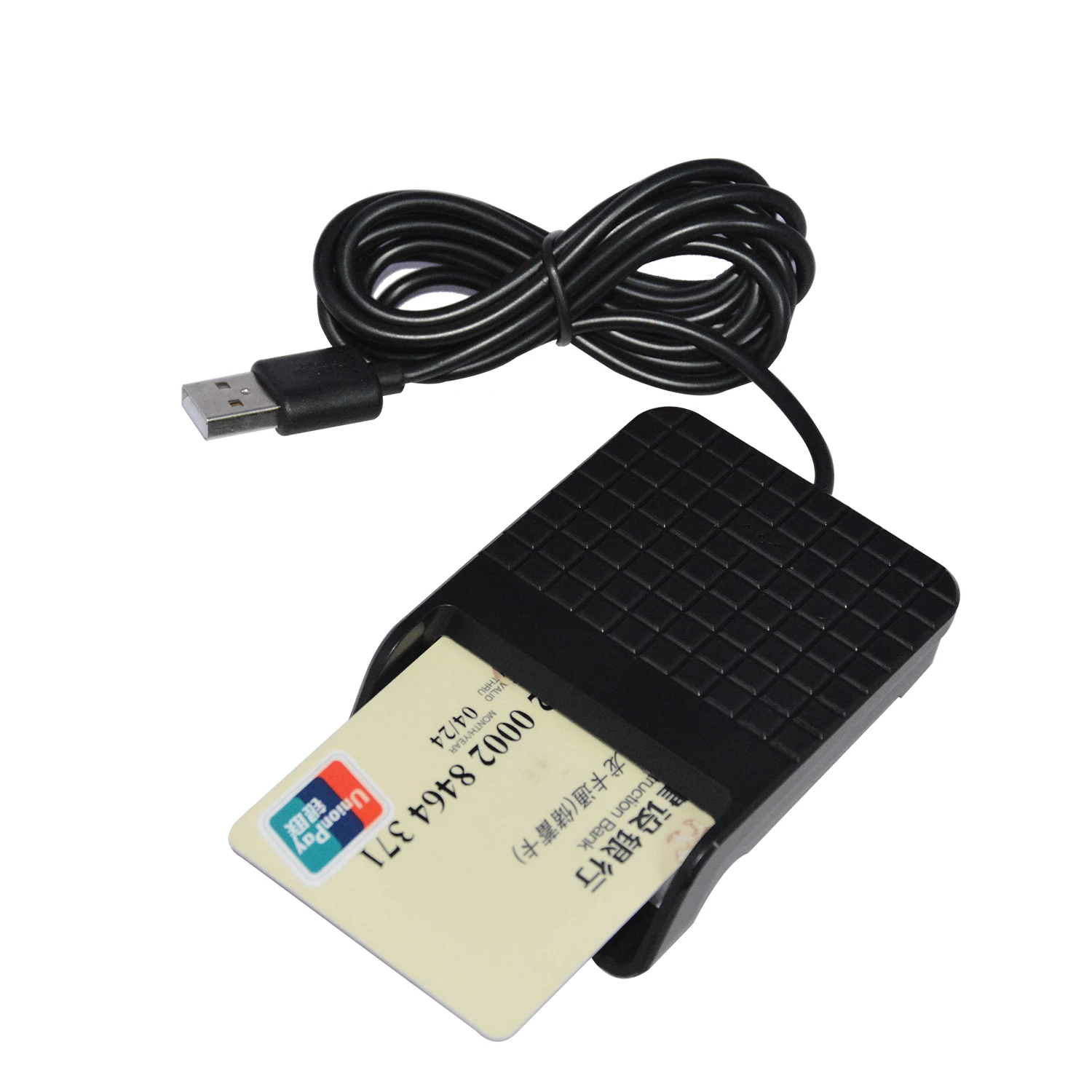

PC-LINK ISO 7816 USB IC Chip Smart Card Reader with PC/SC CCID Protocal DCR33 | Безопасность и защита

PC-LINK ISO 7816 USB IC Chip Smart Card Reader with PC/SC CCID Protocal DCR33 | Безопасность и защита

Host Interface

USB 2.0 CCID (also compliant with USB 1.1)

Transmission Speed

12 Mbps (USB 2.0 full speed)

Power Supply

Bus powered

Smart Card Interface

Standards

ISO 7816 &Conformance with EMV2 2000 Level 1

Protocols

T=0, T=1,

2-wire: SLE 4432/42 (S=10),

3-wire: SLE 4418/28 (S=9),

I2C (S=8)

AT88sc1608/ 153, AT24c128/ 256

ST: M14C16, M14C04

Card Size

ID-1 (full-size)

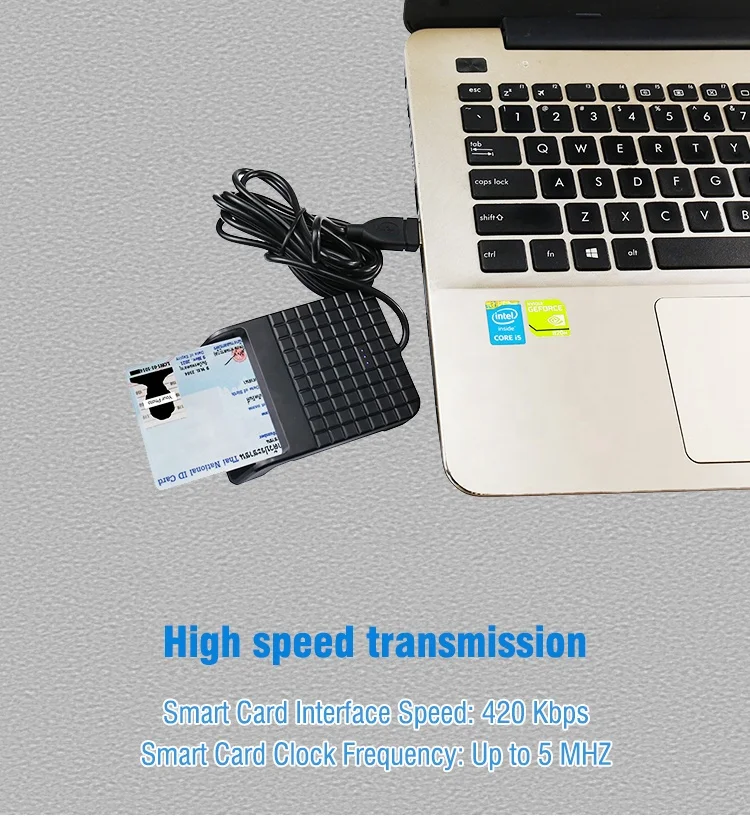

Smart Card Interface Speed

420 Kbps (when supported by card)

Smart Card clock frequency

Up to 5 MHZ

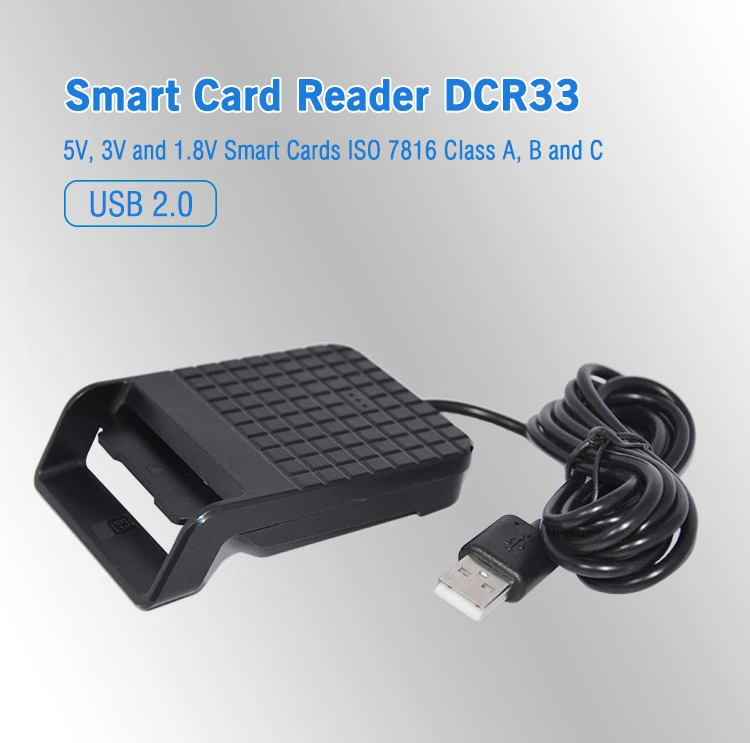

Supported card types

5V, 3V and 1.8V Smart Cards

ISO 7816 Class A, B and C

Iternal Memory

1MB

Power to Smart Card

60 mA

Other Features

Status Indicator

YES

Options

Customer specific logo or label

On request

Customer specific colors

On request

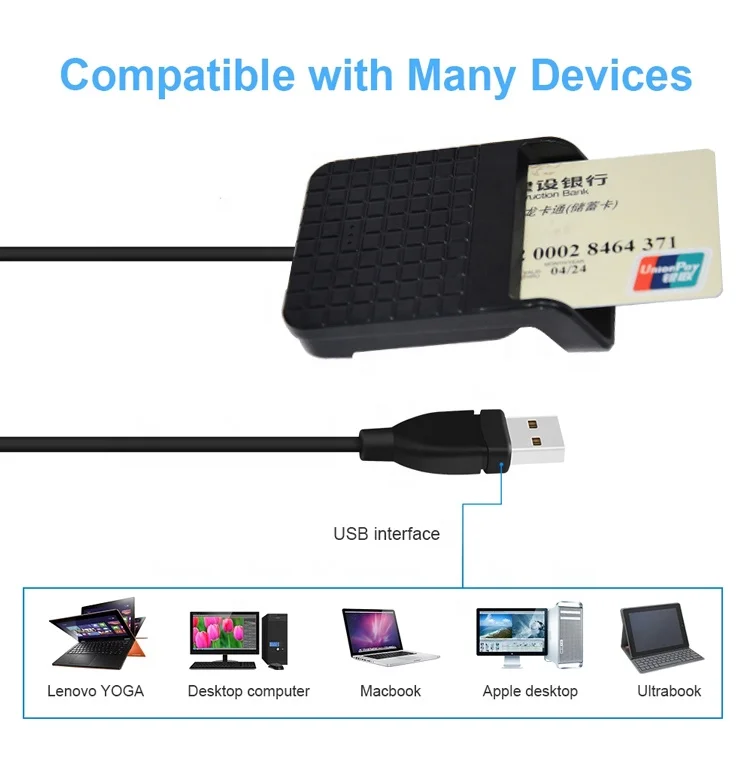

PC/SC Driver Support

Windows® 98 / ME, 200 / XP (32bit), 2003 Server

Windows® CE 5.0 (depending on hardware)

Windows® Vista (32bit / 64bit)

Windows® 7/ 8/10/ Mac OS

Linux® (need Micro USB to USB Adapter)

Hardware Specifications

Operating temperature

0º-55ºC / 32-131ºF

Operating humidity

10-90% rH

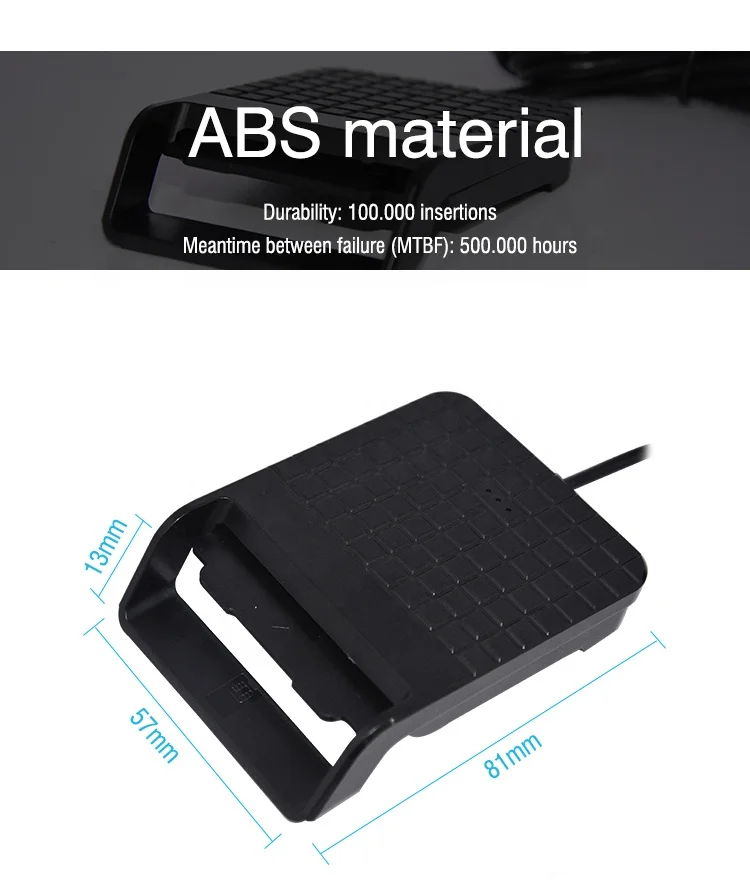

Composition

ABS

Connector cable

100 cm / 70.9"

Durability

100.000 insertions

Meantime between failure (MTBF)

500.000 hours

Certification

CE/ FCC/ RoHS certificate and reach RoHS standard

Item Dimension (L*W*H)

5.7*8.1*1.3 cm


1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years.

We can provide OEM / ODM customized service according to our customers' various application and demands.

2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.

3. What warranty for the products?

According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts).

As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

5. Can we get the free sample?

Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

When they place the mass order, we can return the sample cost to the customers.

6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba)  and so on.

7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.

8.Which way to deliver the goods?

By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.

By Sea: Inform us the Sea Port to check which ship line.

By Air: Inform us the Airport to check which flight.

Or pick up by the customers.

9. What the after sale service?

a. Our all products will provide 12 months warranty;

b. Enough stock spare parts for guarantee;

c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;

d. As for the returned failure products, we will fix it and return to the customers in one week after we received it.
