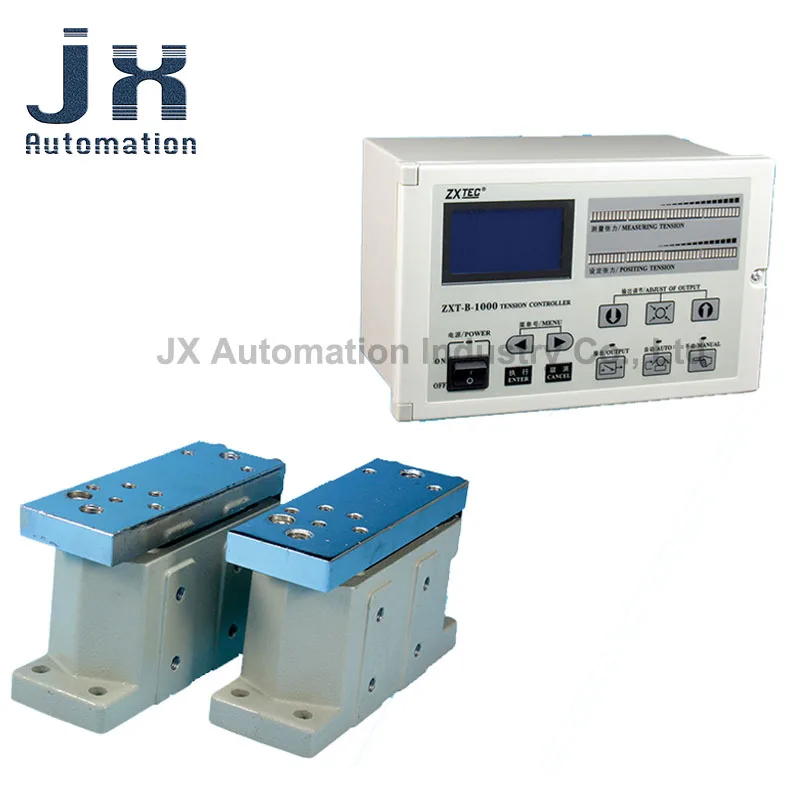

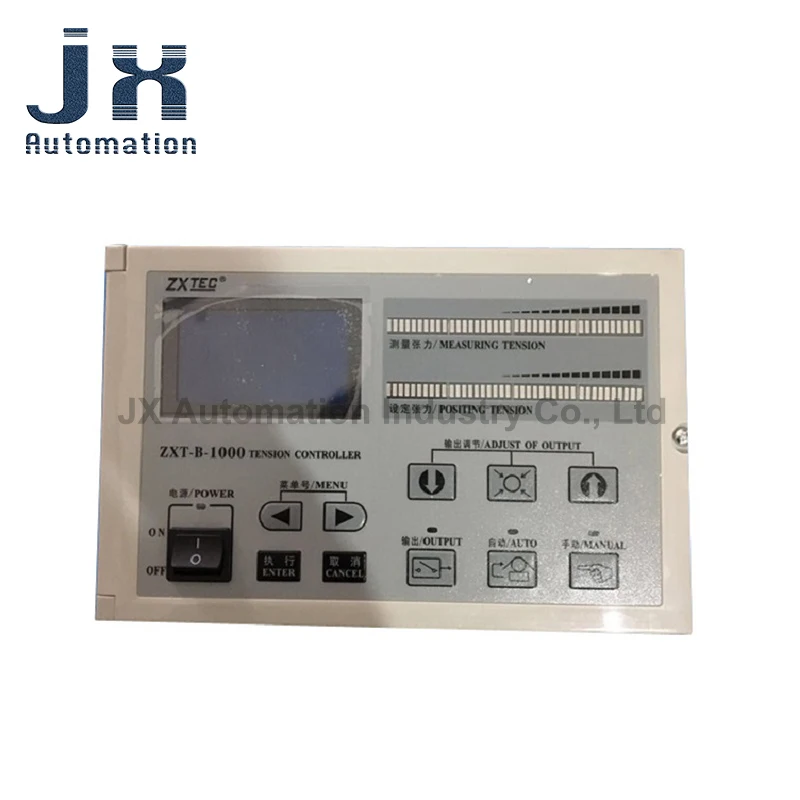

ZXT-B-1000 Digital Automatic Constant Tension Controller with 2pcs Load Cell

ZXT-B full digital high precision automatic constant tension controller, mainly composed of tension detector, high precision A / D, D / A converter, high performance microcontroller. The automatic constant tension controller compares the tension of the coil material with the set target tension according to the tension detector, and automatically adjusts the D/A output by the PID calculation of the single chip microcomputer to change the magnetic powder clutch, the excitation current of the brake or the servo motor. The torque is used to achieve the constant tension of the coil material, and can be widely used in various occasions where the tension is precisely measured and controlled, and has flexibility and wide applicability.

★ LCD display can be displayed in Chinese or English

★ Automatic and manual switching is simple and convenient

★ Tension detector wiring is simple and convenient

★ Convenient parameter settings

★ With double station shaft output function


Parameter:

Measurement accuracy: <±1 Newton

Sampling speed: 100 millisecond

Main output mode: DC 0-2A Constant current output (adapted load impedance 8-12Ω)

Auxiliary output: DC 0-5V(MAX 10MA)Analog signal output

Dimensions: W245×H155×D140(mm)

Installation size: W230×H150×D120(mm)

Power: AC 180-245V 50/60Hz
