H.264 Низкое освещение USB 2.0 Полный HD 1080P Веб-камера Цифровая веб-камера с микрофоном для Windows Linux Mac Android.

H.264 Низкое освещение USB 2.0 Полный HD 1080P Веб-камера Цифровая веб-камера с микрофоном для Windows Linux Mac Android.

Unavailable in

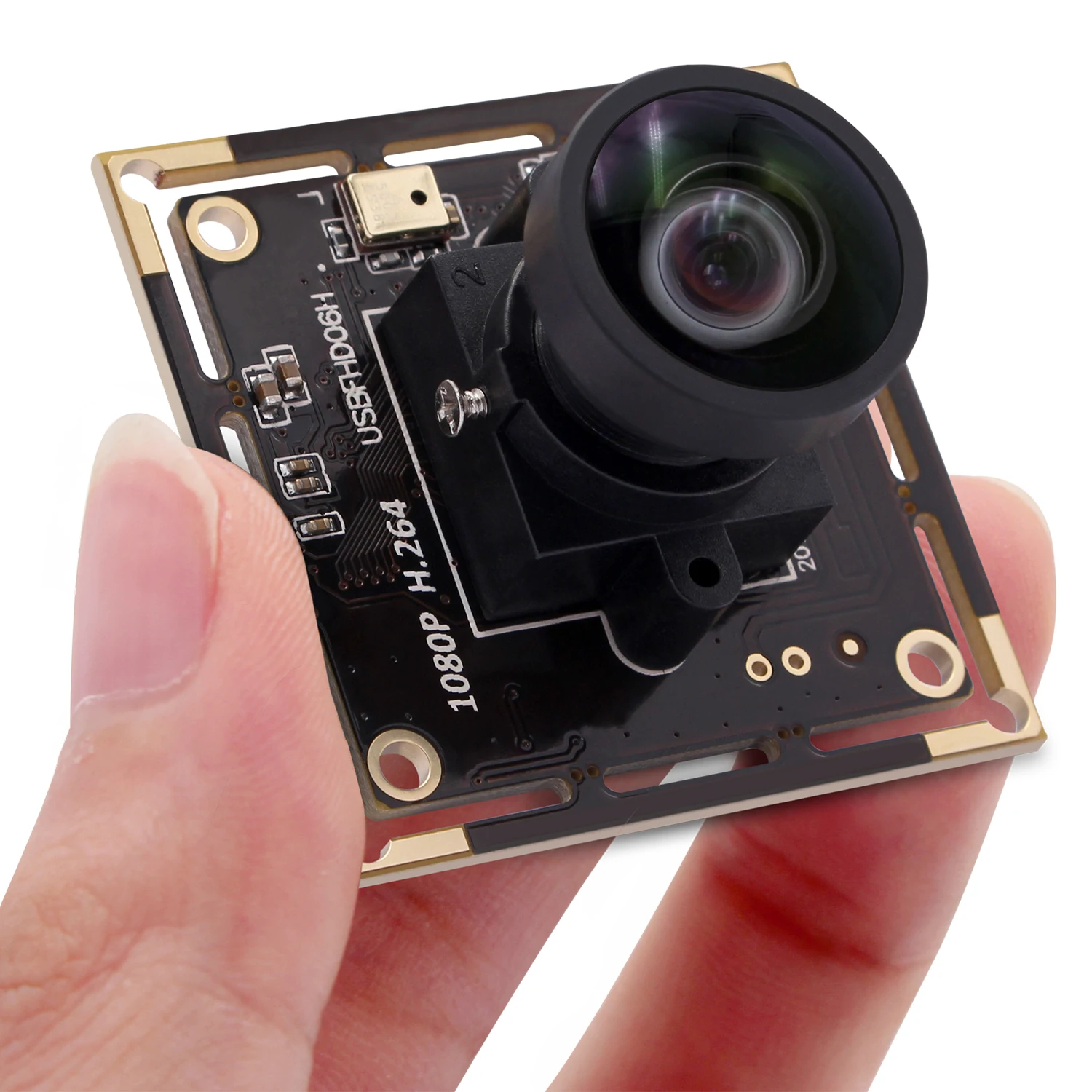

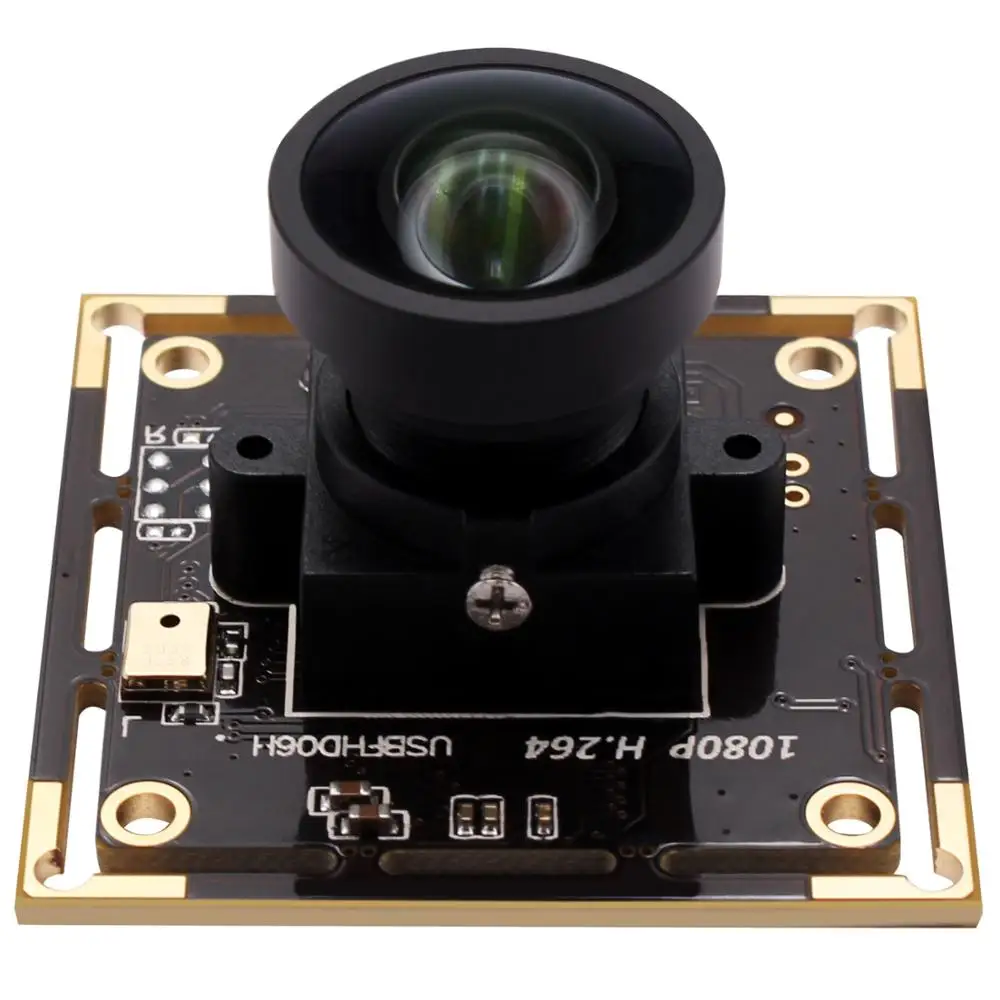

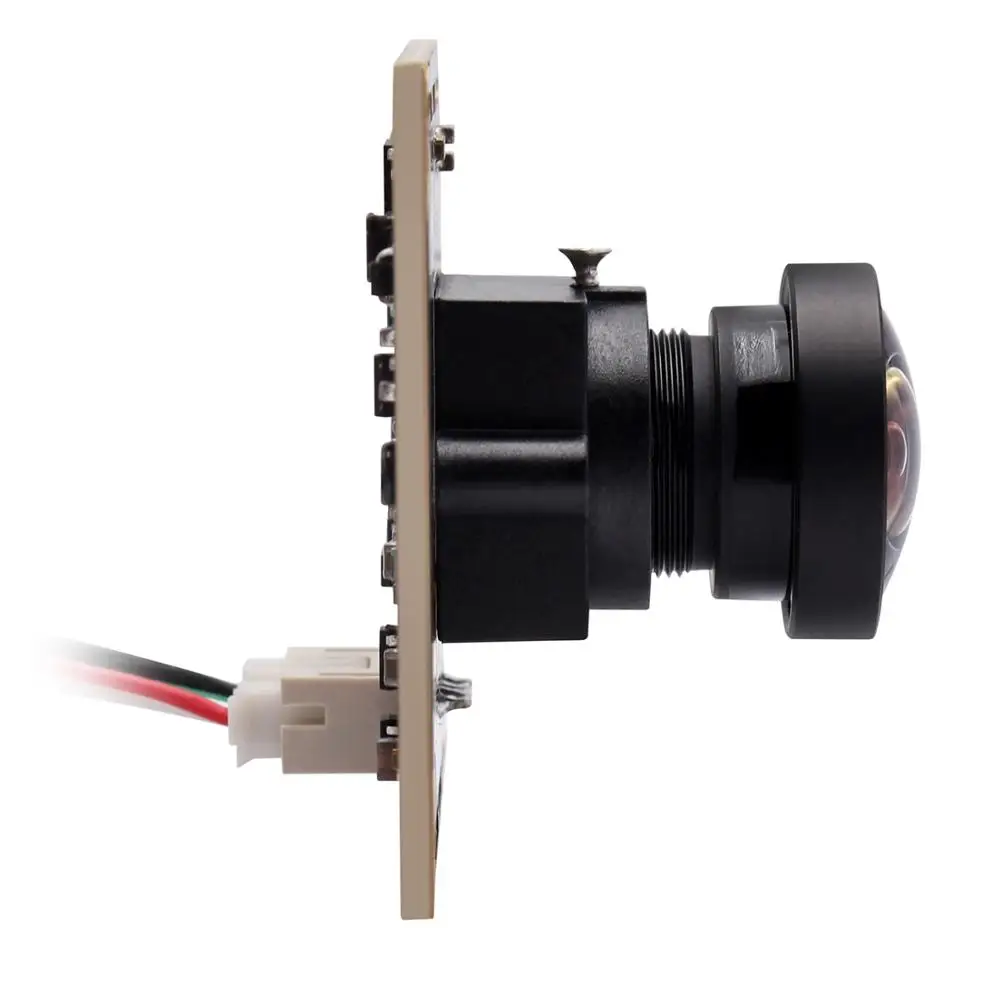

H.264 Low illumination USB 2.0 Full HD 1080P Webcam Camera Digital Web Cam With Mircophone For Windows Linux Mac Android

Ailipu Technology Co.,Ltd, who have 13 years history, is a professional manufacturer of surveillance system .

Ailipu has its own brand ELP, which already well know in security surveillance system. With its own unique R&D team as the basic, oriented by dedicated sales team,

ELP already developed into a prefessional video products company integrate with developing, production, sales and also service all together.

ELP is developing its own special USB Cameras for industrial vision. Recently, we present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel, 5megapixel autofocus,  8megapixel to 13megapixel which already used in all kinds of industrial system.

ELP can also OEM or customize products specially by customers' requirements. We always believe"Together everybody achives more!", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.

Package include:

1) 1PC 2mp usb camera module with no distortion lens

2) 1PC 1m usb cable  ( 2/3/5m cable optinal)

*  1080P USB2.0 SONY IMX322/IMX323 Low illumination Color CMOS Sensor USB Camera

*High speed USB 2.0 interface for high resolution PC camera interface.

*high pixel technology for sharp image and accurate color reproduction.

*low light performance – ideal for any lighting condition.

*Super small outline and thin profile for embedded applications.

*High frame rate– deliver H.264 30 fps in 1920X1080 resolution.

*High quality lens,95 degree no distortion lens

*Low power consumption – ideal for portable equipment.

*Camera with UVC.

Model

ELP-USBFHD06H

Sensor

IMX322/IMX323

Lens Size

1/2.9 inch

Pixel Size

12.8X11.6 mm

image area

2000(H)X1121(V)  approx. 2.24 M pixels

Max. Resolution

1080P

Compression format

H264 /MJPEG / YUV2（YUYV）

Resolution & frame

H264：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

MJPEG：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

YUV：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps

S/N Ratio

42dB

Dynamic Range

86dB

Sensitivity

5.0V/lux-sec@550nm

Mini illumination

0. 01 lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

Support OTG Protocol

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

Standard 3.6mm, optional 2.1/2.5/2.8/6mm/FOV(D)170 Degree/FOV(D)180 Degree

Digital audio

High quality digital MIC, support single, dual channel

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Power supply

DC5V

Operating Voltage

140mA~190mA

Working current

-10～70℃

Working temperature

-20～85℃

Board size /Weight

38X38mm（Compatible 32X32mm）/ about 30g

Cable

Standard  1M / optional 2M,3M,5M

Operating system request

Win7 Win8

Linux 2.6 or above

Android 4.0 or above

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site

monitoring, environmental monitoring, etc.

 used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player,

 LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,

 evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,

simple security system, teaching system, Interactive system,  automobile data recorder. Project video capture,

  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,

Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance,

 endoscope, Medical auxiliary equipment, etc.

Effect

Our USB Camera include VGA 640X480,1MP,1.3MP,2MP,5MP and 8MP resolution
