Digital Bluetooth Stereo Amplifier Board AC 220V 12V 24V Subwoofer Dual Microphone Karaoke Amplifiers EU Plug | Электроника

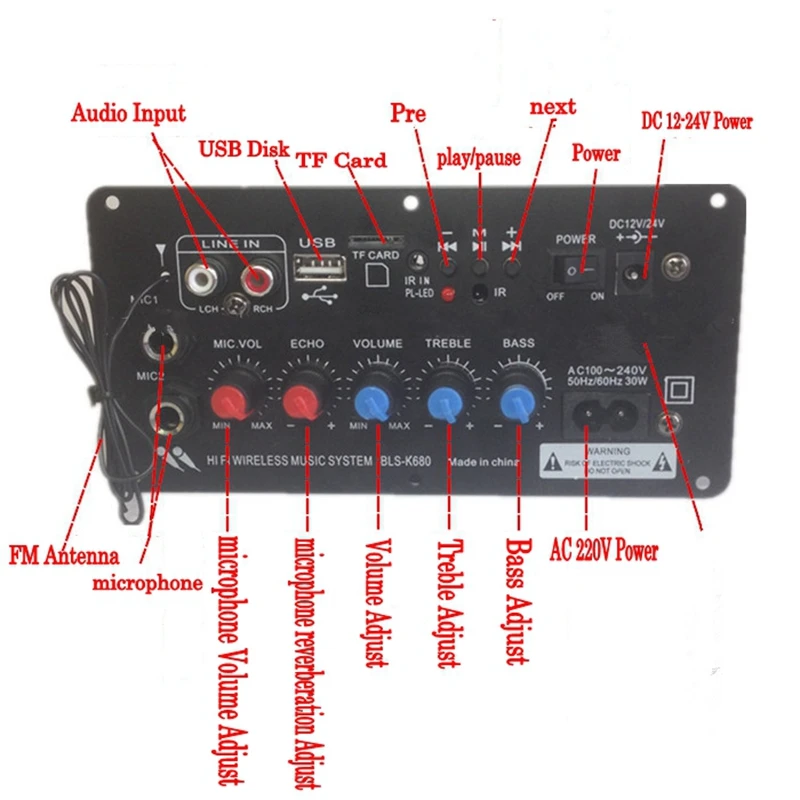

1. Support reading MP3 songs in TF card and U disk;2. Support independent adjustment of treble, bass and master volume;3, Working Voltage : AC 220V or DC 12~24V;4, With AUX o input, can be connected to the computer, mobile phone or CD;5, Digital power amplifier, peak power 400W, can drive 4Ohm 100 netic speakers;6, Dual microphone input, adjustable reverb; built-in Bluetooth wireless Receiver and FM radio .
How to Connect to Bluetooth :Press the "MODE" button to switch the machine to Bluetooth status, open the mobile phone Bluetooth, search for the Bluetooth device with the mobile phone, search for the product and click the Bluetooth name of the product to connect. After the connection is completed, you can receive the music played on the mobile phone.
Notice:Some mobile phones will prompt you to enter the PIX code. You can enter "0000" at this time (if the phone supports the easy pairing function, you do not need to enter the PIN)
Radio function operation instructions:1. Hang up the radio antenna;2. Press the MODE button to switch to the radio state;3. Press the play button to search the entire channel and automatically save the station;4, press the previous or next track to switch to the next or next station
Note:The radio effect is not perfect, mainly for the radio, please buy a professional radio.Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on
Power Wiring Instructions (Please follow the instructions carefully to avoid unnecessary dae):
1. The panel DC12V/24V interface can be connected to DC 12V or DC 24V, and the current requirement is more than 3A (available battery or power adapter);
2, panel AC 100-240V interface can be connected to AC100V-240V AC power with 8 word power cable (not Contact the circuit board after power on, so as to avoid electric shock).
Note:
The above power-on methods can be connected in any way, and cannot be accessed at the same time.
Wiring instructions:

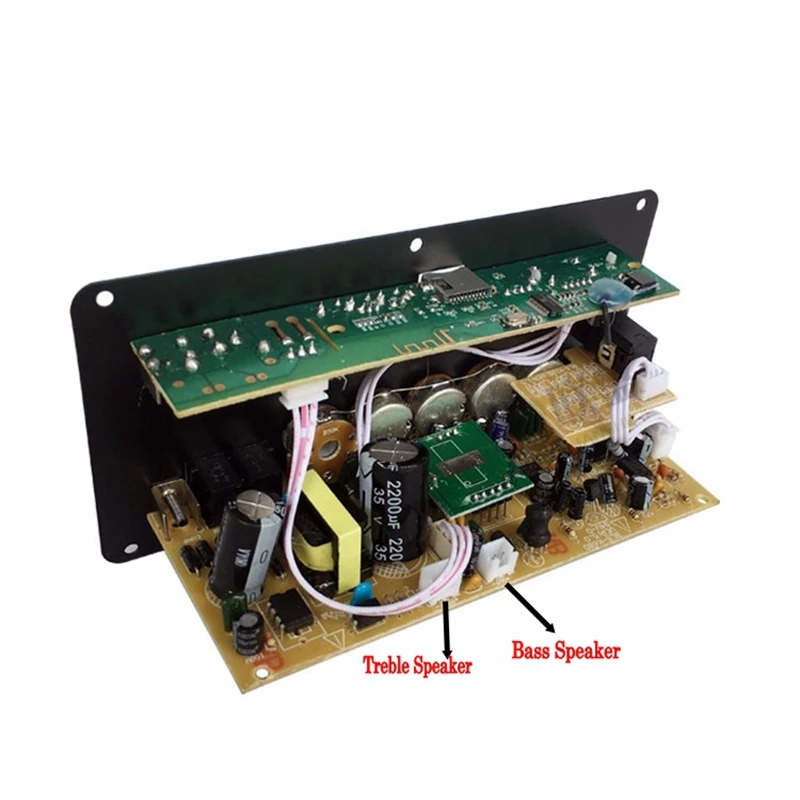

1. Connect the subwoofer: connect a speaker with about 100 nets or a speaker with about 100W:
2, Connected to the tweeter: can be connected to 30W tweeter (It can also be disconnected) (Add a capacitor when the tweeter is connected)
3. Suitable for 8-12 inch speakers.
Notice:
Please turn off the small master volume before power-on test. Then increase the volume slowly after power-on. If the sound is intermittent or the sound is hoarse and distorted during the process of increasing the volume, the speaker and the amplifier are not matched. Please use the small sound or change the package. The speaker is used.
colour:black
Material:plastic

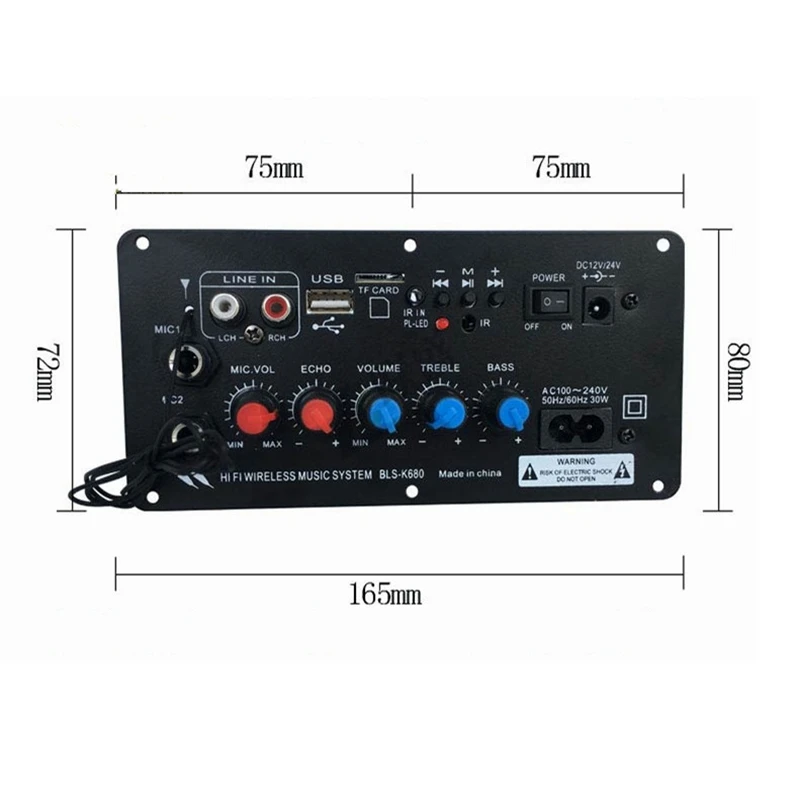

size:165x80MM
Package Contents:
1 x AC 220V 12v 24v Digital Bluetooth Stereo Amplifier Board
1 x Remote control
1 x EU 220v Power supply cable
1 x DC Power supply cable
2 x Speaker cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Digital Bluetooth Stereo Amplifier Board AC 220V 12V 24V Subwoofer Dual Microphone Karaoke Amplifiers EU Plug

1. Support reading MP3 songs in TF card and U disk;2. Support independent adjustment of treble, bass and master volume;3, Working Voltage : AC 220V or DC 12~24V;4, With AUX o input, can be connected to the computer, mobile phone or CD;5, Digital power amplifier, peak power 400W, can drive 4Ohm 100 netic speakers;6, Dual microphone input, adjustable reverb; built-in Bluetooth wireless Receiver and FM radio .
How to Connect to Bluetooth :Press the "MODE" button to switch the machine to Bluetooth status, open the mobile phone Bluetooth, search for the Bluetooth device with the mobile phone, search for the product and click the Bluetooth name of the product to connect. After the connection is completed, you can receive the music played on the mobile phone.
Notice:Some mobile phones will prompt you to enter the PIX code. You can enter "0000" at this time (if the phone supports the easy pairing function, you do not need to enter the PIN)
Radio function operation instructions:1. Hang up the radio antenna;2. Press the MODE button to switch to the radio state;3. Press the play button to search the entire channel and automatically save the station;4, press the previous or next track to switch to the next or next station
Note:The radio effect is not perfect, mainly for the radio, please buy a professional radio.Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on
Power Wiring Instructions (Please follow the instructions carefully to avoid unnecessary dae):
1. The panel DC12V/24V interface can be connected to DC 12V or DC 24V, and the current requirement is more than 3A (available battery or power adapter);
2, panel AC 100-240V interface can be connected to AC100V-240V AC power with 8 word power cable (not Contact the circuit board after power on, so as to avoid electric shock).
Note:
The above power-on methods can be connected in any way, and cannot be accessed at the same time.
Wiring instructions:
1. Connect the subwoofer: connect a speaker with about 100 nets or a speaker with about 100W:
2, Connected to the tweeter: can be connected to 30W tweeter (It can also be disconnected) (Add a capacitor when the tweeter is connected)
3. Suitable for 8-12 inch speakers.
Notice:
Please turn off the small master volume before power-on test. Then increase the volume slowly after power-on. If the sound is intermittent or the sound is hoarse and distorted during the process of increasing the volume, the speaker and the amplifier are not matched. Please use the small sound or change the package. The speaker is used.
colour:black
Material:plastic
size:165x80MM
Package Contents:
1 x AC 220V 12v 24v Digital Bluetooth Stereo Amplifier Board
1 x Remote control
1 x EU 220v Power supply cable
1 x DC Power supply cable
2 x Speaker cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
