Engine Motor for vacuum cleaners Samsung 1400W H-112 D-135 Vcm-k30hu vcm-k50hu Vcm-k40hu vcm-k20hu Dj31-30183 dj31-00007 Dj31-00005 dj31-00002

Engine Motor for vacuum cleaners Samsung 1400W H-112 D-135 Vcm-k30hu vcm-k50hu Vcm-k40hu vcm-k20hu Dj31-30183 dj31-00007 Dj31-00005 dj31-00002

Power:1400W

Voltage:230V 50/60HZ

Contact arrangement:On one side

Kind of skirt:Stamped

Installed in vacuum cleaners:Samsung

Mounting for a thermo-sensor:There are

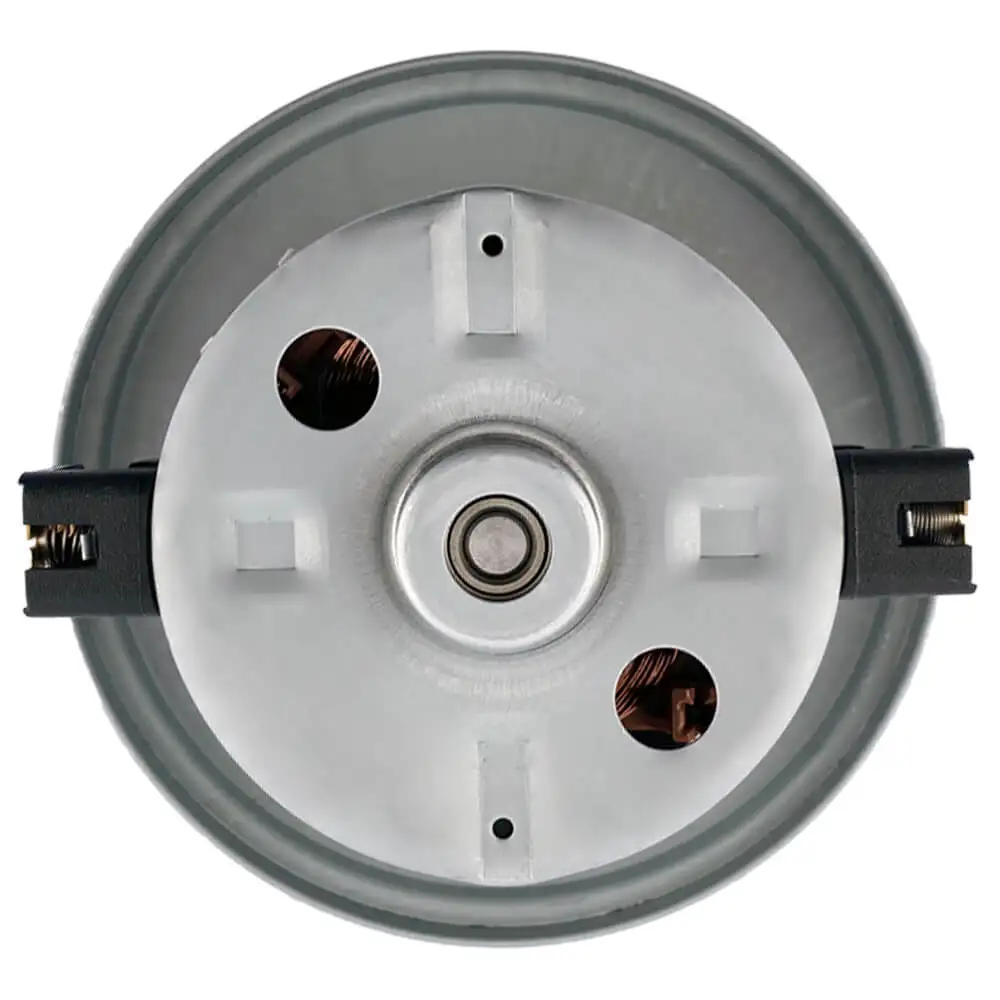

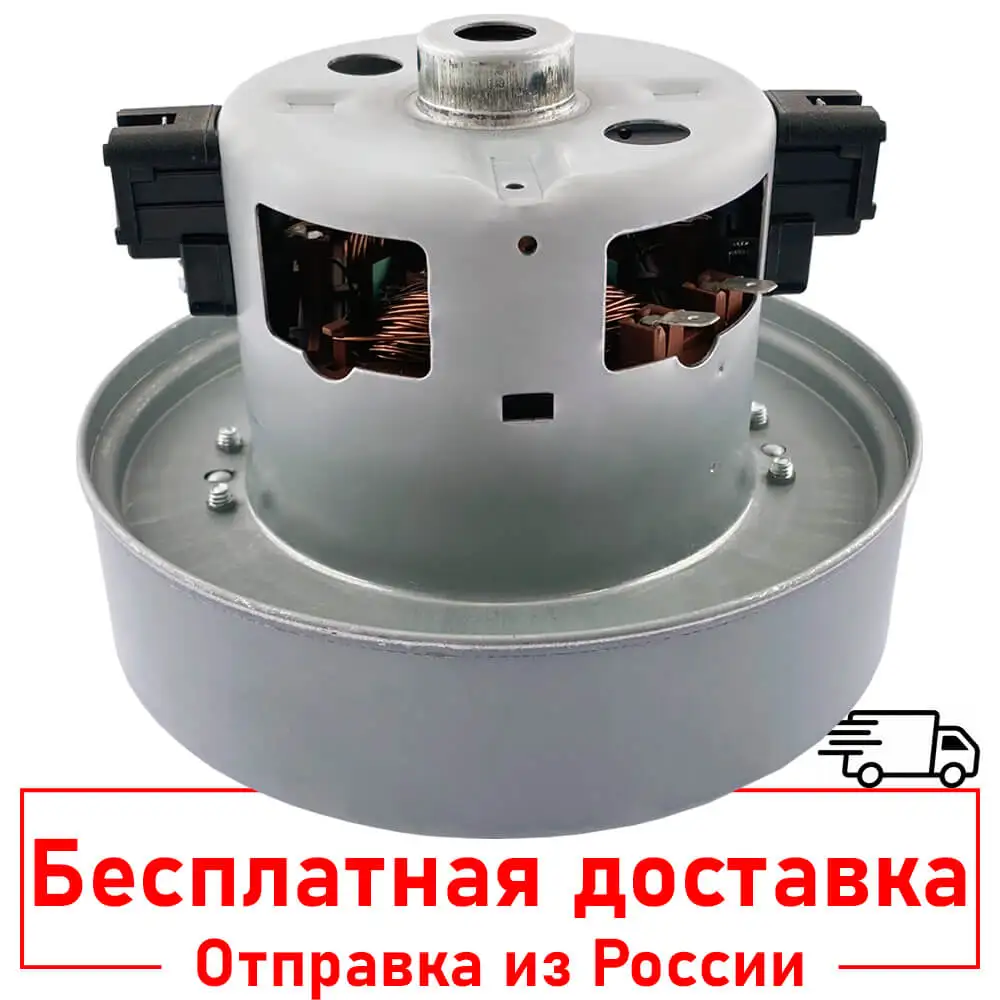

Vaccum cleaner motor 1400W H112 D135

Dimensions of the electric motor for vacuum cleaners Samsung:

Total motor height:112mm

Diameter of motor:135mm

Height of Impeller:36,5mm

Codes взаимозамен: VCM-K40HU, VCM-K30HU, VCM-K50HU, VCM-K20HU, VCM-K50HUAA, VCM-K50HTDV-SV, VCM-K50HTAA-SV, VCM-K50DTAA, VCM-K40HUAA-SV, VCM-K40HUAA, VCM-K40HTAA, VCM-K30HUAA-SV, VCM-K30HUAA, VCM-HD112-1700, VCM-HD112-1800, VCM-HD112-2000, VCM-HD112-1600w, VCM-HD112-1400W, VCM-04S, VCM04S, VC0765Fw, VC07224W, VC07202FQw, VC07201Fw, VC07200FQW, VAC031UN, VAC030UN, VAC005SA, VAC003SA, VAC000SA, K50HUAA, K40HUAA, k20hu, VCM-K30HUDC, K30HUAB, TXE-K30HUDD, VCM-K30HUDH, VCM-K30HUDD, VCM-K30HUDC, VCM-K20HTDD, VCM-K20HUED, VCM-K20HUEC, VCM-K20HUEB, VCM-K20HUEA, K50HUAB, VC07202W, VCM-K40HUAB
DJ31-30183K, DJ31-30183J, DJ31-30183H, DJ31-30183D, DJ31-30183C, DJ31-30183B, DJ31-30183A, DJ31-30177B, DJ31-30169D, DJ31-30169C, DJ31-30169B, DJ31-30169A, DJ31-30155A, DJ31-30147A, DJ31-30133A, DJ31-30123A, DJ31-30115A, DJ31-30004F, DJ31-30004D, DJ31-30004C, DJ31-30004B, DJ31-30001A, DJ31-00106C, DJ31-00007V, DJ31-00007S, DJ31-00007Q, DJ31-00007P, DJ31-00007N, DJ31-00007J, DJ31-00007H, DJ31-00007G, DJ31-00007F, DJ31-00007D, DJ31-00007C, DJ31-00007B, DJ31-00007A, DJ31-00005K, DJ31-00005H, DJ31-00005F, DJ31-00005E, DJ31-00005D, DJ31-00005C, DJ31-00005B, DJ31-00005A, DJ31-00003B, DJ31-00002K, DJ31-00002H, DJ31-00002E, DJ31-00002C, DJ31-00002B, DJ31-00002A, DJ31-00001H, DJ31-00001G, DJ31-00001E, DJ31-00001D, DJ31-00001C, DJ31-00001B, DJ31-00005H, 11me73, 11me69

Option No. 1 (preferred): Selection of engine dimensions

Remove the engine from the device.

Compare the landing dimensions of the engine-the total height and diameter of the impeller. (Difference +-2mm is acceptable)

An overhead or stamped skirt does not matter. As well as the location of contacts-together or separately.

If the landing dimensions match, the engine fits your vacuum cleaner.

Option No. 2: Selection of the engine according to the model of the vacuum cleaner:

At the bottom of the vacuum cleaner is a shildik (a sticker indicating the model and technical data).

Compare the specified model with the compatibility list on the product card. Note that the compatibility list may not include all models. In this case, use option 2

Tips:

How to replace the electric motor in the Samsung vacuum cleaner?

After disassembling the vacuum cleaner, gently rinse the body from dust and dirt. Be careful, water should not get on the control board and other electronic components. After thoroughly dry the body of the vacuum cleaner.

Remove the temperature sensor and power contacts from the old motor, reverse the new engine.

Collect the vacuum cleaner, install the front filter/bag (at this stage do not install the rear HEPA filter), run the vacuum cleaner in the ventilated room for 8-10 minutes.. (The appearance of an unpleasant smell is permissible, the engine's carbon brushes are lapsed)

Turn off the vacuum cleaner and let it cool.

Set rear filter

Your Samsung vacuum cleaner is ready to work again!

Timely make replacement of filter elements. With a contaminated front filter (instead of a filter, can stand a bag), dust particles fall on the engine manifold, which leads to its breakage. When the rear filter is contaminated, an increased resistance is created to pass the air flow, which leads to loss of power and overheating of the engine.

Instead of reusable bags, give preference to disposable. The reusable bag has a poor filtration rate.

Do not suck water and wet trash. Because the engine passes air flow through itself, water particles can cause short circuit.

Bulk substances consisting of very small particles, such as construction dust, cement or flour, are also not recommended to be removed by vacuum cleaner. Particles will quickly kill the filter and part of the dust can pass through the filter/bag and get into the engine.

The list of compatible models of the Samsung vacuum cleaner (not all sizes can be specified! If your model is not in the list, compare the dimensions!):

1. VCMA16BS. VC-5806V
3. VC-5915. VC-5915V
5. VC-5915VT. VC-5916
7. VC-5916V. VC-6015V
9. VC-6025V. VC-7415V
11. VC-7725H. SC4031
13. SC4034. SC4046
15. SC4047. SC4130
17. SC4131. SC4140
19. SC4141. SC4142
21. SC4325. SC4326
23. SC432A. SC4330
25. SC4331. SC4332
27. SC4335. SC4336
29. SC4520. SC452A
31. SC5120. SC5130
33. SC5135 34. SC5138
35. SC5610. SC5620
37. SC5630. SC5640
39. SC6950. SC7023
41. SC7051. SC7061
43. SC7063. SC7240
45. VC-5853 46. VC-6014
47. SC4023 48. SC6940
49. VC-7114. VC-7113

List of compatible product models (numbers)-this number is also listed on the shildik next to the model (list is not complete):

VC16BSNMARD/EV

VCC4330V3B/XEV

VC16BSNMAUB/EV

VCC4331V31/XEV

VC5816VN3K/XEG

VCC4332V3B/RVC

VC5915SN3G/SBW

VCC4332V3B/XEV

VC5915SN3G/XEV

VCC4335V3W/RVC

VC5915SN3R/XEV

VCC4335V3W/XEV

VC5915VN3R/XEV

VCC4336V3W/RVC

VC5915VT31/XEV

VCC4336V3W/XEV

VC5915VT3B/XEV

VCC4520S36/XEV

VC5915VT3S/XEV

VCC4520S3B/RVC

VC5916SN3G/SBW

VCC4520S3B/XEV

VC5916SN3R/SBW

VCC4520S3R/XEV

VC5916VN32/SBW

VCC4520S3S/RVC

VC5916VN33/SBW

VCC4520S3S/XEV

VC5916VN3K/SBW

VCC4520S3W/RVC

VC6015VN3B/XEV

VCC4520S3W/XEV

VC6025VN3R/XEV

VCC452AS3R/RVC

VC7415VN3B/XEP

VCC452AS3R/XEV

VC7725HN3R/XEV

VCC5120V3S/XEV

VCC4031S34/XEV

VCC5130H31/XEV

VCC4034V3B/RVC

VCC5135H32/XEV

VCC4034V3B/XEV

VCC5138H3D/XEV

VCC4046V37/XEV

VCC5610S3A/XEV

VCC4046V3S/XEV

VCC5610S3K/RVC

VCC4047V35/XEV

VCC5610S3K/XEV

VCC4047V3R/XEV

VCC5620S31/XEV

VCC4130S31/SBW

VCC5630V31/RVC

VCC4130S31/XEV

VCC5630V31/XEV

VCC4130S3B/XEV

VCC5630V32/XEV

VCC4130S3S/XEV

VCC5630V38/XEV

VCC4131S37/XEV

VCC5630V3A/RVC

VCC4131S3A/XEV

VCC5630V3A/XEV

VCC4140V32/XEV

VCC5640V37/XEV

VCC4140V38/XEV

VCC5640V3R/XEV

VCC4140V3A/XEV

VCC6950H3R/XEV

VCC4140V3B/XEV

VCC7023V3S/SBW

VCC4141V3E/XEV

VCC7051H3G/XEV

VCC4141V3N/XEV

VCC7051H3S/XEV

VCC4142V34/SBW

VCC7061H3B/XEV

VCC4142V3O/RVC

VCC7061H3Z/XEV

VCC4142V3O/XEV

VCC7063H3B/SBW

VCC4325S31/RVC

VCC7240H3B/XEV

VCC4325S31/XEV

VC5853SU3B/RVC

VCC4325S3K/SBW

VC5853SU3B/XEV

VCC4325S3R/SBW

VC5853SU3K/RVC

VCC4326S31/RVC

VC5853SU3K/XEV

VCC4326S31/XEV

VC6014SN3K/XEV

VCC4326S3A/XEV

VCC4023S3B/XEV

VCC432AS3K/XEV

VCC4023S3K/XEV

VCC4330V3B/RVC

VCC6940H3S/XEV
