UNICH factory price and cheap greatest laser cutting machines china

  We are specialized manufacturer of cnc laser machine, we will try best to give you professional suggestions and recommend you a suitable laser power and working area according to your requirments, of course, our machine is best quality and best after sale service, so you can use our machine for many years. if you are interested in our machine, pls don't hesitate to contact Abby, i will try best to give you a big discount and help you find a quality machine in our factory!

Attention!!!

You can not pay on Aliexpress, because Aliexpress only support Air transportation with small size.

We will deliver the machine by sea, You can tell me your nearest port, then i will check the shipping

fee for you. You can pay by Trade Assurance, T/T, Paypal and West Union. Any questions, contact

me please!

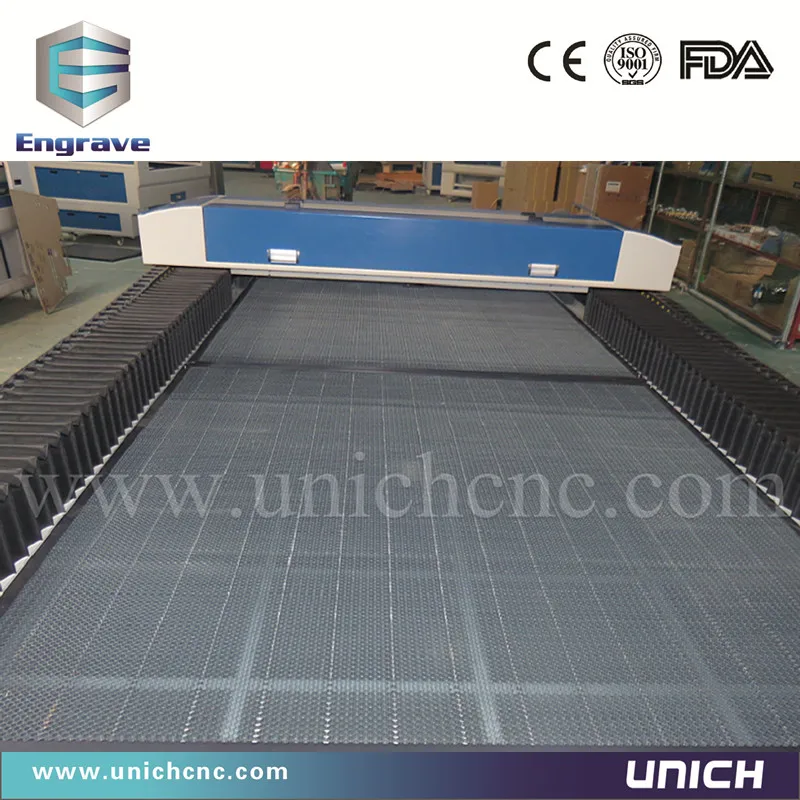

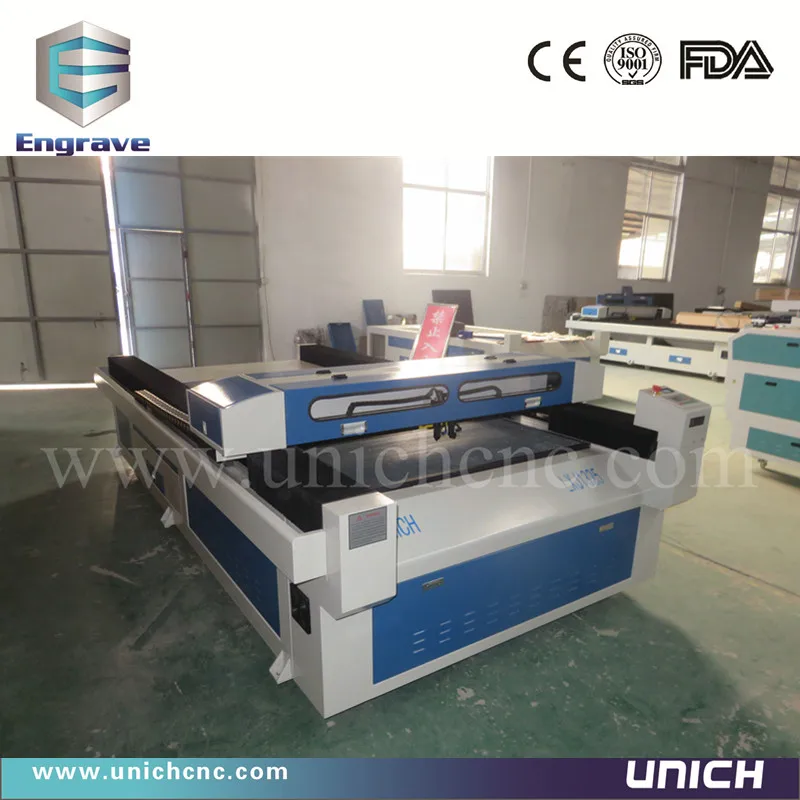

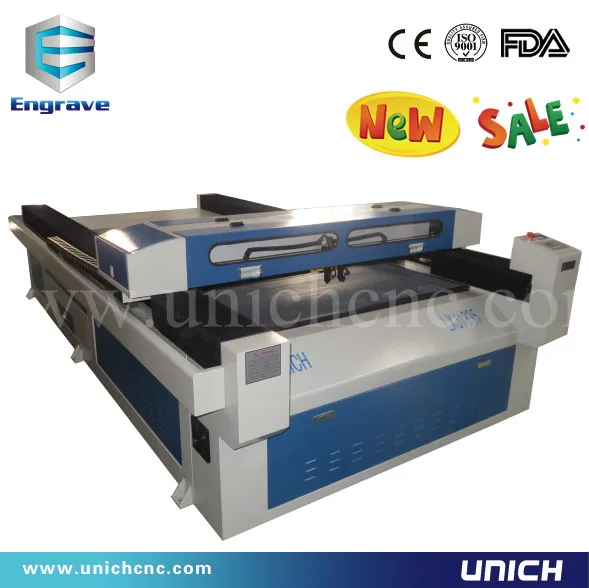

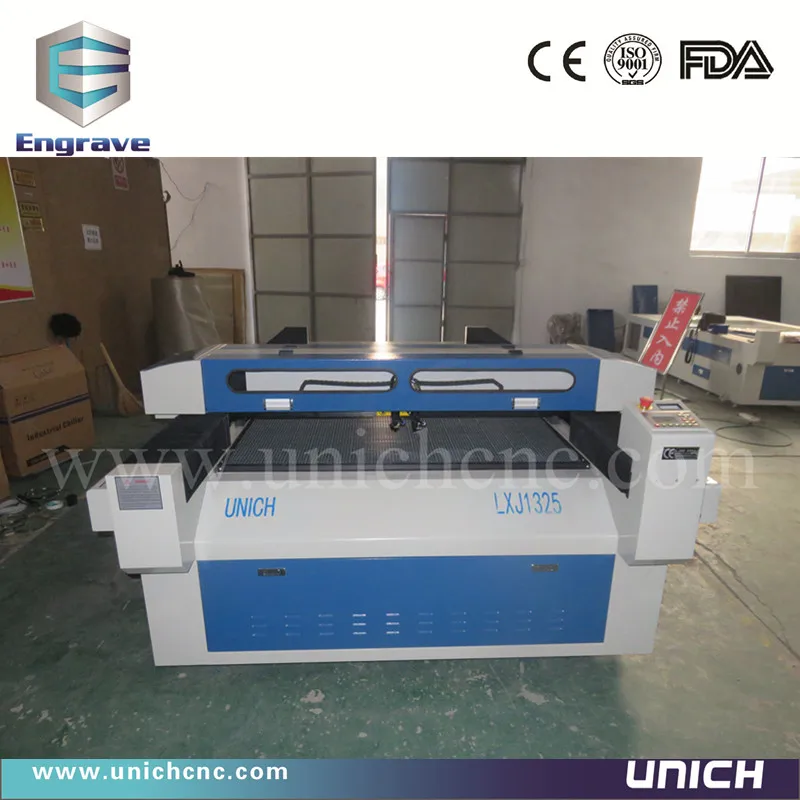

Real machine pictures of cnc laser machine

High configuration of this machine

#Working area is :1300*2500mm
#Beijing Reci laser tube(Best brand laser tube)
#Leadshine 573S15-L motor and 3ND583 driver,

#Original HINWIN rails imported from Taiwan
#Water protection switch
#Original Leetro 6585 control system (1 LCD panel+1 control car board +1 CD software laser cut 6.1 )
#blade table or Honey comb table

#German belt or Shanghai Fulong belt
#1×USB Cable (connecting PC and laser machine)
#Dust collector 550w 1×Air Exhaust Fan(installed inside the machine) with Tube ducts ( for extracting gases from the work area)
#Three Reflection mirror and one focus lens Original imported from Singapore
#Red light point(Red Light Pointer to position Where the Laser light is)
#water pump (To Cool Laser tube and Longer the lifetime of Laser tube)
#1×Air Pump for Air Assist (for blowing off debris and cooling the lens during the laser engrave or cut)
#It supports multiple graphic formats, such as PLT / DXF / BMP / JPG / GIF / PGN / TIF and so on. This machine is equipped with Control System for CorelDraw/AutoCAD and other advance software.This machine is compatible with WIN7, Vista, XP and WIN2000
#We have manual instruction and CD (Guiding Videos) for Software's Installing amd Operateion and Machine's Using and Maintaining.

Optional Parts:

(1) UP/Down working table ( If your material thinkness more than 20mm , you need add this, it can up to 300mm)

(2) Rotary (Mainly For Cylinder/Round objects Engraving or Cutting Very thick materials )(will add 250USD)

(3) Water Chiller (cooling the laser tube , Better than water pump ) : CW3000 , CW5000 , CW5200.

Consumable parts:

#Lens and mirror: 1 set(3 mirror and 1 lens from Singapore)
#Reci: 80w laser tube(The laser tube life time is 8000-10000 hours)
#Soft limited

Parameter of the machine

Model

LXJ1325

Working area

1300mm*2500mm

Laser power

80w/100w/130w/150w/180w

Laser type

CO2 sealed laser tube,water-cooled

Cutting speed

0-500mm/s

Laser Output

1-100%software setting

Resetting positioning accuracy

≤±0.01mm

Power supply

220V/50HZ

Operating temperature

0 - 45°C

Operating humidity

5 - 95%

Min. shaping character

English 1.0 x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

CorelDraw, PhotoShop, AutoCAD,

Driving system

3 phases stepper motor/Servo motor

Control system

Ruida control system

Packing Dimension

3800*2230*1320mm

Gross Weight

820kg

Main parts of the machine

Optional parts

Application of cnc laser machine

Samples disply

Packing and shipping

Our best after sale service

1)2 years for the whole machine.

2)8-10 months for laser tuber; 3 months for lens and mirror .

3)Detaile manual and video to guide how  to use the machine and maintenance .

4)For important parts like the control card, we need you send the broken one to us and we reback

you a new one in warranty period.

5)If you have problems, we can communicate by skype or other ways .

6)If it is necessery,engineers available to service machinery overseas.

Company informations and certification

Jinan UNICH Machinery Co.,Ltd is a professional cnc equipment modernized company, which products have covered  woodworking ,  advertisement decoration,stone operation and other various industries. It takes the "quality, integrity, innovation, service"spirit, always adhere to the customer demands as the guide,it was well welcomed by almost all customers with its high-quality product and good after-sale service.
