UNICH new type stronger cnc machine/cnc wood router for sale

You can not pay on Aliexpress, because Aliexpress only support Air transportation with small size.

  We can produce different size according to your requirment. What's more, our machine are high configuration and best after sale service, so more and more customers choose UNICH, if you are interested in our machine, pls contact Abby, my Skype is export02_20, my WhatsApp is 008613012996942, welcome to visit our factory and hope we will make a nice cooperation!

Other different size cnc router machines you can choose:

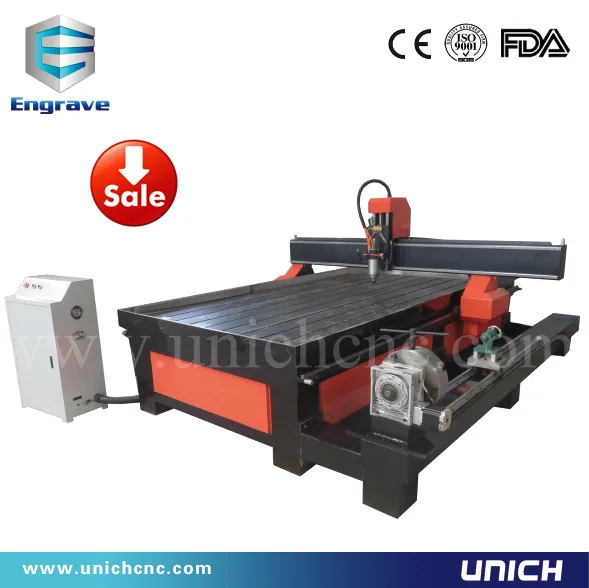

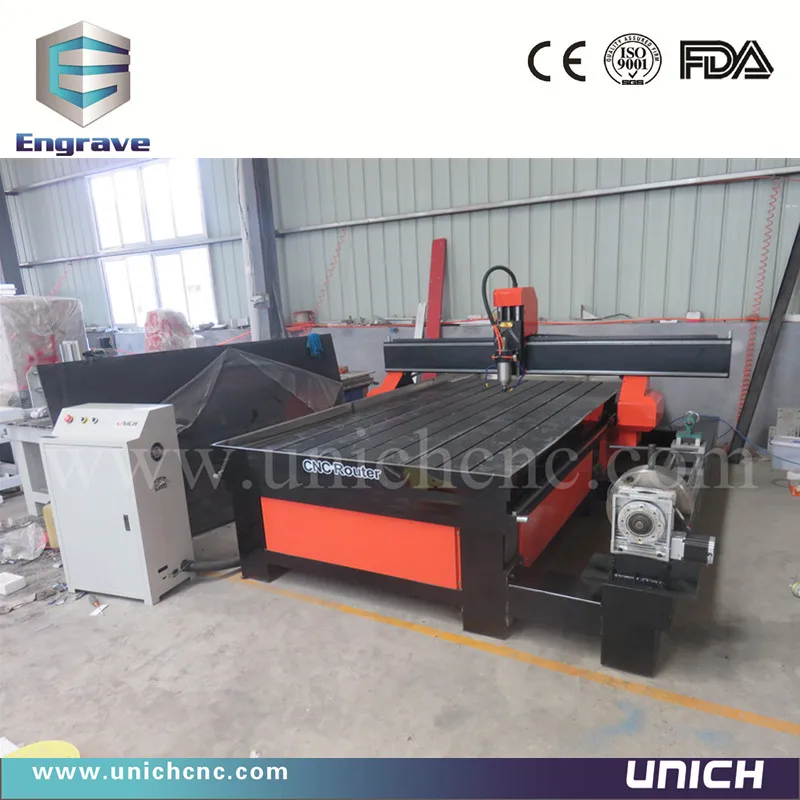

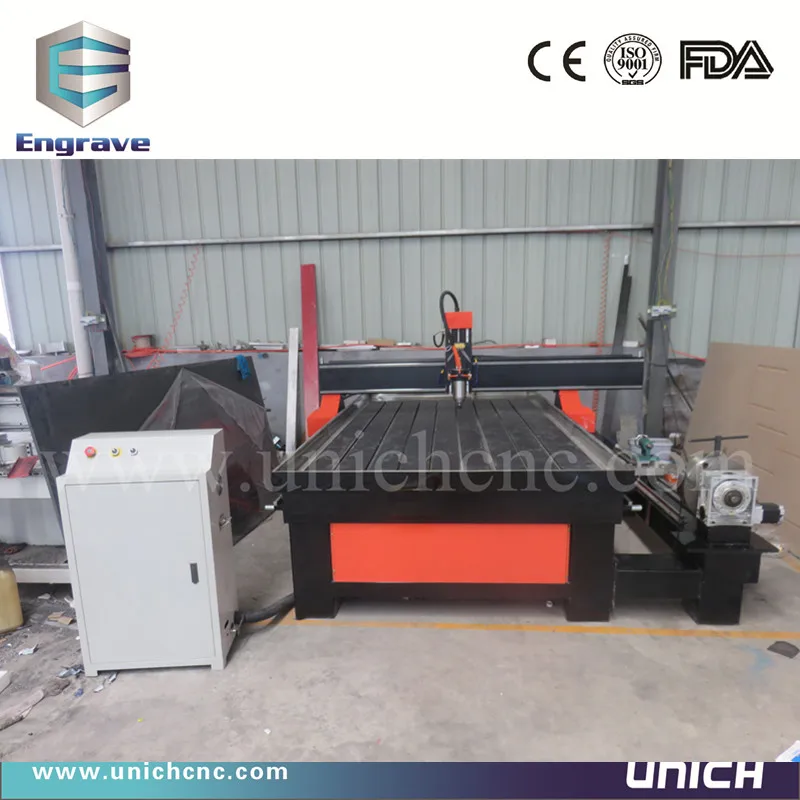

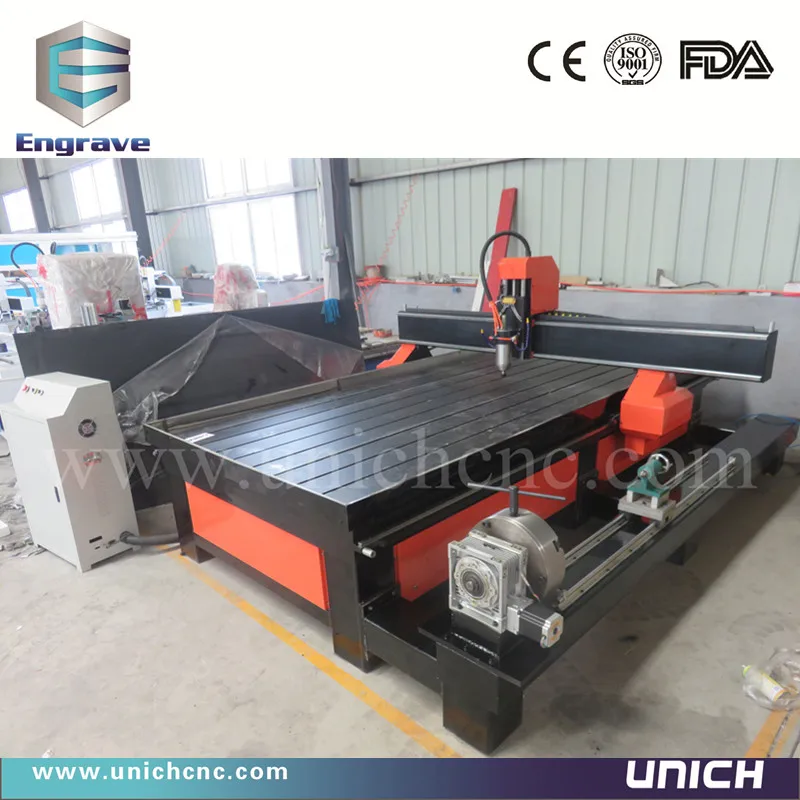

Machine real pictures' disply:

High configuration:

#Working area:1500*3000mm

# New Type Design For the High Stability
#Newest version nc-syudio control system
#Z axis Taiwan Original TBI Ball screw transmission
#X Y axis helical gear transmission
#Taiwan Imported Best bearing holder
#Taiwan Linear Square Hiwin rails

#Chinese water-cooling spindle 3.0KW
#Fuling inverter 3.7KW
#Stepper motor 450B ( also have servo moter )
#leadshine driver M860
#Soft limited switch
#Hard limited switch
#ATC Tool sensor
#Filter in control box
#Tool box

#Frame: The thinkness of body steel is 8 mm

#Cast steel moter Box

Parameter:

Model:

UNICH-LXM1530

Body material

Whole cast iron

Transmission

XY-axis gear transmissio, Z-axis ball screw transmission

X,Y-axis working area

1500*3000mm

Cutting thickness of material

≤40mm

Max. travelling speed

8000mm/min

Engraving speed

0-6000mm/min

Mechanical precision

0.01mm

Compatible Software

Type 3 software , Artcut software , Artcam software

Max. Power consumption

3.0KW

Power source

AC220/50Hz 380/60Hz

Driving system

Stepper motor

Memory

Without or DSP

Spindle

 3.0KW or 4.5KW(100mm)variable speed , water-cooled motor

Spindle speed

0-24000rpm

Blade diameter

3.175mm,4mm,6mm

Control system

NC-studio or DSP(USB interface)

Command

G code, Uoo, mmg, plt, HPGL

Item

Option 1

Option 2

Option  3

Option  4

Motor Mode

step motor

servo motor

Customize according to your needs

Spindle

air cooled

water-cooled

Spindle Power

2.2kw

3kw

800w,1.5kw,4.5kw

Customize according to your needs

Spindle No.

1

2

3

Guide Rail

linear

square

Table Structure

vacuum table

T-shot table

Combination of T-shot &Vacuum table

OperationSystem

DSP

Nc-studio

March 3

Customize according to your needs

Working area

1500*3000

1300*2500

2000*3000

Customize according to your needs

Machine' main parts disply:

Application:

1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5. Architectural models: engraving fine window, fencing and wall patterns, etc.
6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
7. Label: engraving character, number, and other pattern on label for products and on product directly.

Samples disply:

Packing and shipping:

Guarantee & After-sale Service

1.1

24 months for the whole machine. Within 24 months under normal use and maintenance, if

something is wrong with the machine, you will get spare part for free. Out of 24 months, you

will get spare parts at cost price. You will also get technical support and service all the lifetime.

1.2

Technical support by phone, email or whatsapp/Skype around the clock.

1.3

Friendly English version manual and operation video CD disk.

1.4

Normal machine is properly adjusted before dispatch. You will be able to use the machines

immediately. You will be able to get free training advice towards our machine in our factory.

Payment Terms

1.1

A:T/T:30% T/T deposit, 70% before shipping. This is the most
convenient payment terms for international trade.

1.2

B:Trade Assurance of alibaba. It is a third party payment terms.
With Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount

1.3

C:Western union, paypal and other kinds of payment we can consider if acceptable for us.

Why choose UNICH?

1.We are the factory of cnc laser for 12 year ,we believe we can produce a good quality machine for every of our customer.

2.Quality is the life of our factory, We don't sell the lowest price machine , but we sell the best quality machine.

3.While we also supply free after-service forever,We have very experience engineer 24 hours online, so any doubts, just us know,we will give you solutions in 10 minutes.

4.We are the few supplier in china consider quality is First, If you only want the lowest price machine not consider the quality, maybe we are the the good choice, Because we need a long cooperation not only once.
