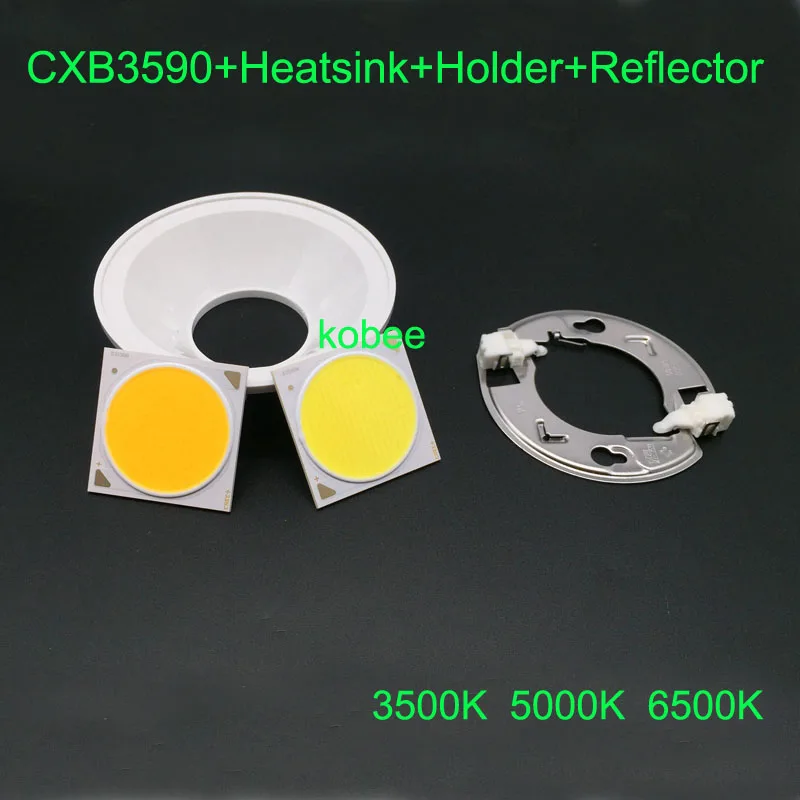

CREE CXB3590 COB LED Grow Light Full Spectrum with Ideal holder 50-2303CR Heatsink Meanwell driver reflector | Освещение

CREE CXB3590 COB LED Grow Light Full Spectrum with Ideal holder 50-2303CR Heatsink Meanwell driver reflector | Освещение

---- Ideal holder:50-2303CR :

Standard pin fin heat sinks are relatively new derivatives of the Aluminum heat sink. Unlike aluminum extrusion heat sinks, which contain an array of vertically oriented pins, Standard pin fins features pins that gradually bend outward. Curving the pins in this way increases the spacing between the pins and allows surrounding air streams to enter and exit the pin array more efficiently without sacrificing surface area.

The impact of increased pin spacing on heat sink performance is magnified at lower air speeds because weak air streams have less power to penetrate the array of pins. In low air speed environments and in natural convection, the increased spacing between the pins reduces the heat sink's thermal resistance by up to forty percent versus a aluminum extrusion profile heat sink. As a result, pin fins are recommended for low and moderate airspeed environments and for natural convection cooling.

Compatible with Citizen CLU-048 COB :

1.Pre drilled for Citizen CLU-048 with Ideal Holder 50-2204CT (not included)
2.Pre drilled for reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW (not included)
3.Pre drilled for Citizen CLU-048 with BJB Holder 47.319.2030.50, 47.319.2033.50, 47.319.2314.50, 47.319.2315.50 and reflector F13839_ANGELINA-XW(not included)"
4.Pre drilled 100mm Glass lens with 112mm diagonal mounting positions. (not included)
5.4x M3 screw positions on outer perimeter and 2x M3 screw positions on sides for mounting heatsink

Compatible with Bridgelux Vero 29 COB :

1.Pre drilled for Bridgelux Vero 29 (not included)
2.Pre drilled for reflector adapter LEDiL C13584_CLAMP-VERO29 and LEDiL F13838_ANGELINA-XW (not included)
3.Pre drilled 100mm Glass lens with 112mm diagonal mounting positions. (not included)
4.4x M3 screw positions on outer perimeter and 2x M3 screw positions on sides for mounting heatsink

Compatible with Cree CXB 3590 COB :

1.Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR (not included)
2.drilled for reflector adapter 50-2300AN and LEDiL F13838_ANGELINA-XW (not included)
3.Pre drilled 100mm Glass lens with 112mm diagonal mounting positions. (not included)
4.4x M3 screw positions on outer perimeter and 2x M3 screw positions on sides for mounting heatsink

.
